STURDY 2-CYLINDER OSCILLATING ENGINE

By Julius de Waal

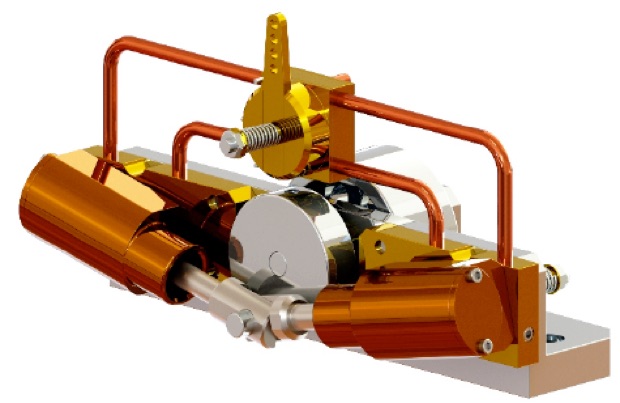

Julius draws up a sturdy two cylinder ‘boxer’ oscillating steam engine which makes an attractive working model.

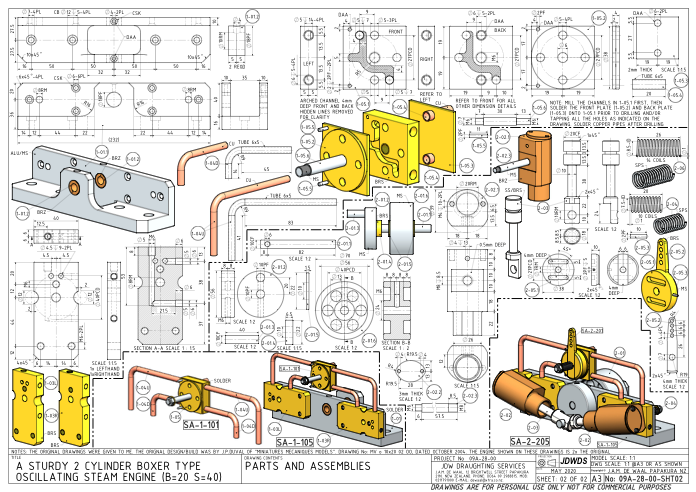

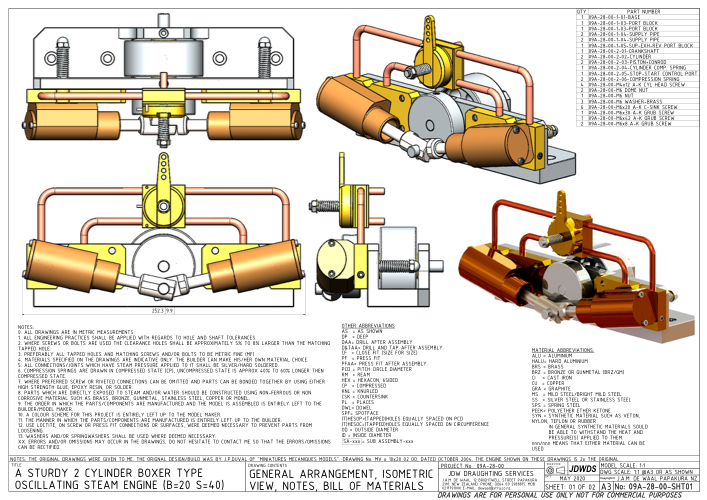

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.


Single cylinder engine here.

V-4 engine here.
