3-CYLINDER OSCILLATING

STEAM ENGINE DRAWINGS

By Julius de Waal

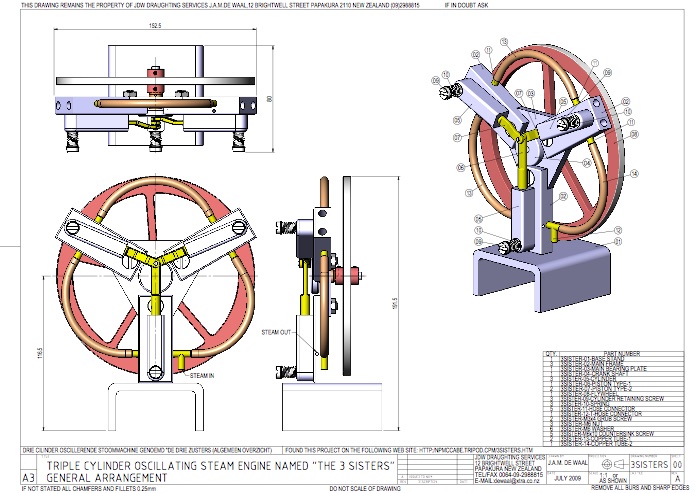

An interesting and unusual three-cylinder oscillating steam engine with drawings given the de Waal treatment. A straightforward design to appeal to the steam engine enthusiast.

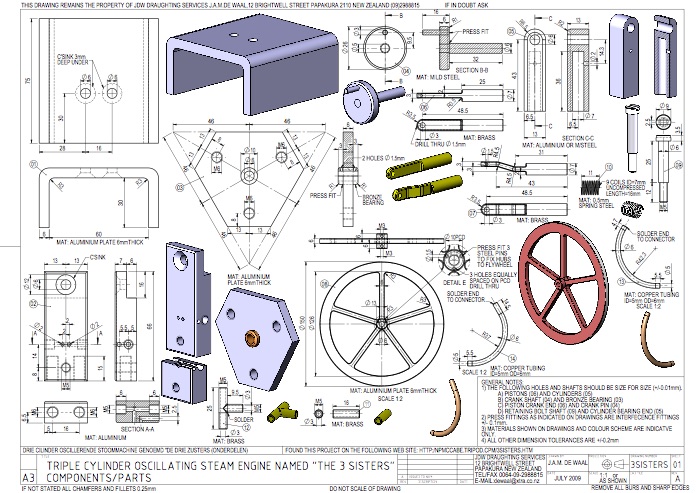

As always, readers can download the drawings for their personal use only. Click on drawings to download.
