SIMPLE BEAM ENGINE
SMALL VERSION
By Julius de Waal
SIMPLE BEAM ENGINE
SMALL VERSION
By Julius de Waal

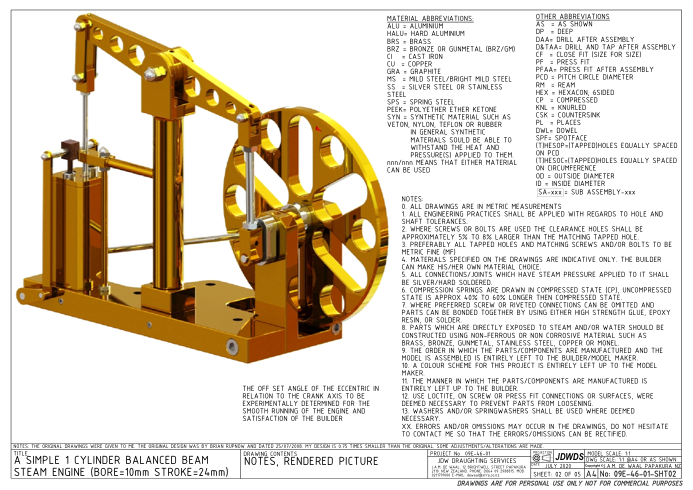

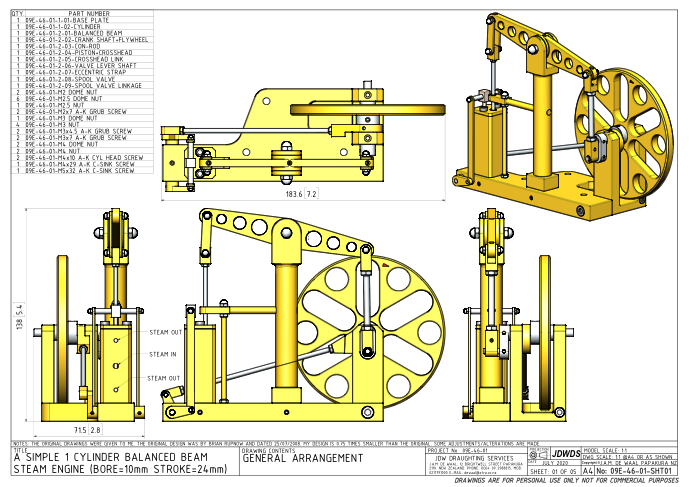

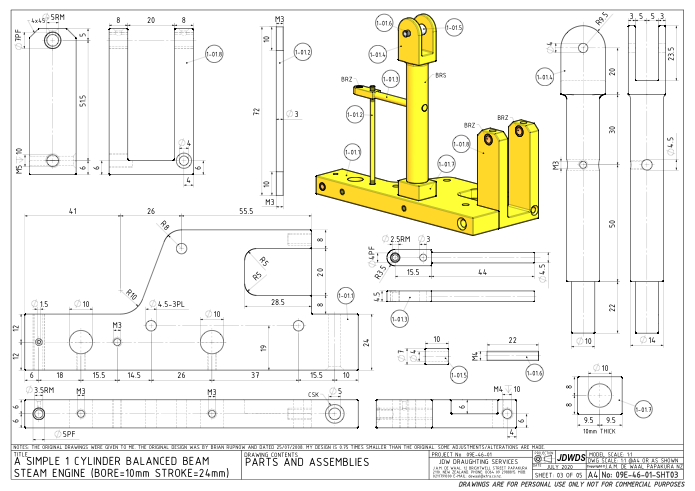

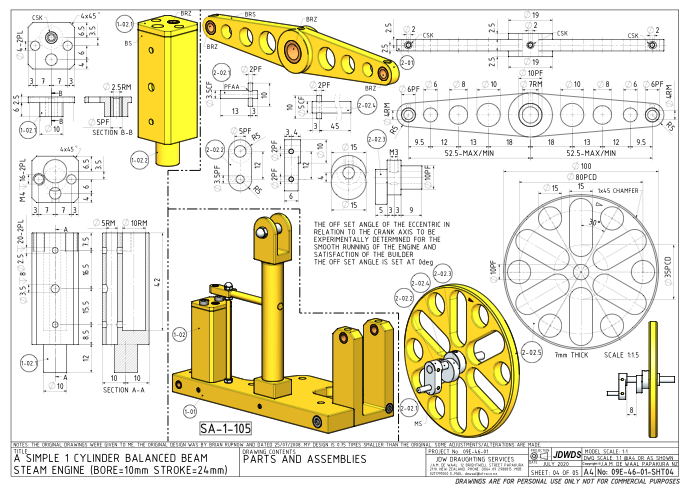

Drawings from Julius for a small version of Brian Rupnow’s simple single cylinder balanced beam steam engine. No castings needed (unless you wish to use a commercial flywheel casting).
Click on drawings to download.
For personal use only.
Although drawings reproduce well on this website, they are even better as saved downloads.
