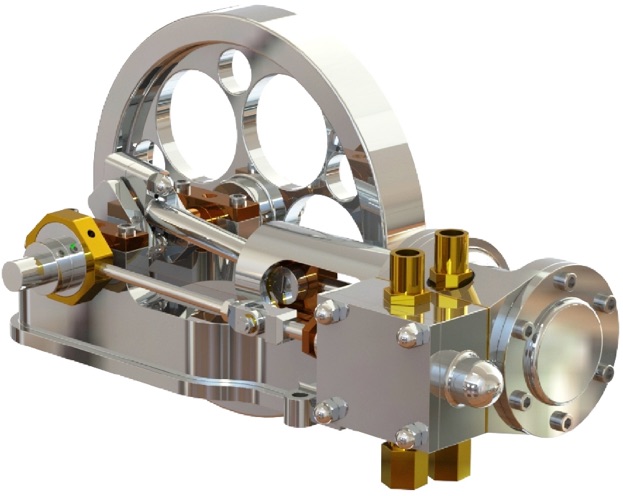

HORIZONTAL SINGLE CYLINDER STEAM ENGINE
By Julius de Waal
Julius’ take on a classic, highly popular single cylinder horizontal steam engine in simple non-reversing form.

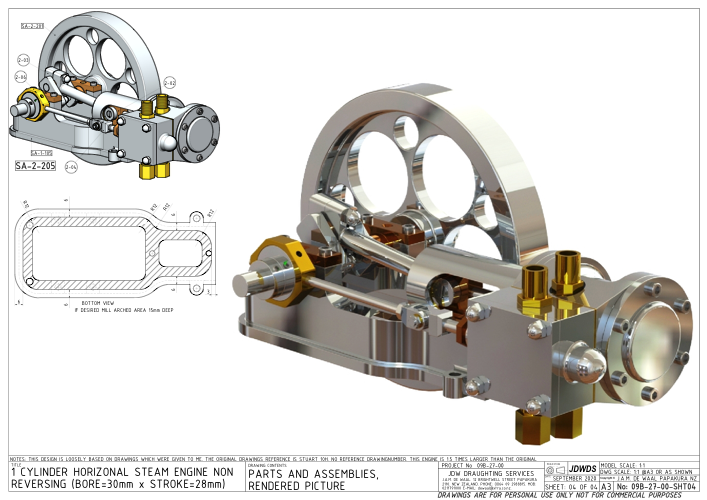

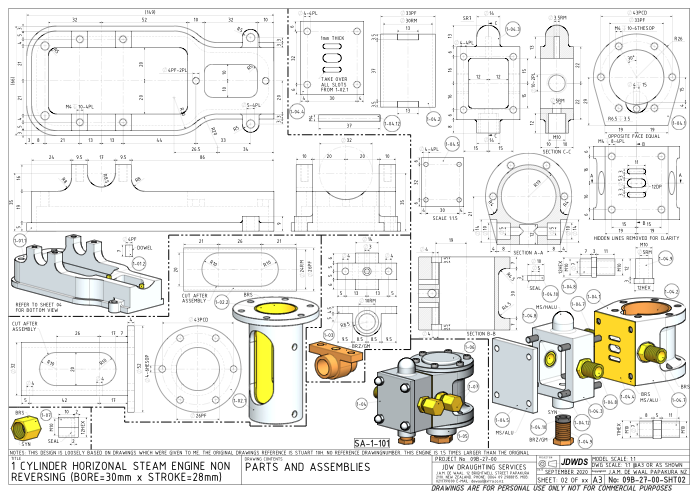

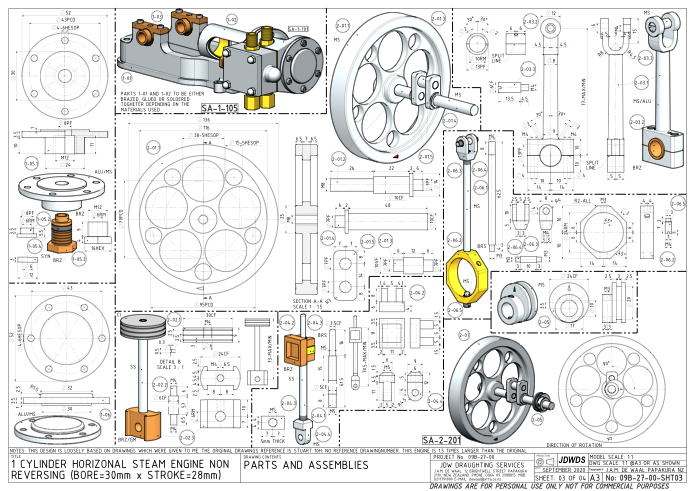

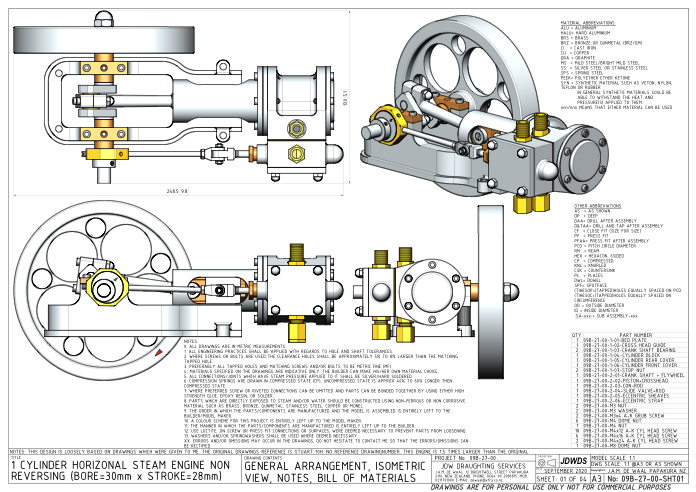

Click on drawings to download.
For personal use only.
Although drawings reproduce well on this website, they are even better as saved downloads.
