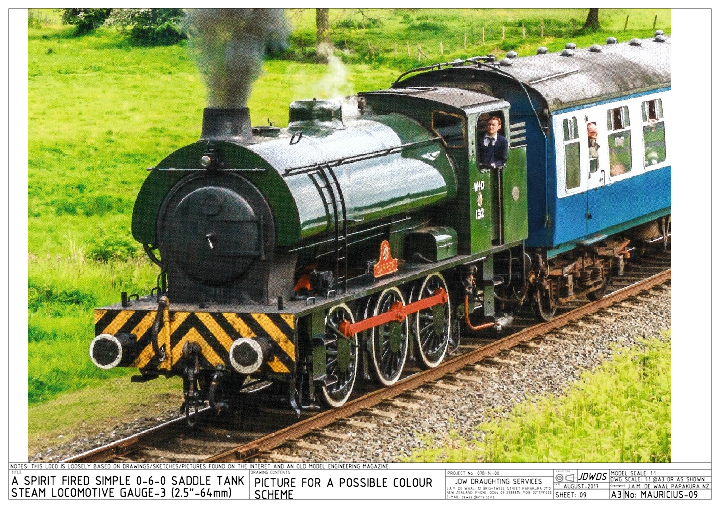

MAURICIUS 2.5” HUNSLET TYPE LOCO
Part 1 of 2 by Julius de Waal

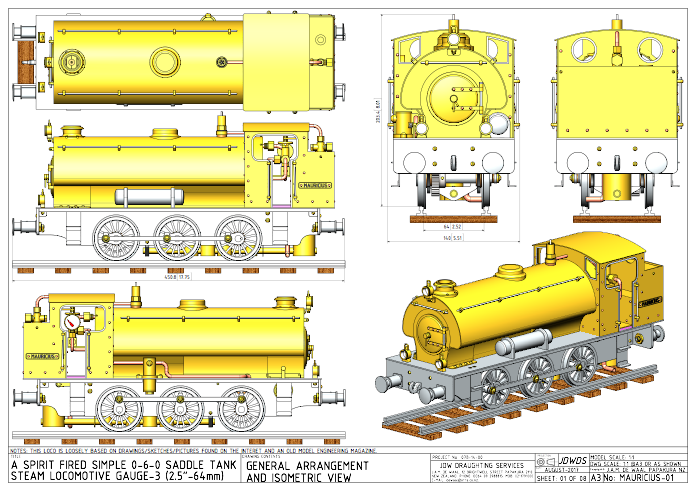

CLICK ON DRAWINGS TO DOWNLOAD - FOR PERSONAL USE ONLY. FOR INDIVIDUAL COMPONENT DRAWINGS, DOWNLOAD AND SELECT ‘DRAWING VIEW’

Part two here
