MAUDLSAY TWIN CYLINDER MARINE STEAM ENGINE
By Julius de Waal
MAUDLSAY TWIN CYLINDER MARINE STEAM ENGINE
By Julius de Waal

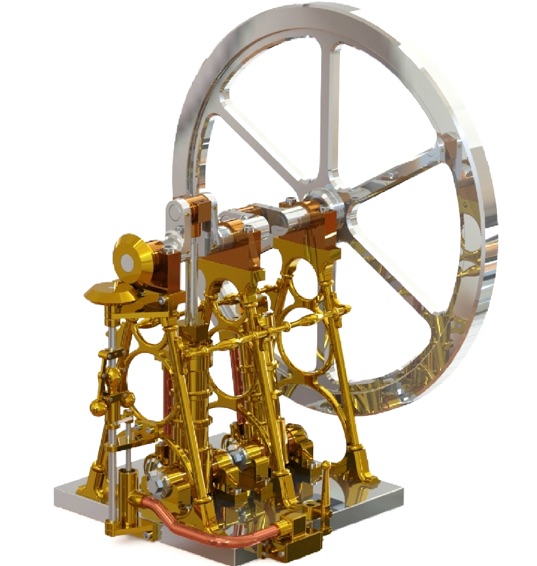

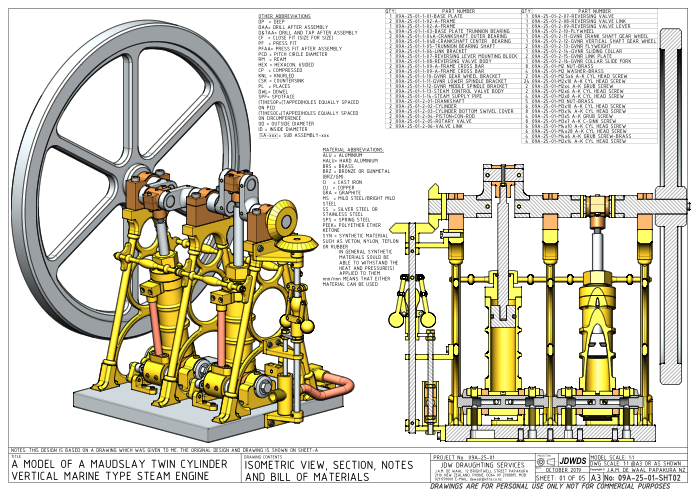

Latest from Julius is a super model of a twin cylinder marine-type Maudslay engine in metric which lends itself to a mainly fabricated construction, and a flywheel that can be machined on a Myford ML7.

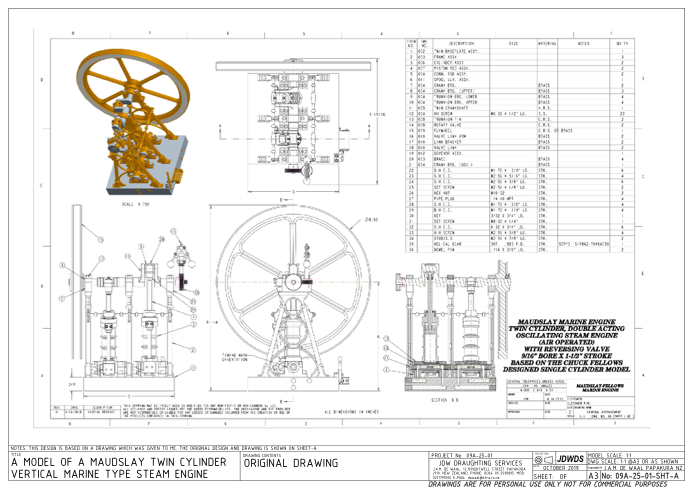

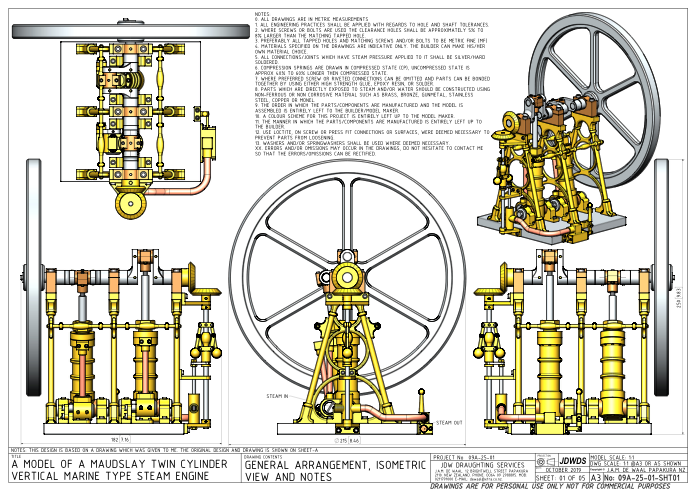

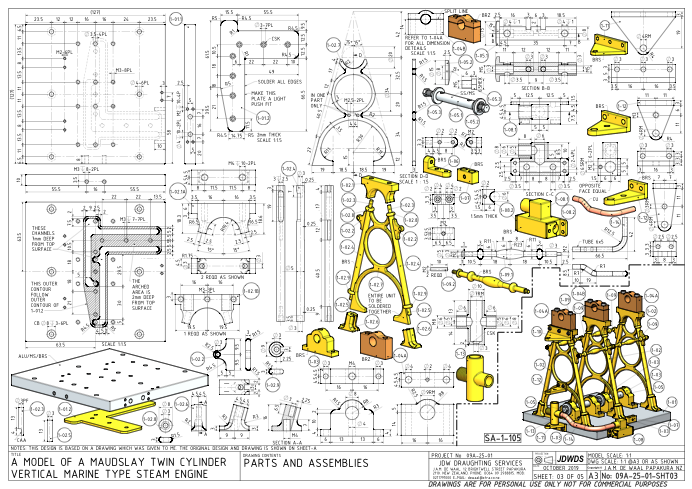

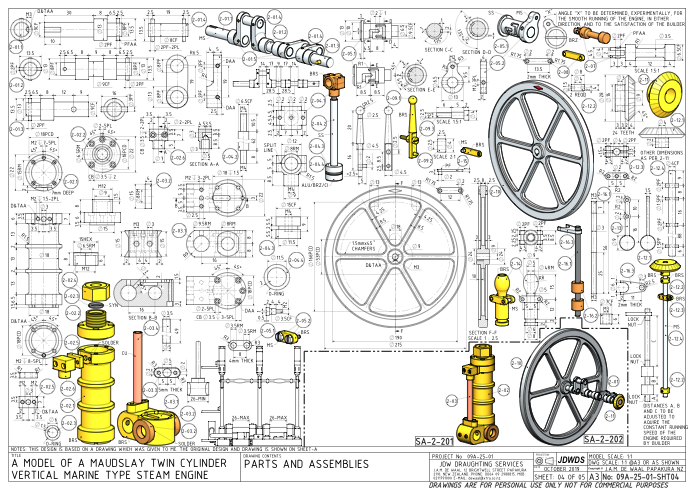

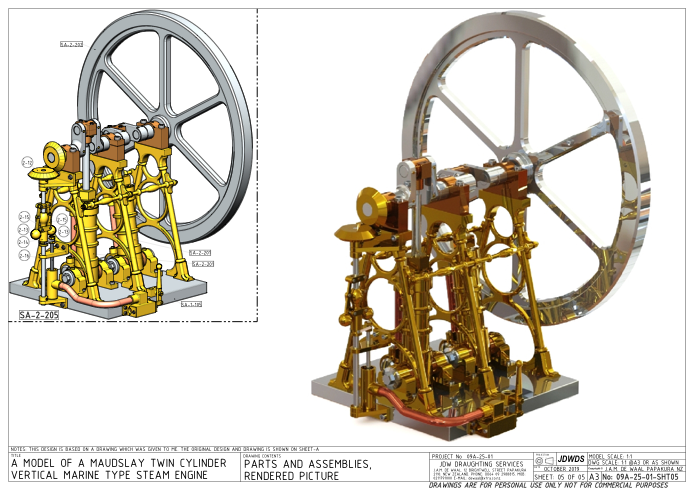

Click on drawings to download. For personal use only.
Although drawings reproduce well on this website, they are even better as saved downloads.
