STURDY OSCILLATING ENGINE

By Julius de Waal

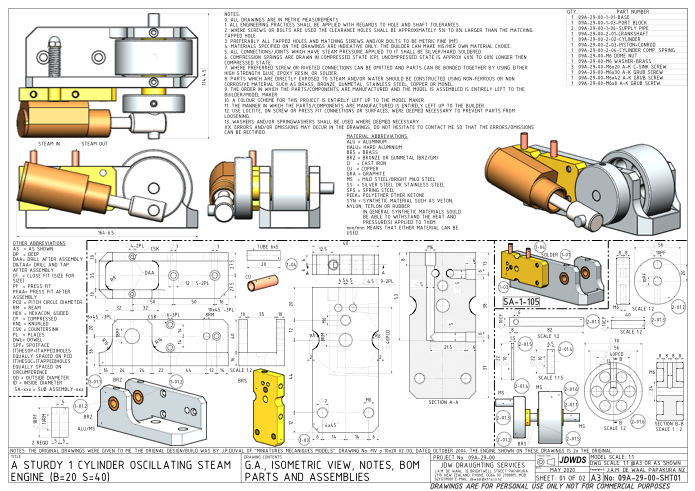

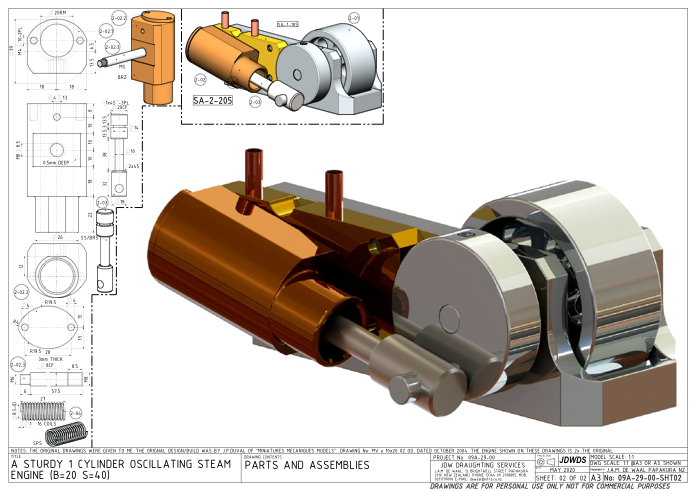

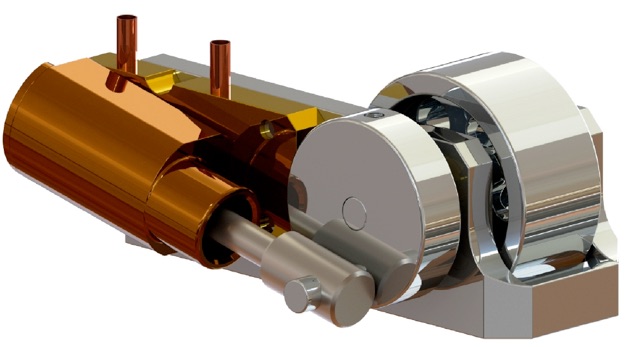

Julius draws up a simple single cylinder oscillating steam engine which makes an attractive working model.


Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.


two-cyl engine here.

V-4 engine here.
