WESTBURY’S  PADDLE STEAMER ENGINE

By Julius de Waal

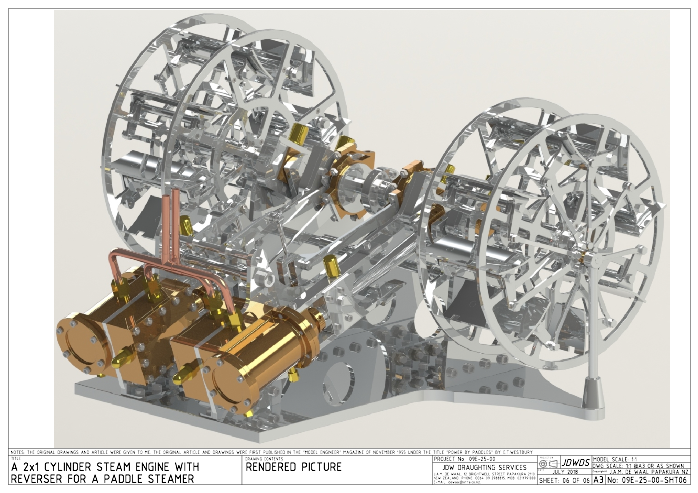

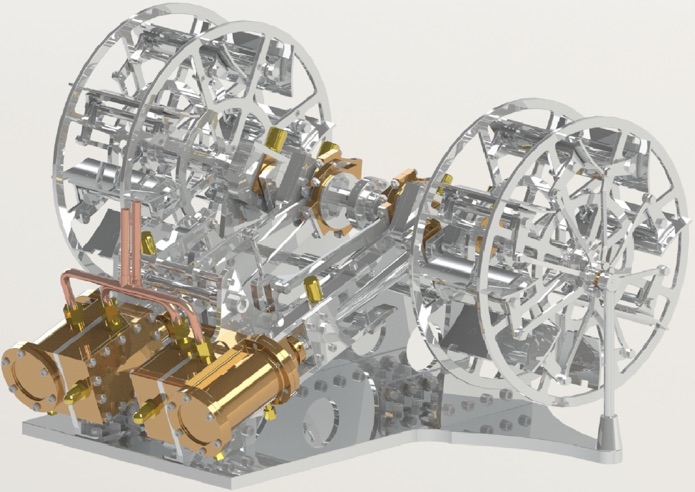

Back in the 1950s the great Edgar T Westbury produced drawings for a diagonal paddle steamer twin cylinder engine with Stephenson’s valve gear coupled to the paddle wheels. Now Julius has re-visited the design in metric and to a larger scale. Designed for fabrication rather than castings.

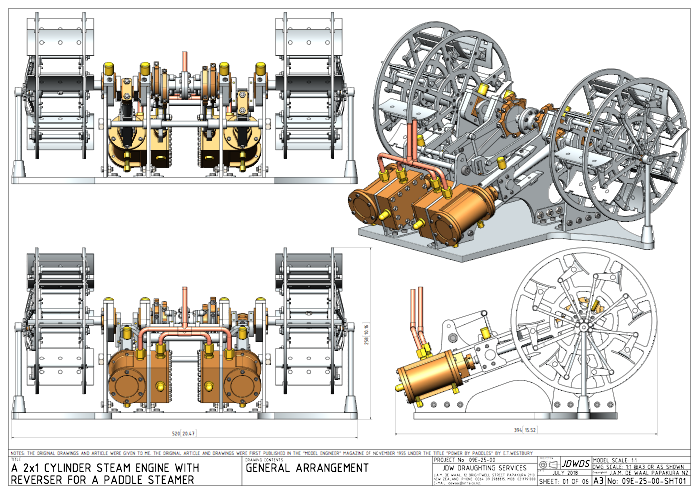

Click on drawings to download - for personal use only.

For imperial drawings see: https://www.sarikhobbies.com/product/diagonal-paddle-engine-m9/

https://www.sarikhobbies.com/model-engineer-builder/
