SIX CYLINDER RADIAL STEAM ENGINE

Julius de Waal and Rafel Ayensa

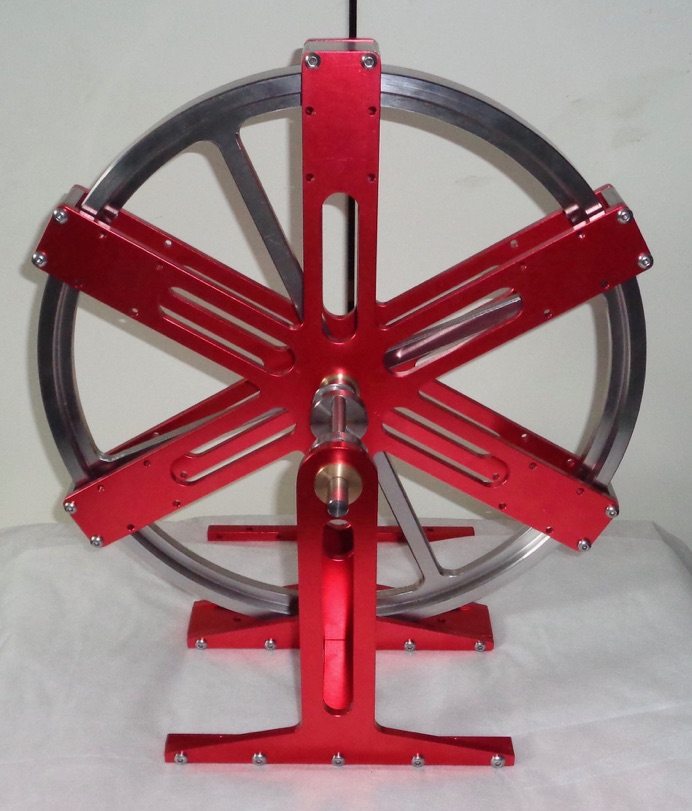

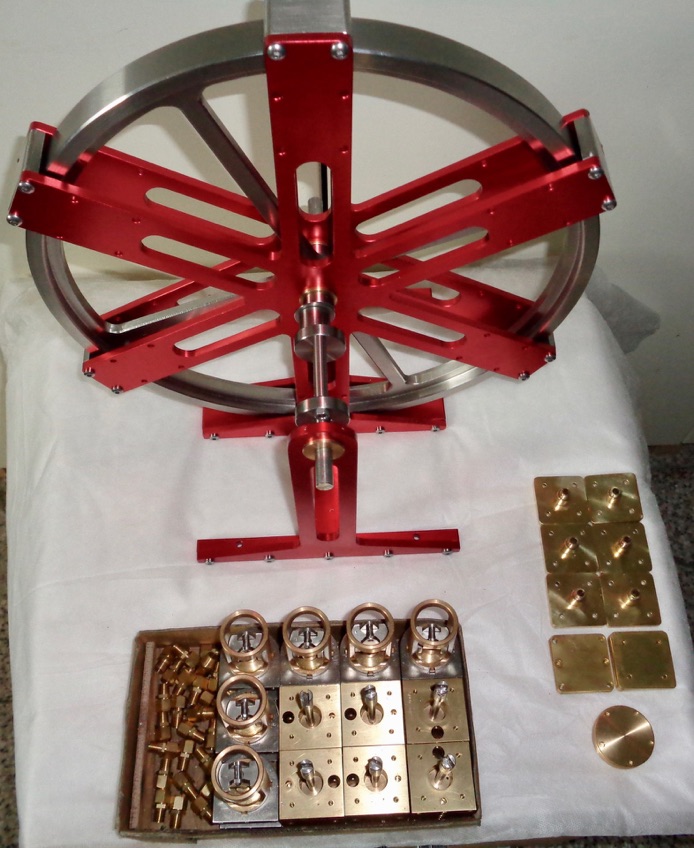

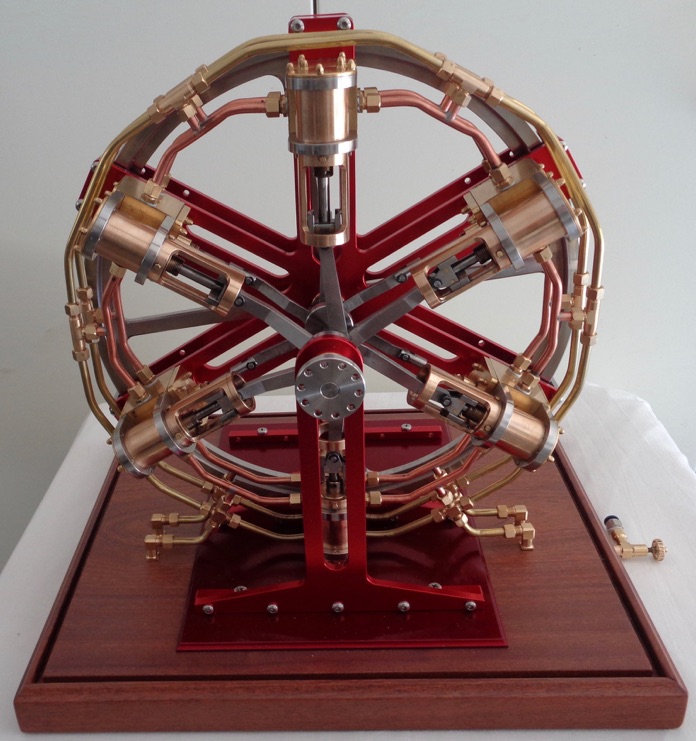

A super design from Julius is his six cylinder steam engine with its fascinating motion. It is one of the successful designs that have been made into working models by Rafel Ayensa which can be seen running in the video above an in the photos below.

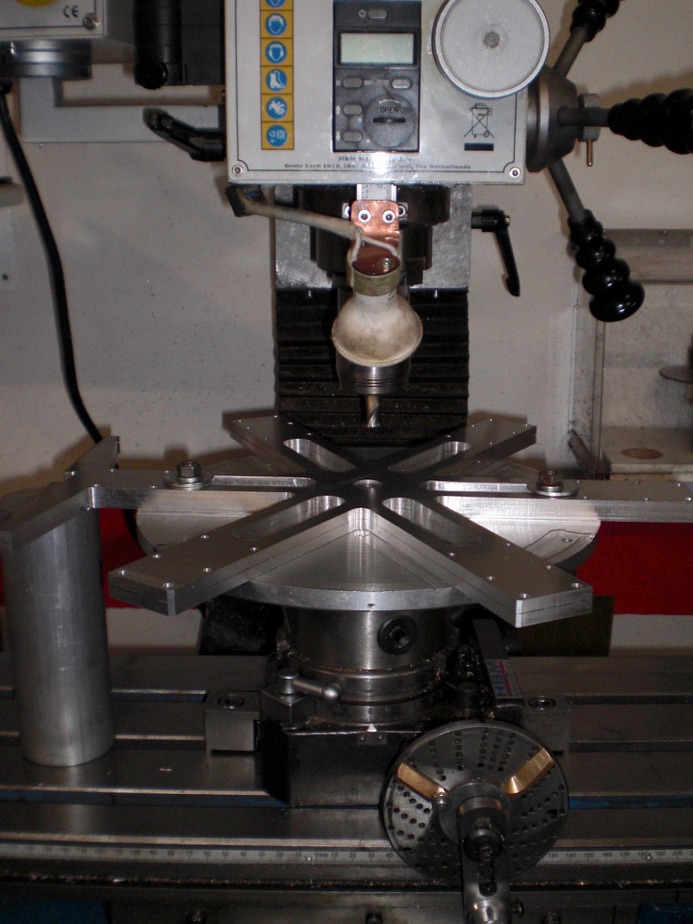

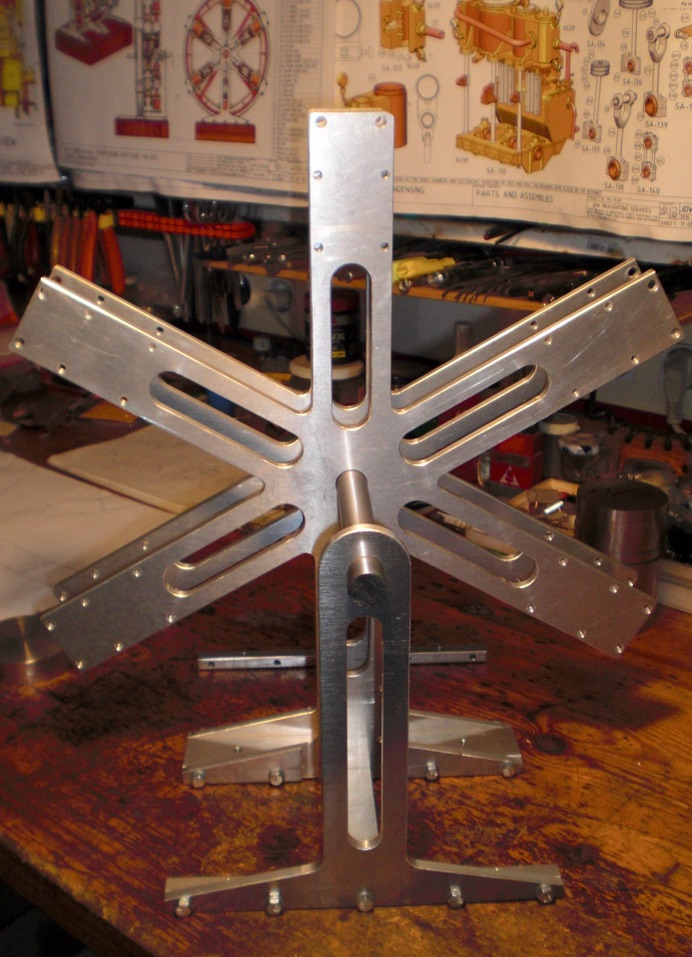

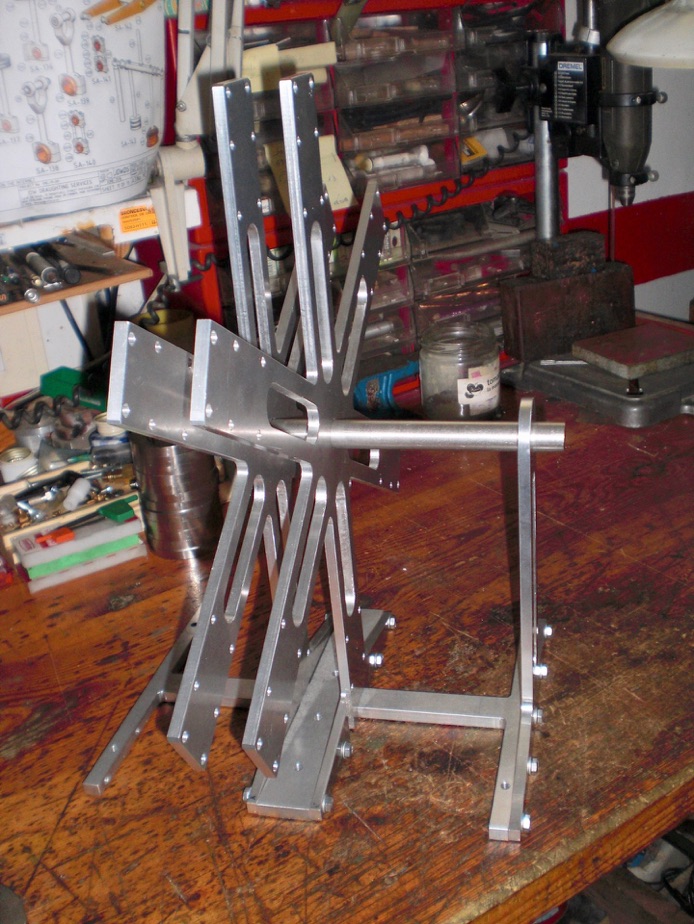

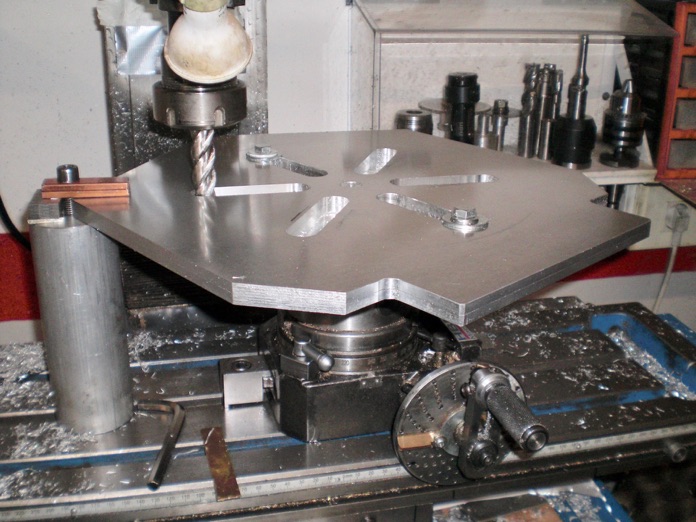

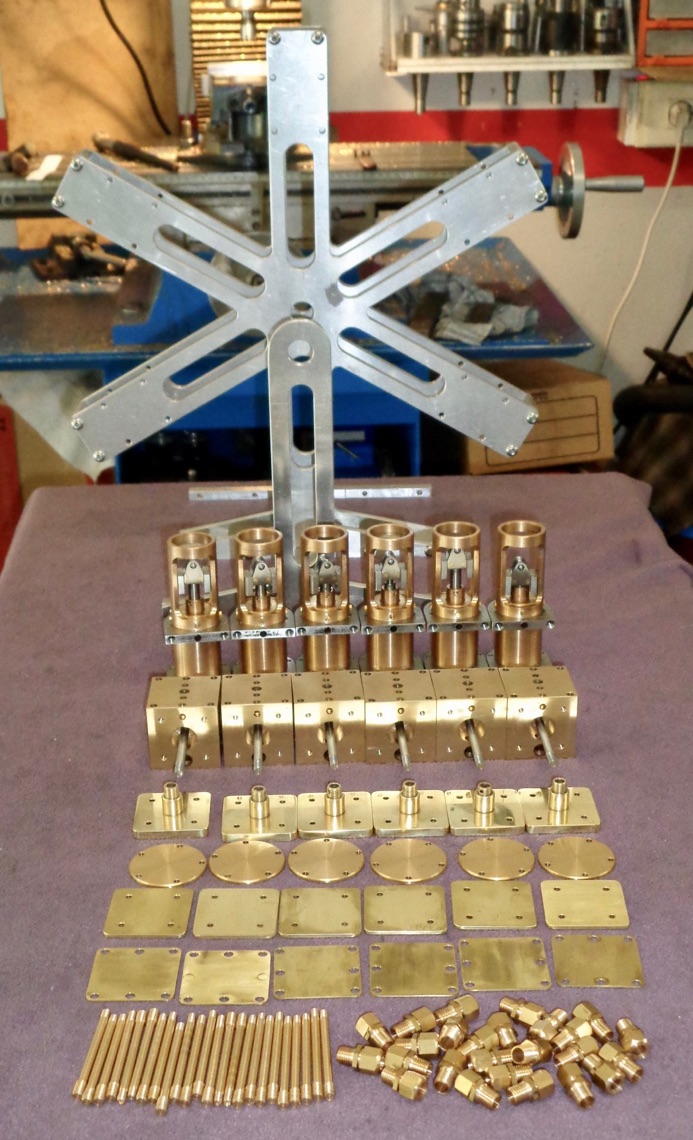

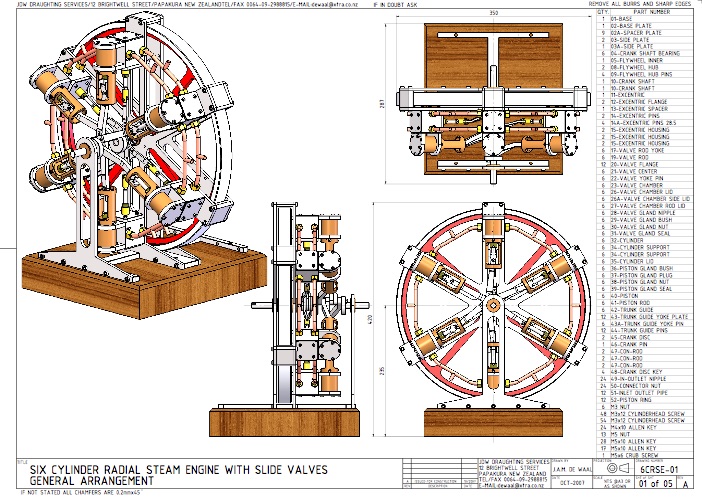

We include Julius’ drawings below.


Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
