BALANCED ARM

BEAM ENGINE

By Julius de Waal

Julius turns his attention to an attractive single cylinder balanced beam engine of fabricated construction.

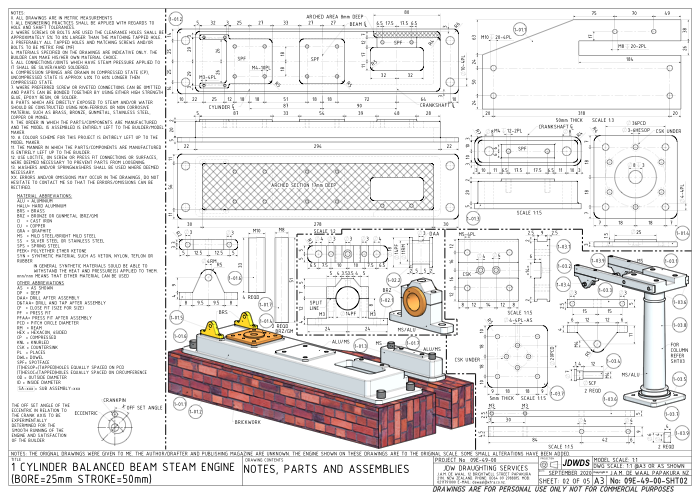

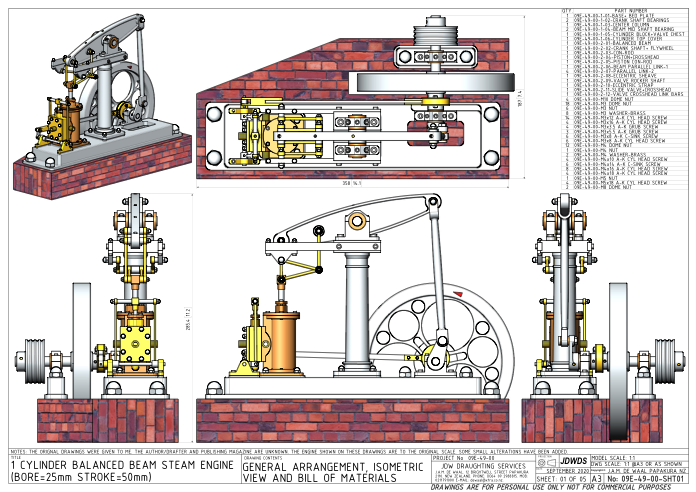

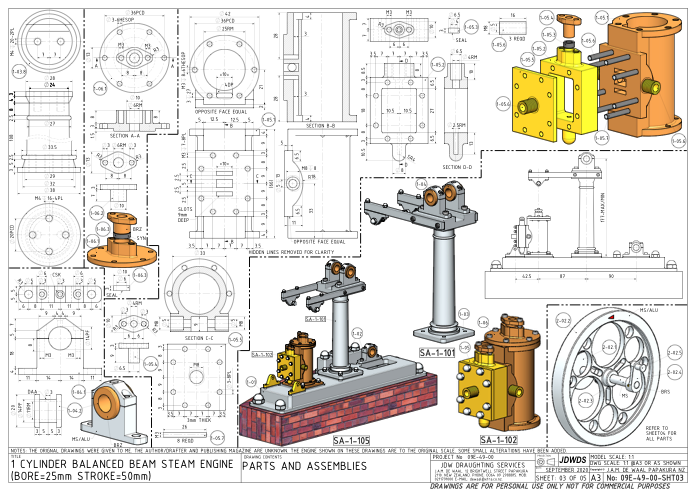

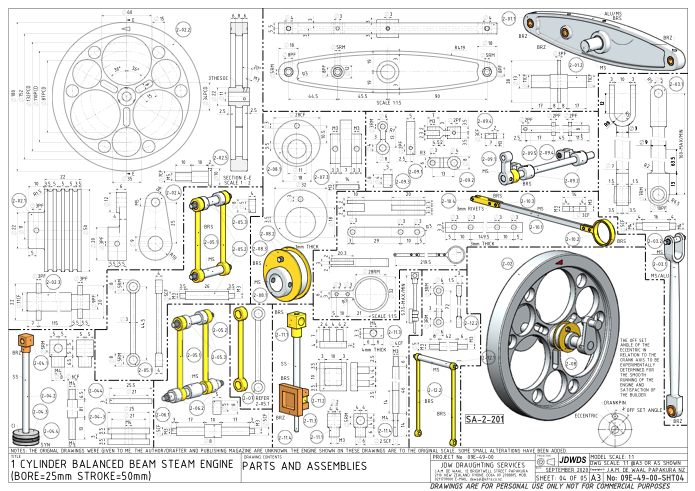

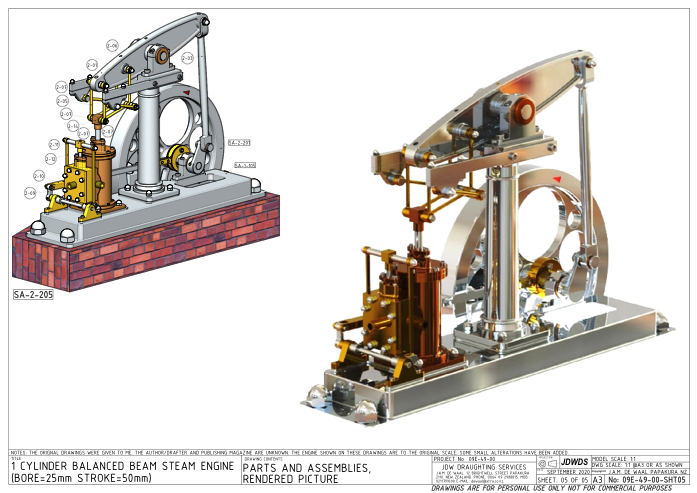

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
