SIMPLE BEAM ENGINE

LARGE VERSION

By Julius de Waal

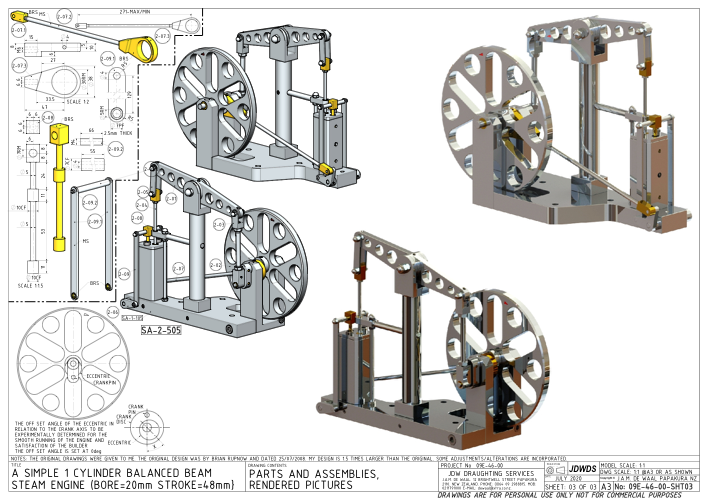

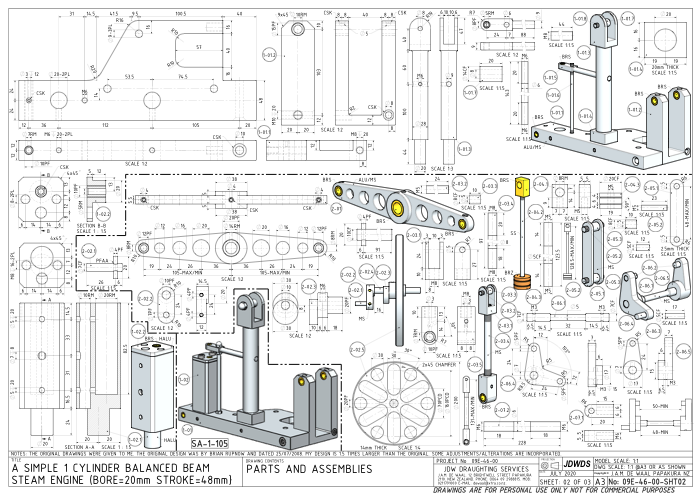

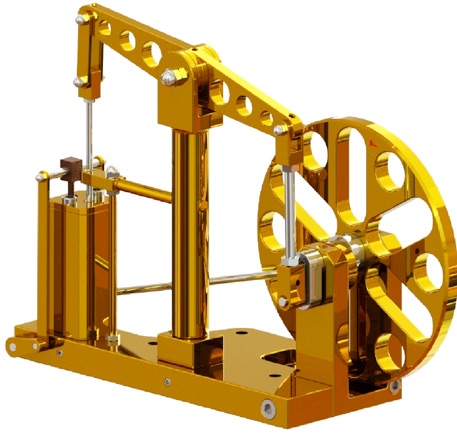

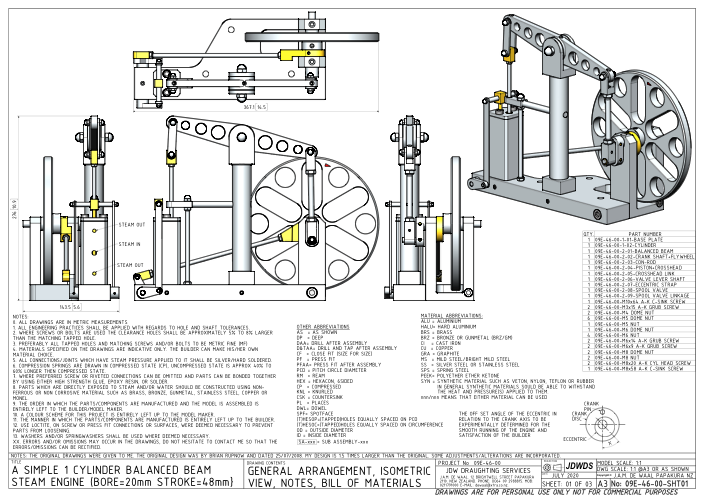

Drawings from Julius for a large version of Brian Rupnow’s simple single cylinder balanced beam steam engine. No castings needed unles you wish to use a commercial flywheel.

Small version here.


Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
