CLAYTON SHUTTLEWORTH  ENGINE

By Julius de Waal

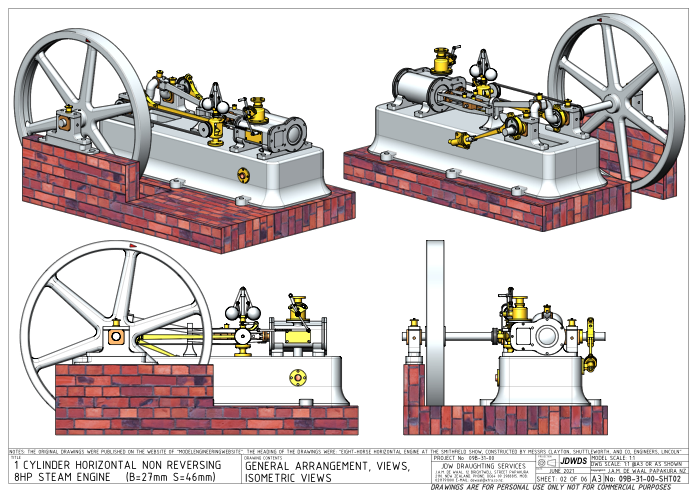

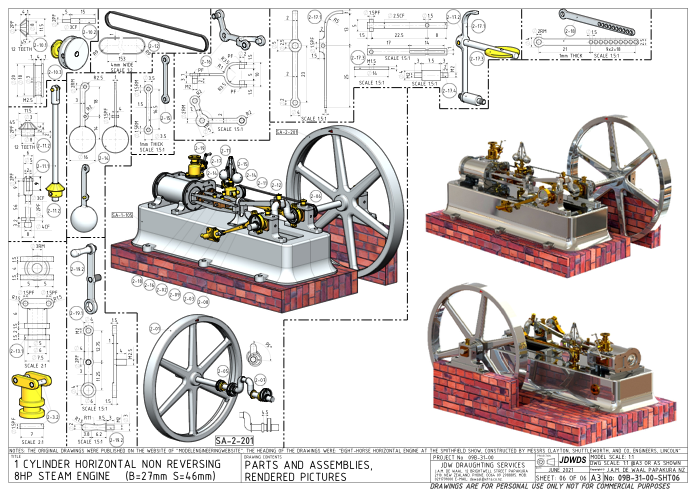

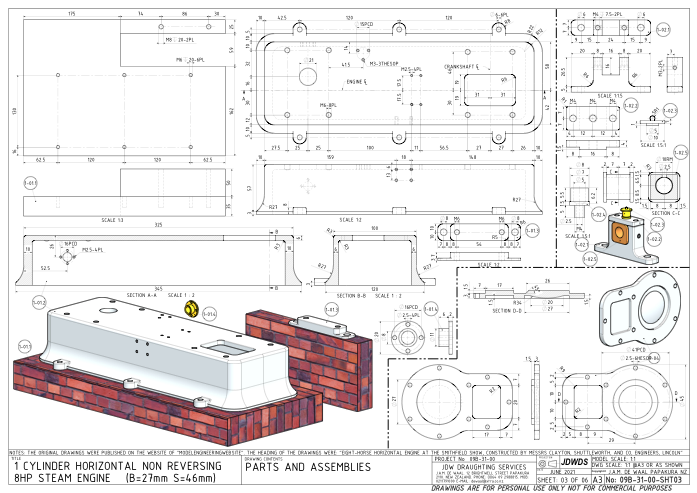

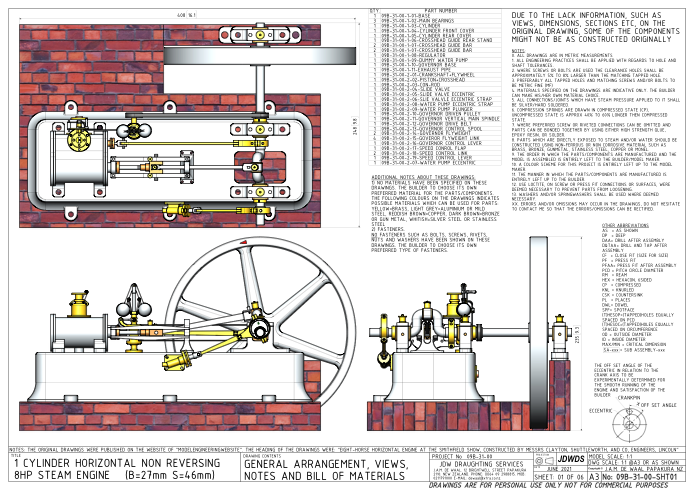

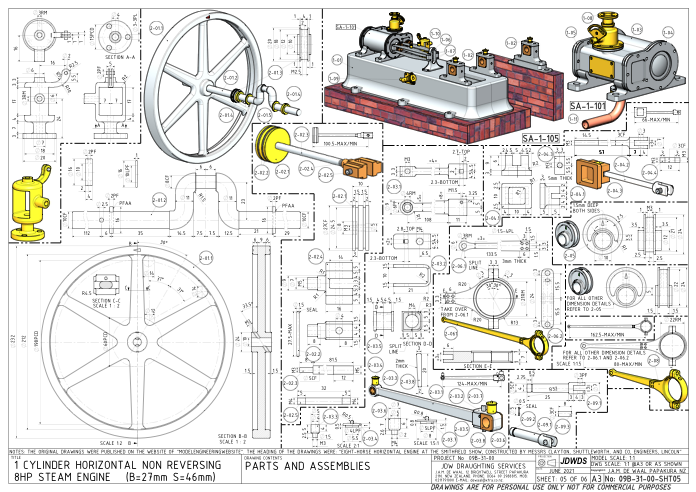

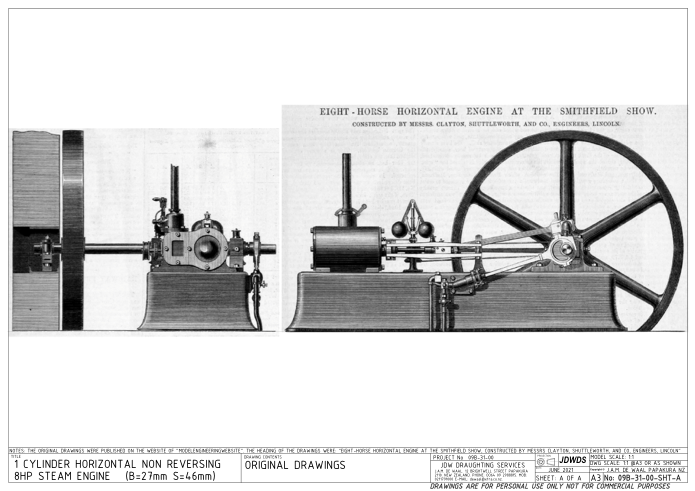

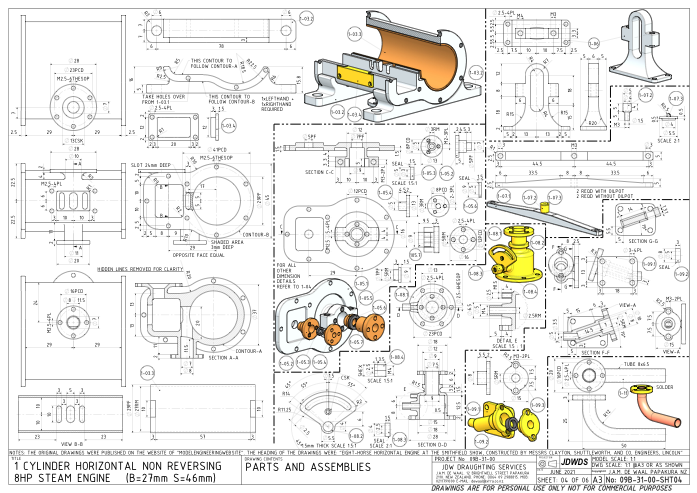

Julius’ drawings for a super project to build a model of this engine from the archive and featured in these pages.

https://modelengineeringwebsite.com/Clayton_Shuttleworth_8HP.html

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.

Please let the editor know if you are building one of these.
