STEWART AND NICHOLSON MARINE COMPOUND

Part 3/3 by Julius de Waal

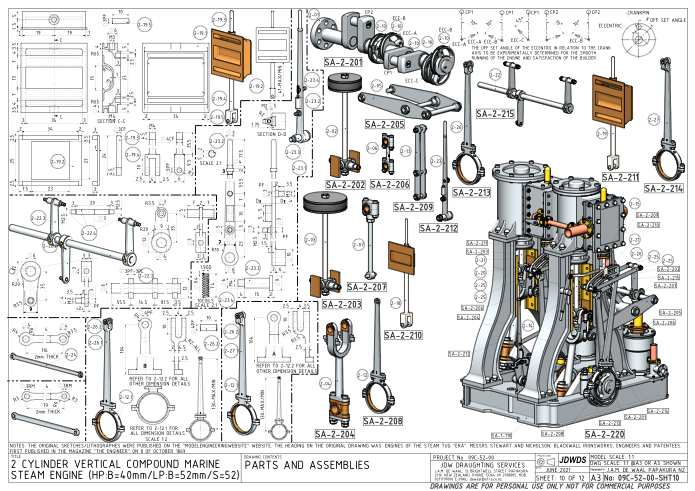

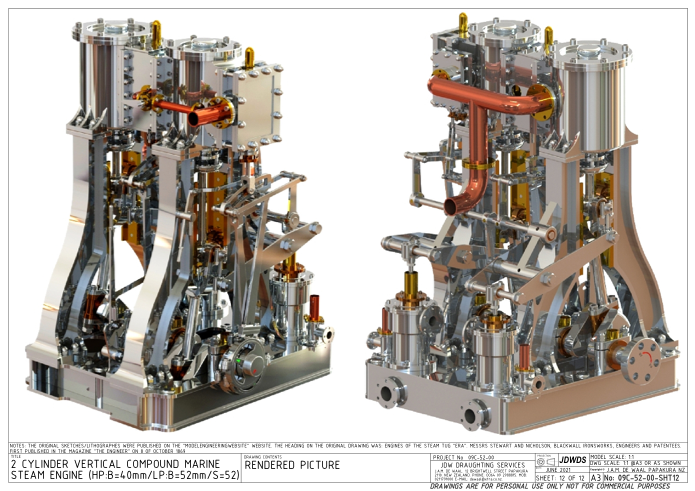

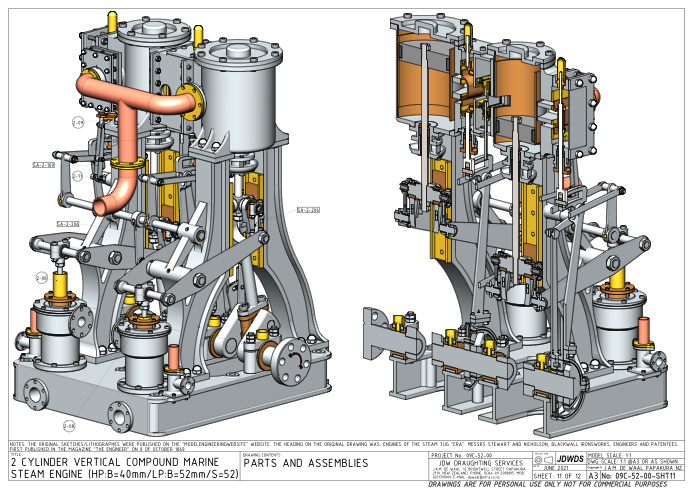

Julius’ drawings for a two cylinder compound tug engine based on drawings on MEWS and some assistance from our readers.

https://modelengineeringwebsite.com/Steam_tug_engines.html


Click on drawings to download.

For personal use only.

PART ONE HERE. PART TWO HERE.


Although drawings reproduce well on this website, they are even better as saved downloads.


Please let the editor know if you are building one of these.
