MY CORLISS

ENGINE BUILD

Part nine by Vince Cutajar

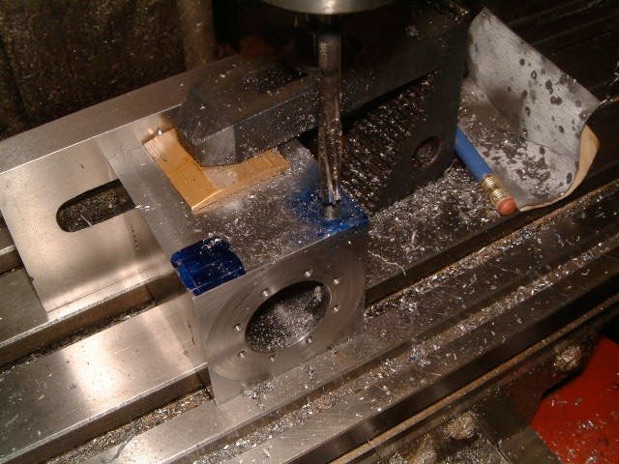

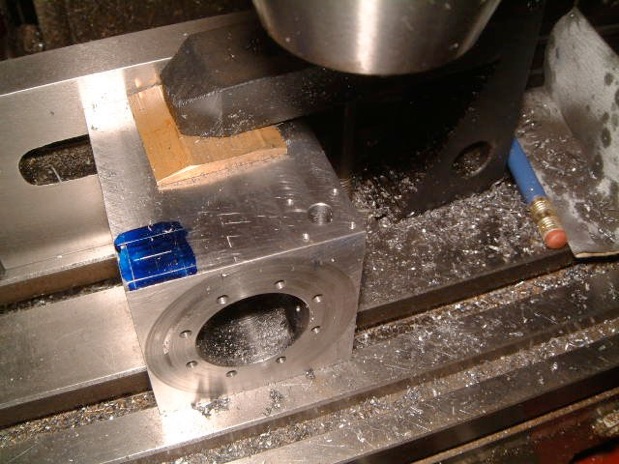

For some reason I did not fancy using the vice so I clamped the cylinder to the mill table. Used a new 5mm and 5.5mm drill and drilled and reamed 6mm the first valve hole.

-

I then drilled 1.6mm the bolt holes and tapped it with the first and second 2mm tap.  I made sure I did not bottom out and continued tapping it with the last tap.

-

Did the adjacent side similarly and then took it off the mill table and finished (very slowly) tapping the holes.


All the thirty-two 2mm holes were successfully tapped without any breakages.  Yes, I took my sweet time to do them, but as we say at work, better safe than sorry.  After a while, tapping 2mm does not seem so small.

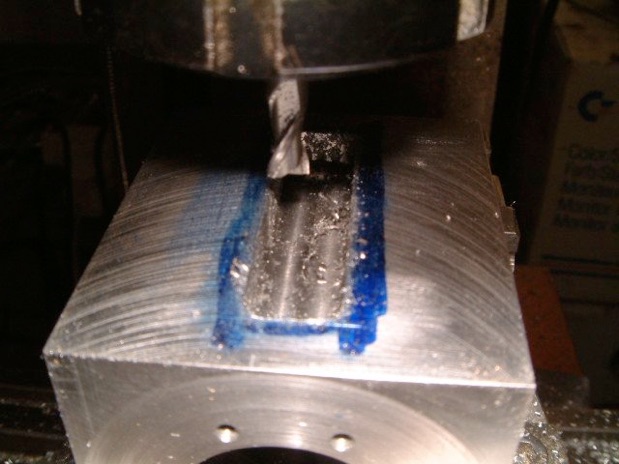

More holes needed to be drilled and tapped in the cylinder, but I needed a break from tapping. So I started work on milling the steam chest pockets.  Marked it and then using the DRO roughed it out with a 6mm slot drill.

-

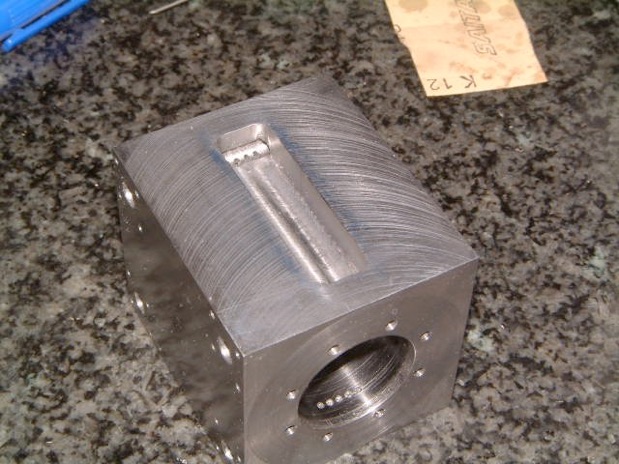

I then used a 6mm end mill to finish it out to size.

-

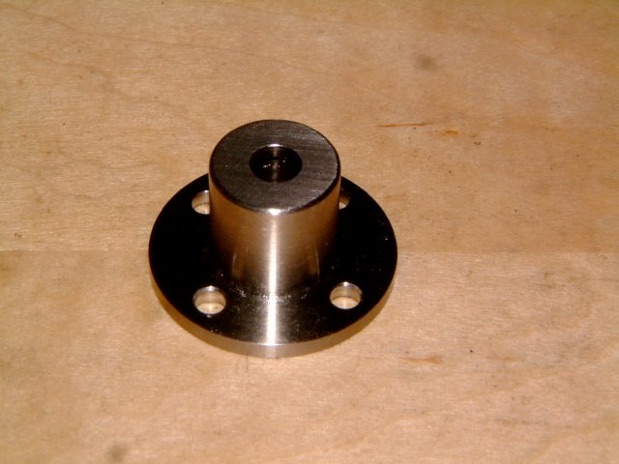

I found an off-cut from the eccentric which lended itself perfectly for the valve disk hub. So I started machining the hub.

-

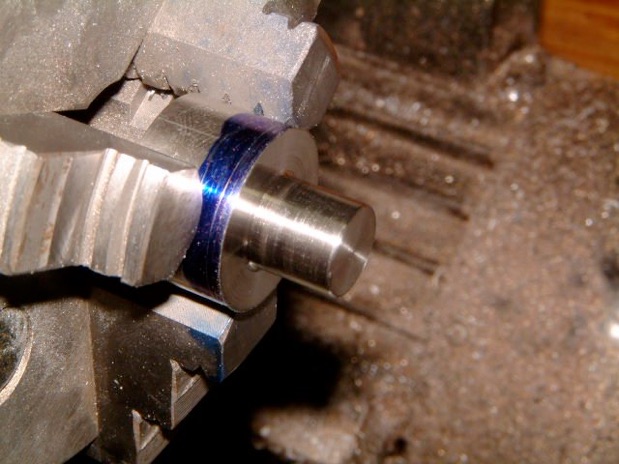

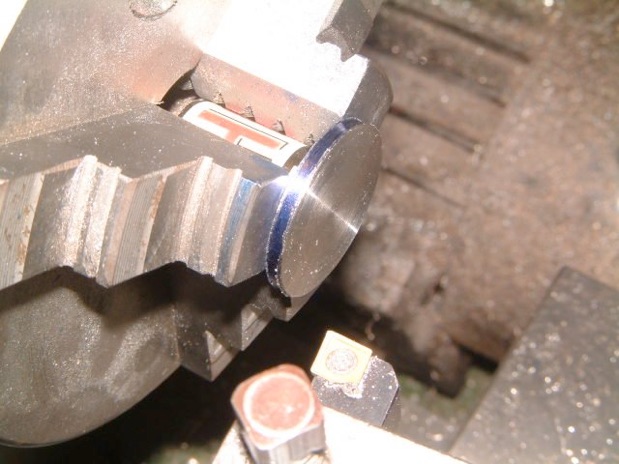

Flipped it over and faced off the back to size.

-

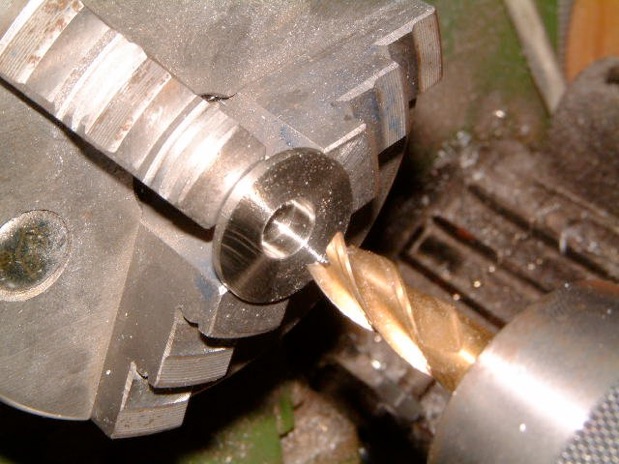

Drilled and reamed a 5mm through hole and then a 6.5mm hole. Using a 7mm slot drill (I don't have small boring bars) I opened it up to the required depth.  And for the final diameter I stepped milled in 0.5mm increments the final 10 mm diameter.

-

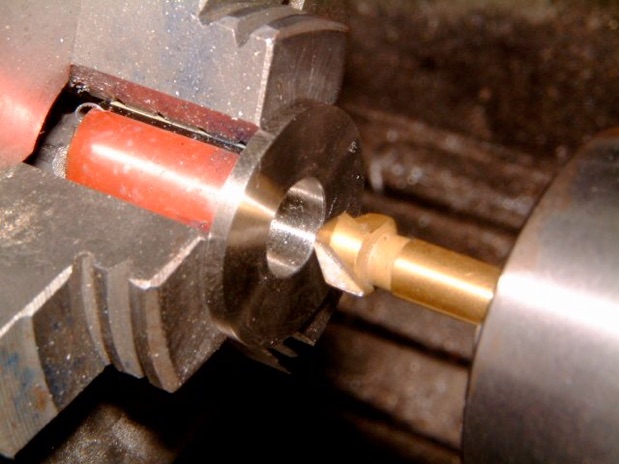

Lightly deburred the steps with a countersink tool.

-

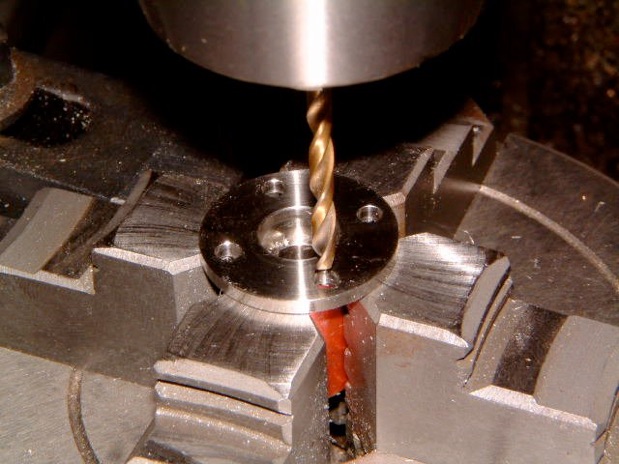

Now to drill the four mounting holes.  I used the 4-jaw chuck clamped to the mill table.  It worked a treat and I drilled the four 3mm clearance holes.

-

I tried a 3mm bolt and it was a tight fit.
