Part 2/2 by Julius de Waal

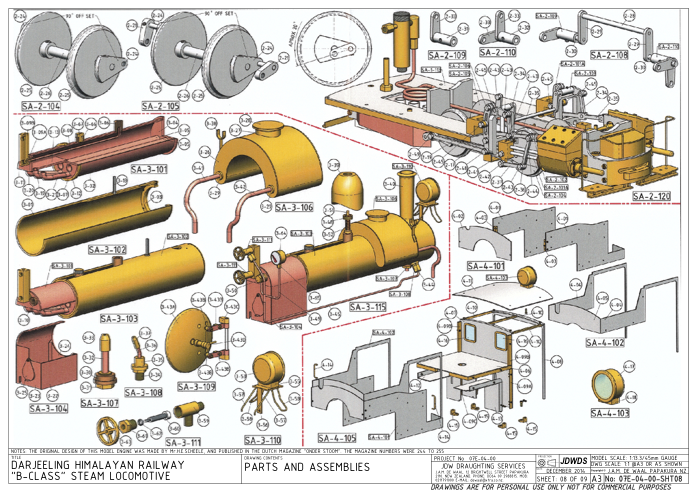

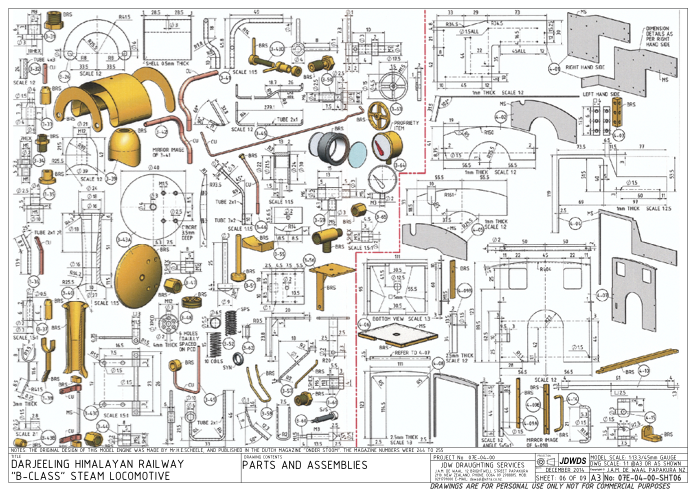

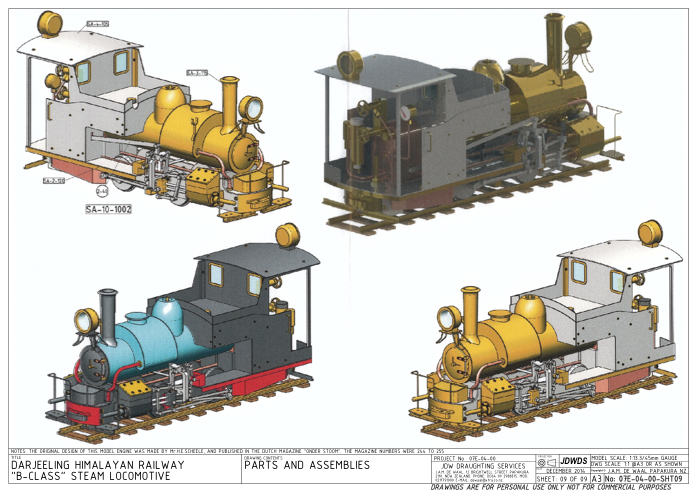

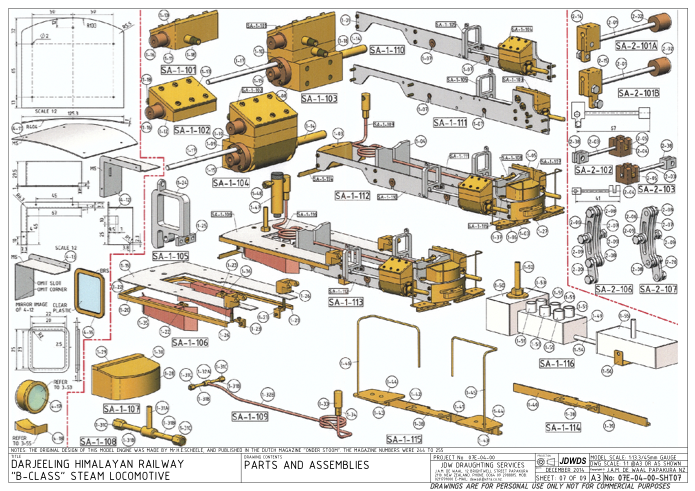

Julius’ drawings for the iconic B-class locomotive of the World Heritage, Darjeeling Himalayan Railway, to run on 45mm tracks. All the steam locomotives currently in use on the railway are 0-4-0ST B-Class, built by Sharp, Stewart and Company and later, the North British Locomotive Company, between 1889 and 1925. A total of 34 were built, by 2005 12 were still in use or being repaired by the railway.

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.

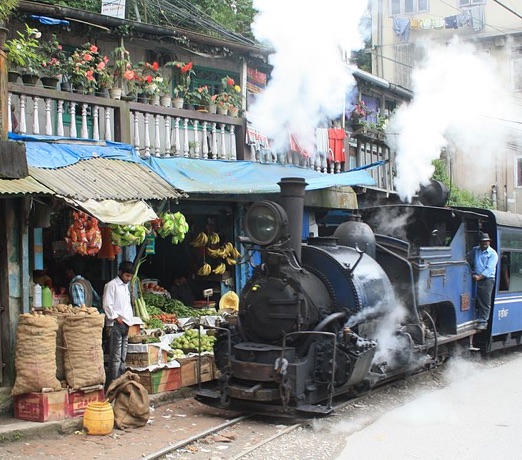

Photo by Arne Hückelheim
