DE VINK VERTICAL STIRLING ENGINE

By Julius de Waal

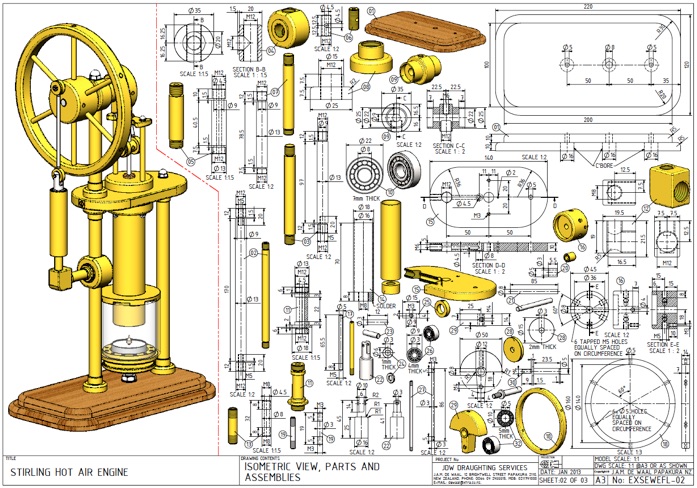

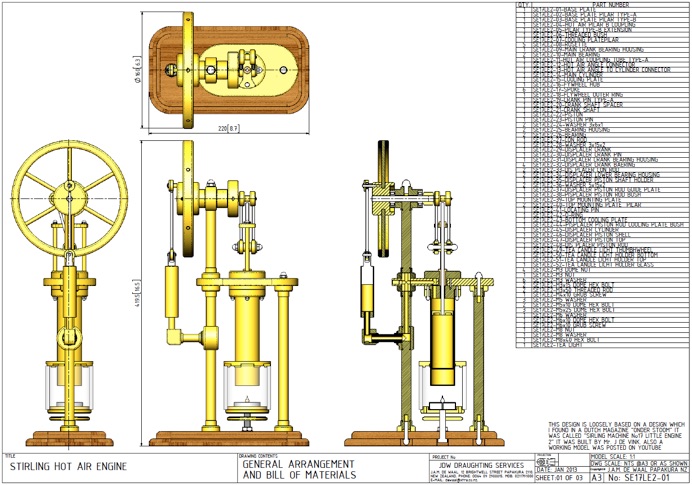

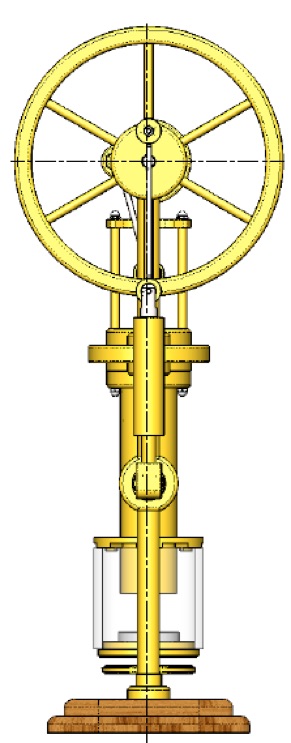

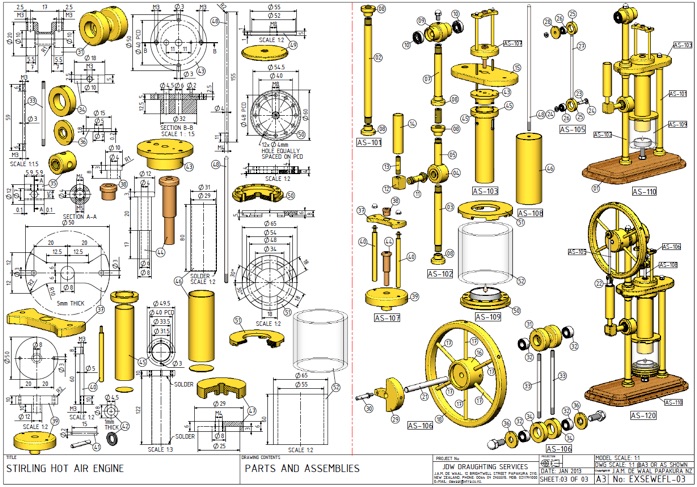

Julius’ drawings for the delightful first vertical Stirling engine designed by Jos de Vink. Jos has gone on to make dozens of other engines in the kinetic art genre and adopted by the Steampunk world.

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
