2-CYLINDER DIAGONAL STEAM ENGINE

By Julius de Waal

Another fascinating original design from Julius for a two cylinder diagonal steam engine which should prove to be a great favourite.

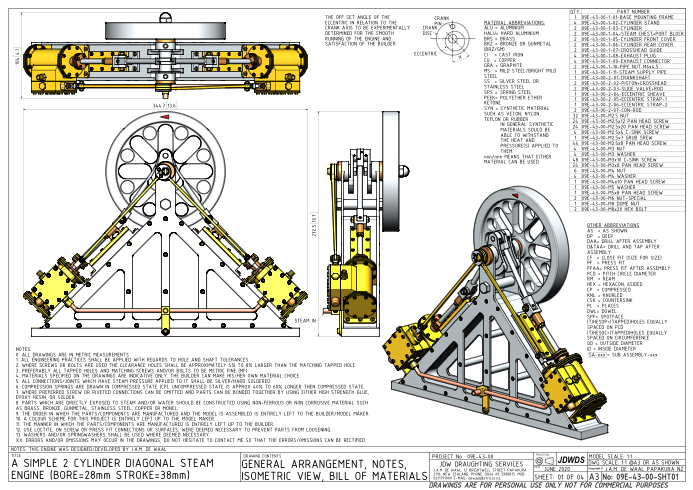

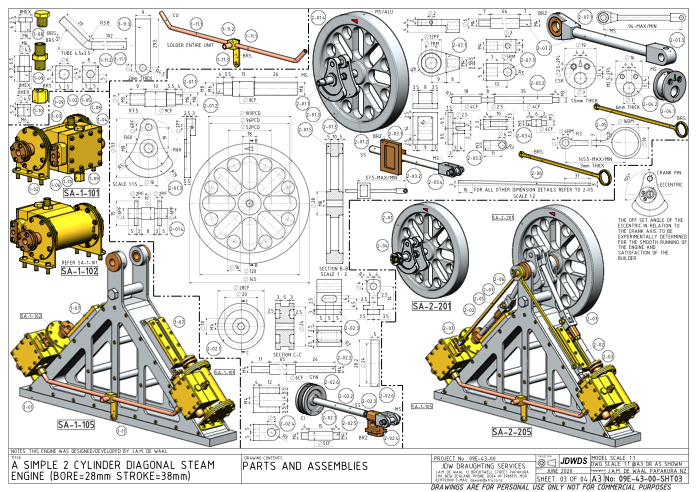

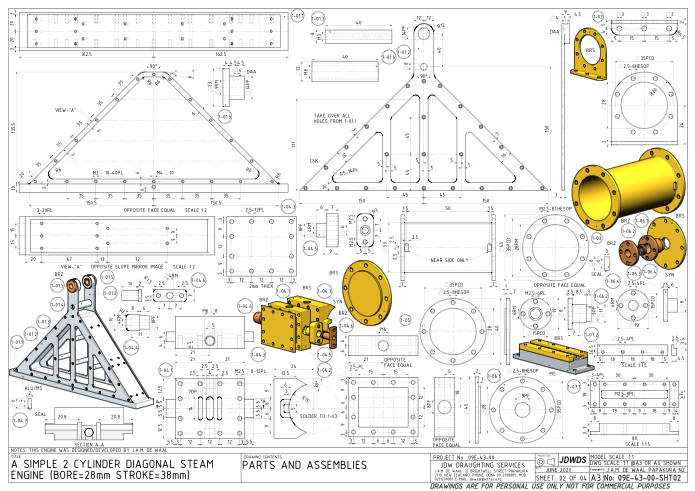

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
