EXPERIMENTAL DIRECT CONNECTED V-ENGINE
By Julius de Waal

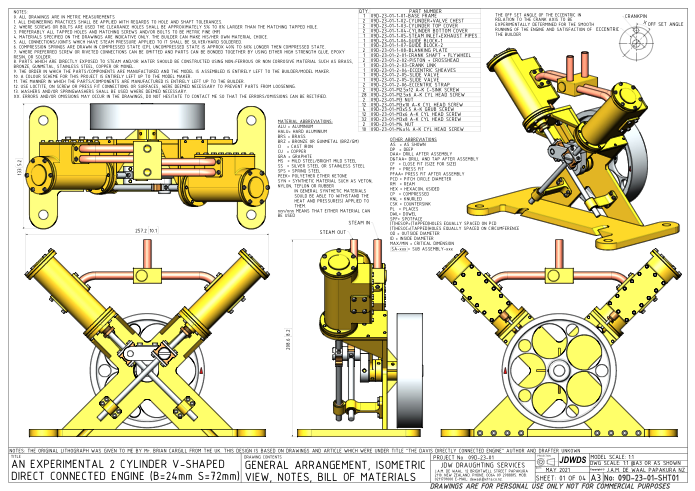

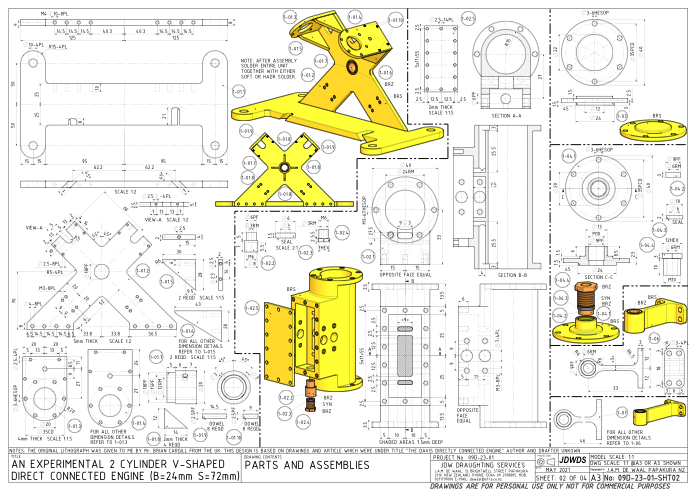

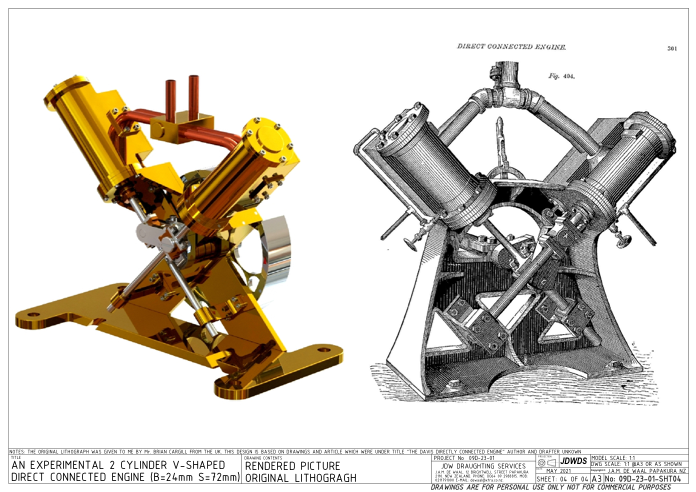

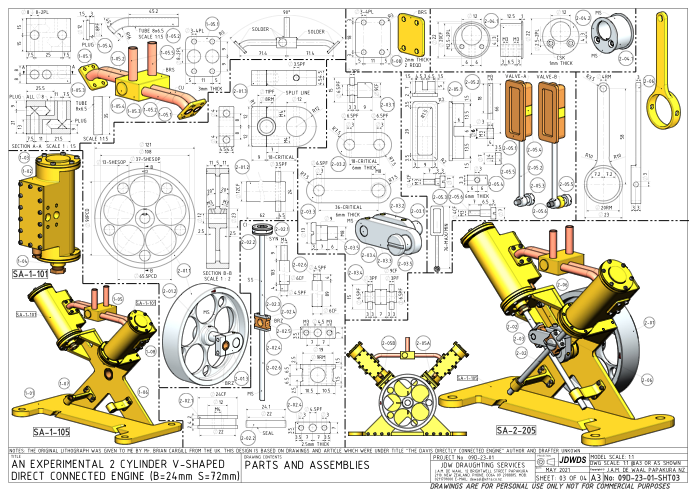

Julius’ drawings for an experimental
V-cylinder direct connected steam engine.
Click on drawings to download.
For personal use only.
Although drawings reproduce well on this website, they are even better as saved downloads.
Please let the editor know if you are building one of these.
