Dutch 4-6-0 drawings

DUTCH RAILWAYS NCS 76 IN 5” GAUGE

Part one by Julius de Waal

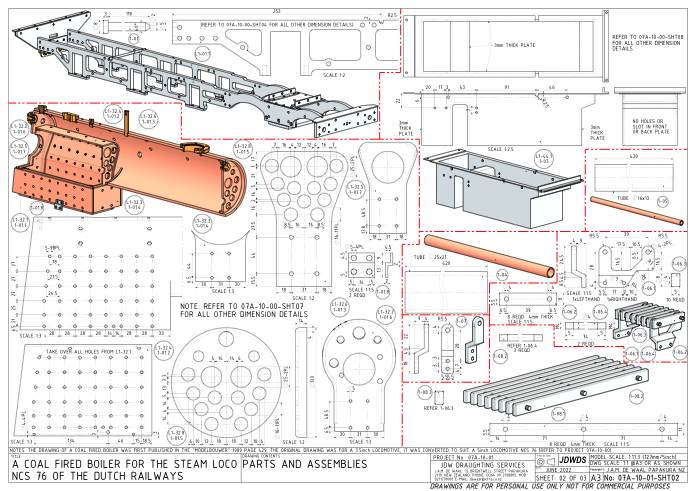

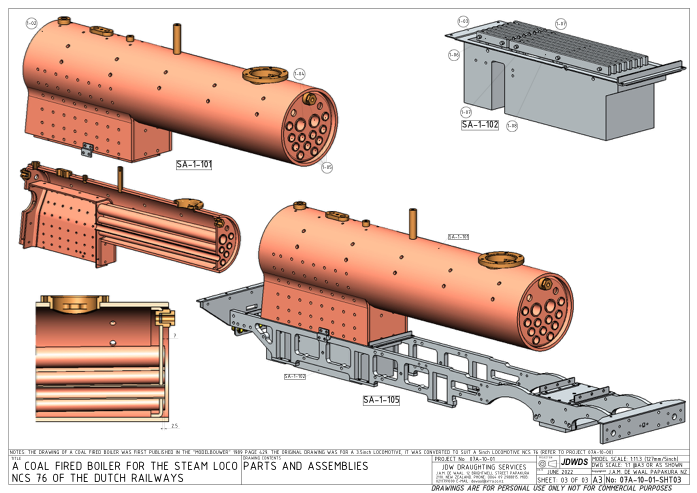

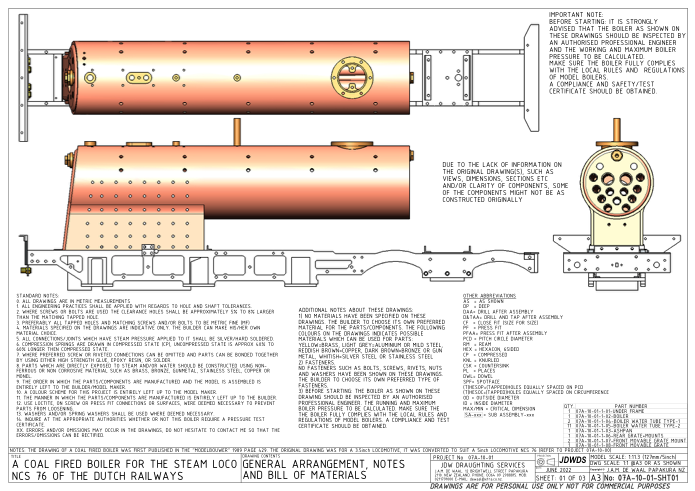

Julius’ drawings for a Dutch NCS 76 4-6-0 locomotive originally designed in 3.5” gauge with a spirit fired boiler. He has increased the scale to 5” gauge and we include details of a coal fired boiler for 5” gauge with which we start this series.

Before starting work on a boiler, always check the design etc with a boiler inspector.

See Part two. Part 3 here. Part four.

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.

Please let the editor know if you are building one of these or other projects to Julius’ designs.
