EASTON & ANDERSON BEAM PUMPING ENGINE

By Julius de Waal

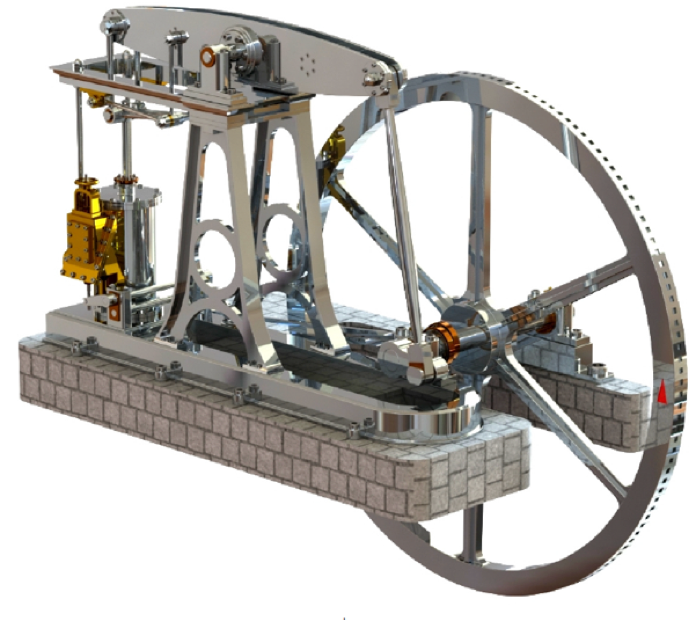

Julius’ design for an Easton & Anderson beam pumping engine installed at Banstead Hospital, Surrey, in 1870. It is a single cylinder, non reversing, balanced beam engine with Myer’s variable expansion slide valves. A build description of another Easton & Anderson engine, a grasshopper beam engine was described on MEWS by Jason Ballamy, based on an original Anthony Mount design, and provides a guide to fabrication of this type of engine.

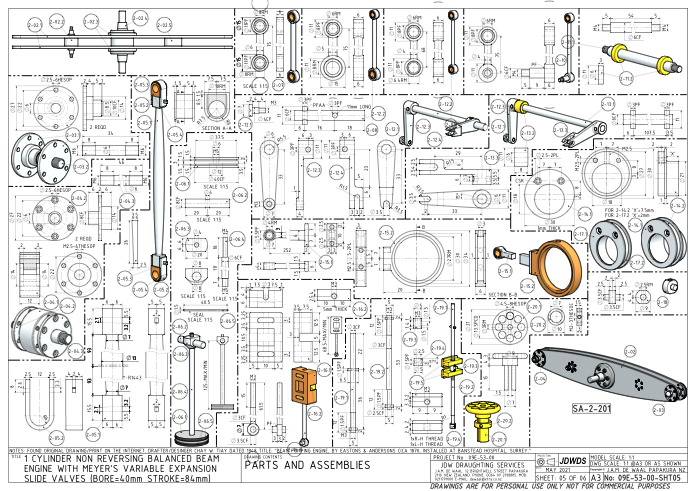

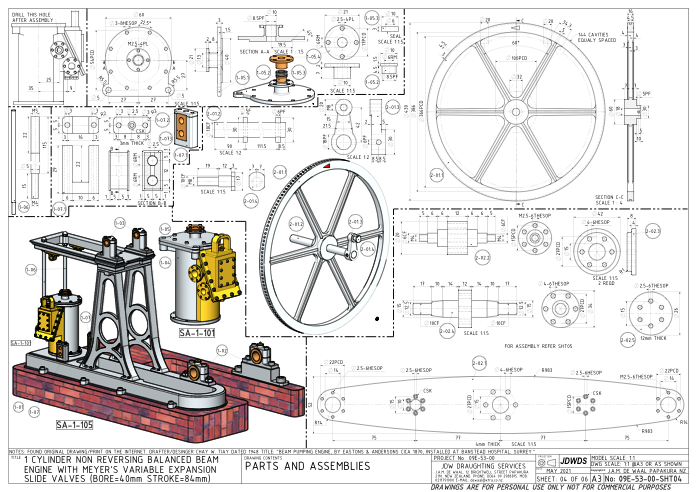

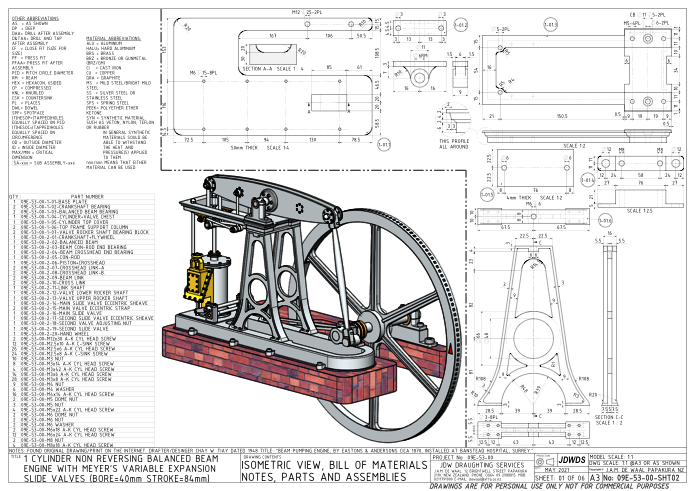

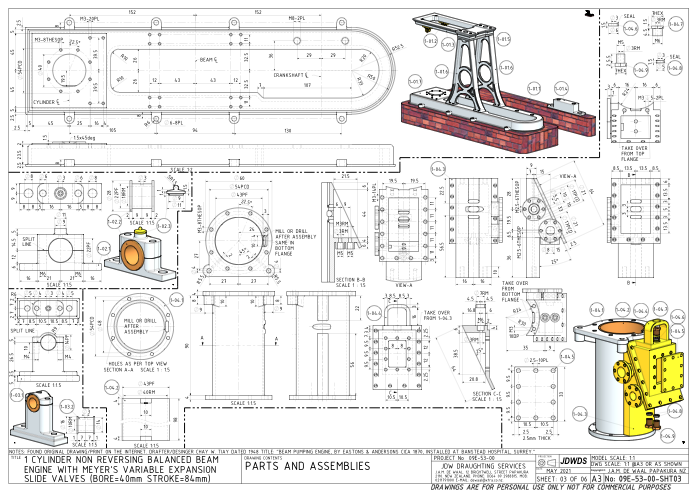

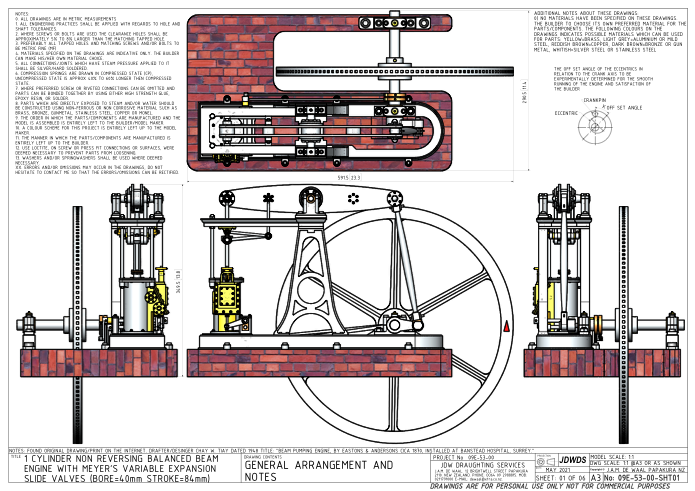

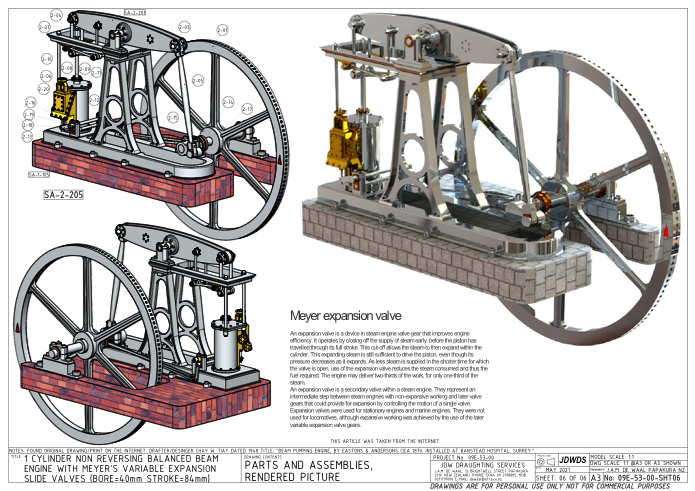

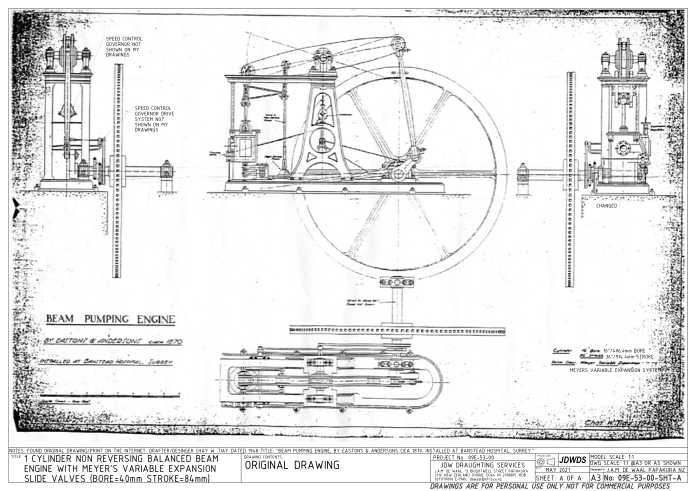

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.

Please let the editor know if you are building one of these.
