EXPERIMENTAL 4-CYLINDER CONVERTED STEAM ENGINE

By Julius de Waal

A few weeks earlier we published archive drawings for a single crank four-cylinder gas engine. Julius has taken that as the basis for a steam engine.

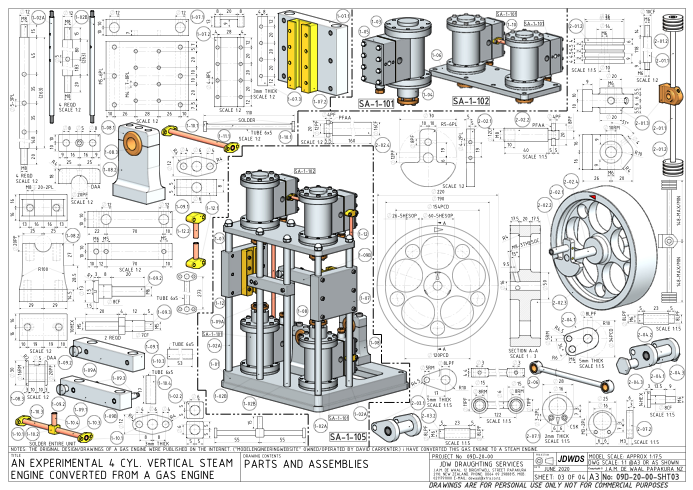

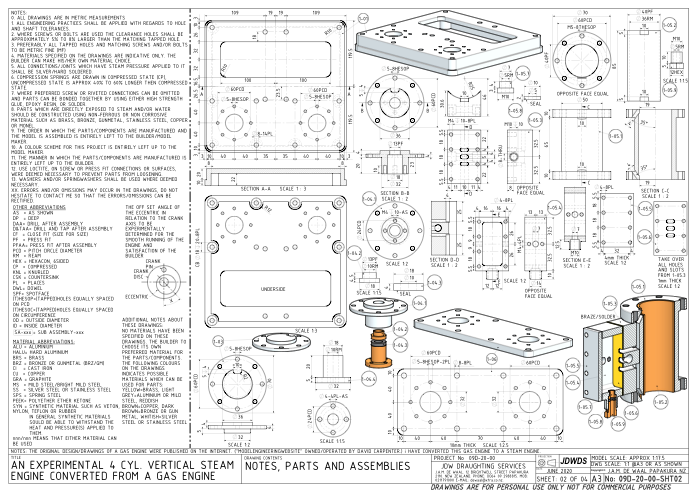

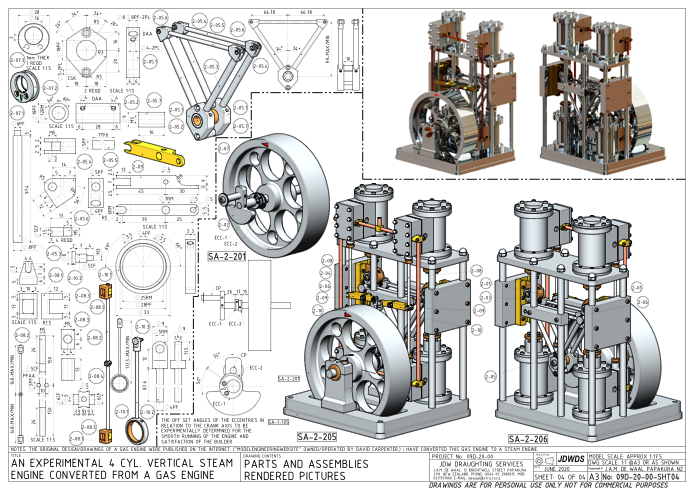

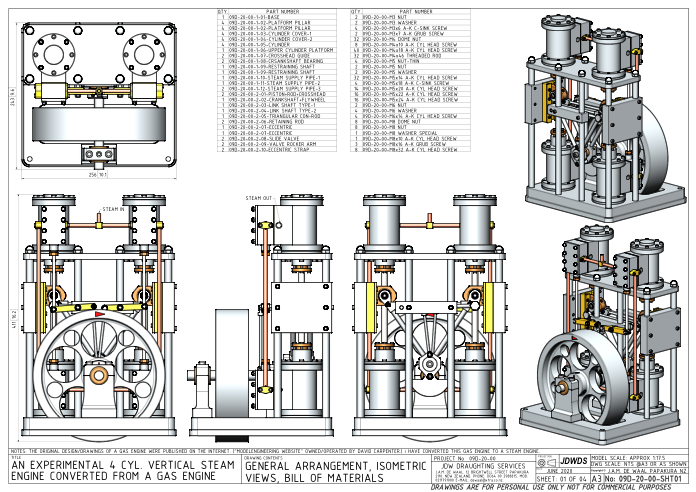

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
