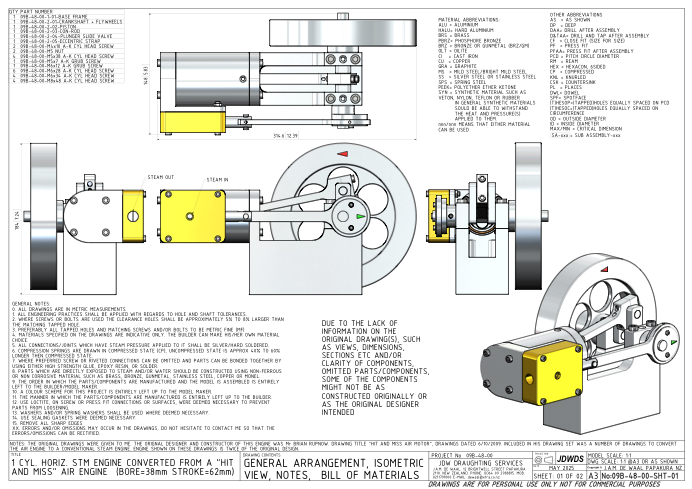

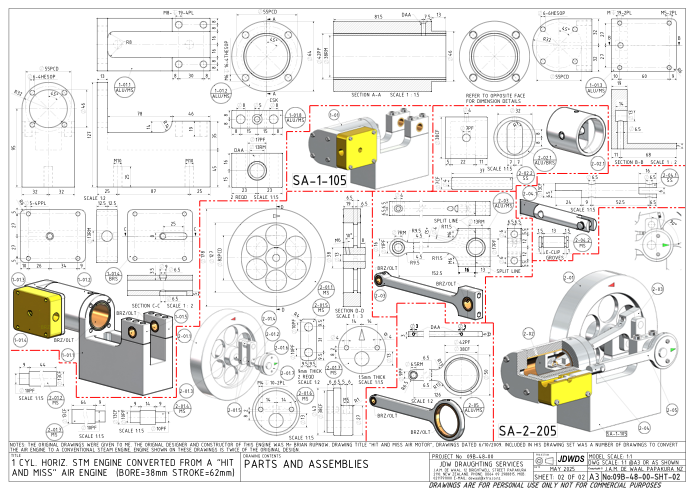

Julius’ drawings after a hot and miss engine design converted to steam power by Brian Rupnow.

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are better as saved downloads.

As usual with Julius’ designs it is meant for construction without castings.

Please let the editor know if you are building one of these or other projects to Julius’ drawings.
