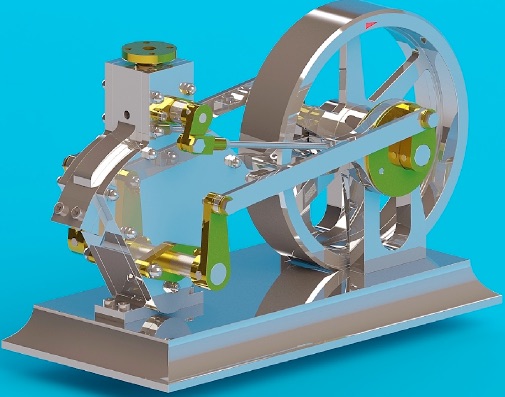

KIMBLE TYPE

STEAM ENGINE (imperial)

By Julius de Waal

Another interesting one from Julius.

This type of engine was invented by Emory Kimble at the end of the 19th century and manufactured by the Comstock Manufacturing Co. in Michigan. The original engines ranged from 2HP to 45 HP, and were turned out at a rate of about 25 a month to US and overseas customers.


Click on drawings to download - for personal use only.

Although drawings reproduce well on this website, they are even better if downloaded.


This version is in imperial - metric version here.
