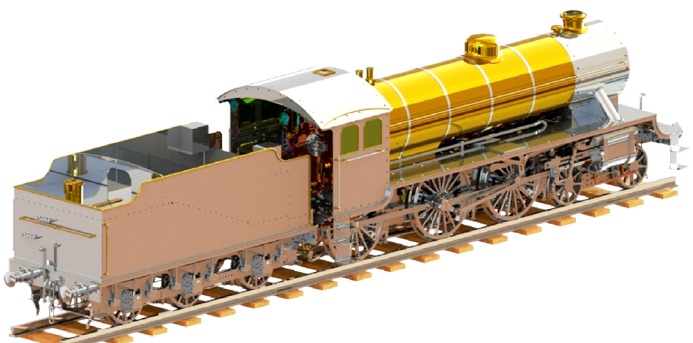

Julius’ metric drawings for the LNER B1 Springbok in 7.25” gauge.

Part one here part two here part three here part five

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.

Please let the editor know if you are building one of these or other projects to Julius’ drawings.
