LITTLE KATHY x 2

VERTICAL  STEAM ENGINE

By Julius de Waal

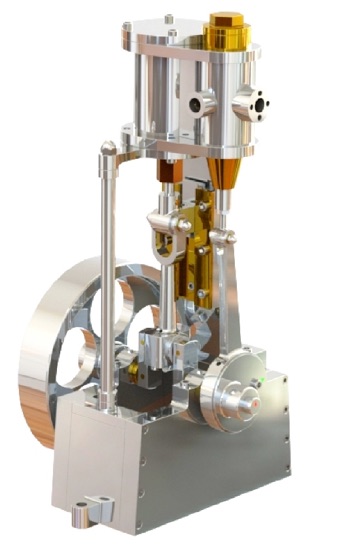

Latest from Julius is a scaled up model of a vertical steam engine in metric which lends itself to a mainly fabricated construction, plus a flywheel that can be machined on a small lathe.

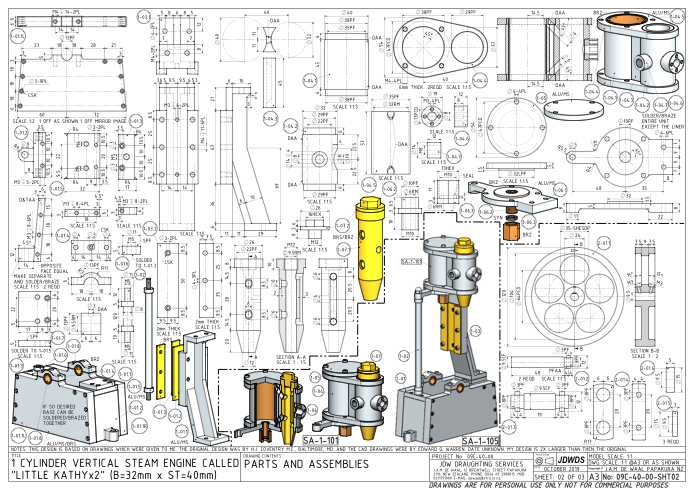

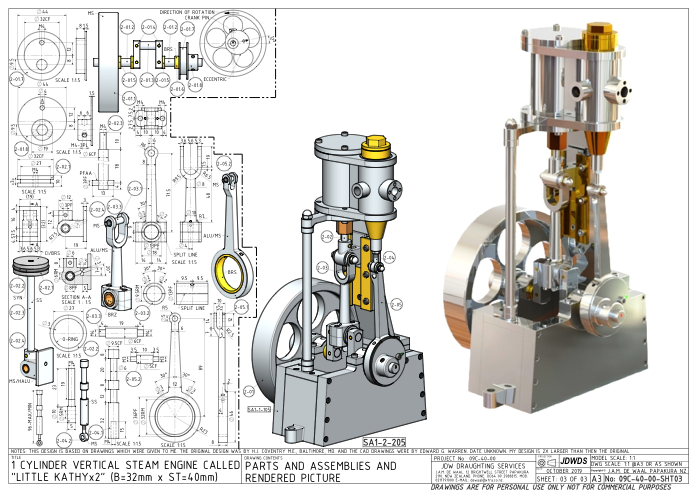

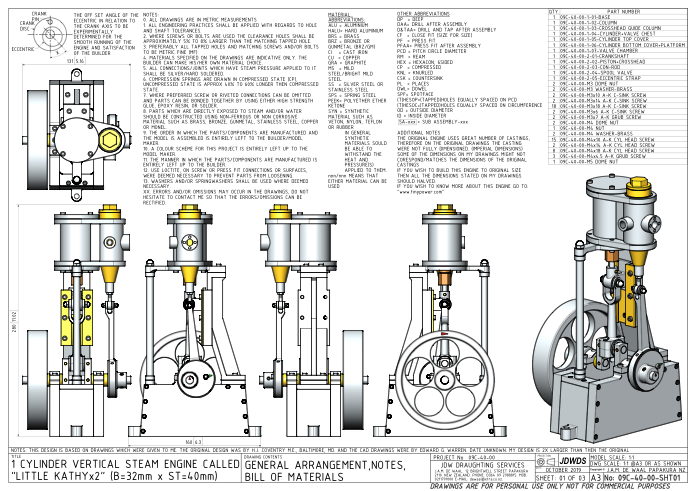

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
