METRIC DOUBLE SIDED BEAM ENGINE
By Julius de Waal
METRIC DOUBLE SIDED BEAM ENGINE
By Julius de Waal

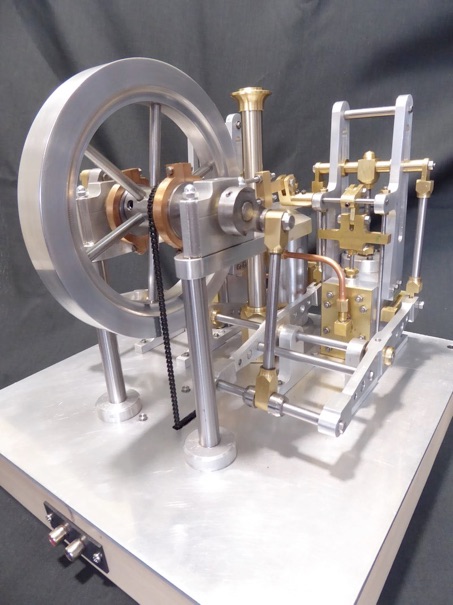

Bob Middleton’s double sided beam engine design was published in imperial measurements recently. Now Julius has prepared a metric version for MEWS readers.

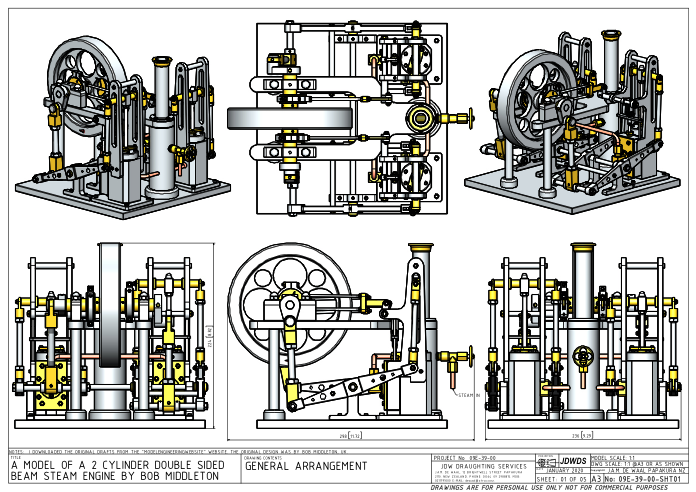

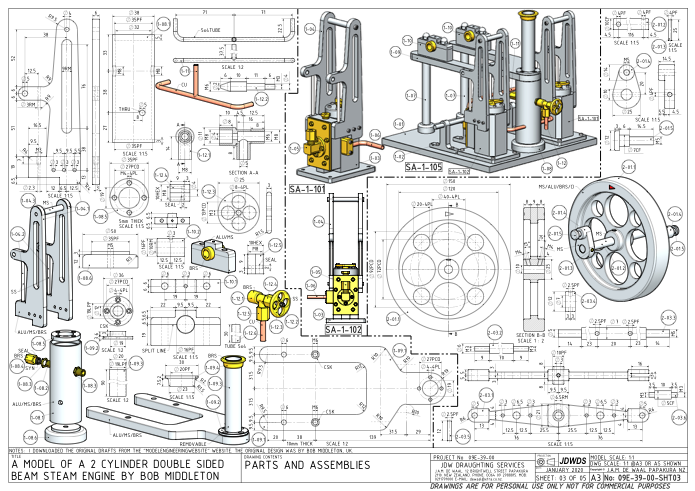

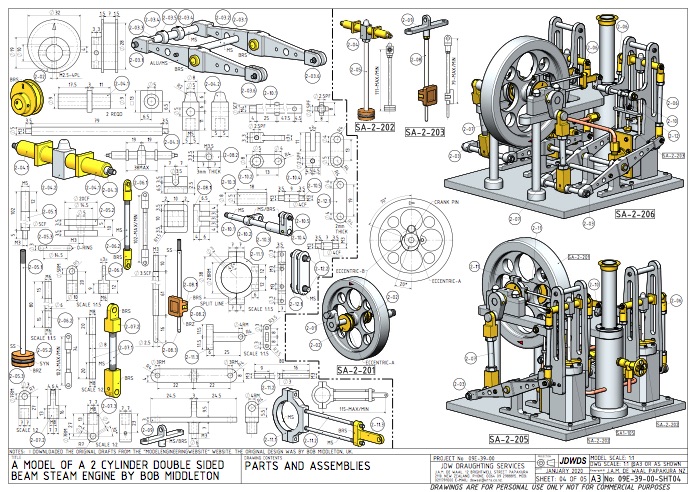

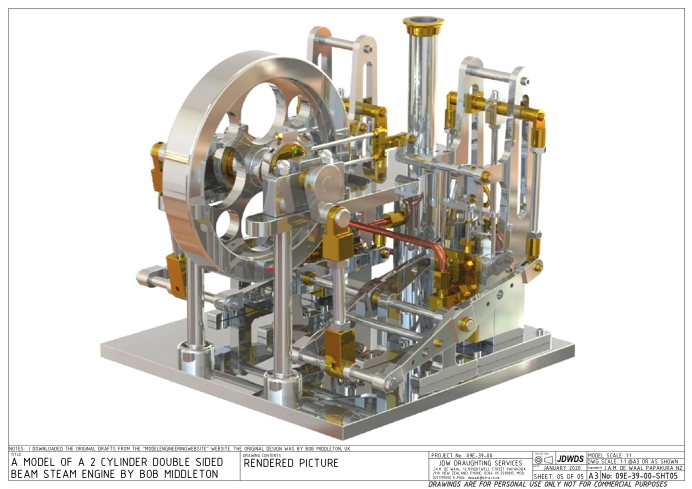

Click on drawings to download. For personal use only.
Although drawings reproduce well on this website, they are even better as saved downloads.
