NEW TOOLING FROM WARCO

Warco has introduced a whole lot of new tooling products.

3MT Fly cutter is £16.50 inc VAT. It is also available with 2MT and R8 spindles.

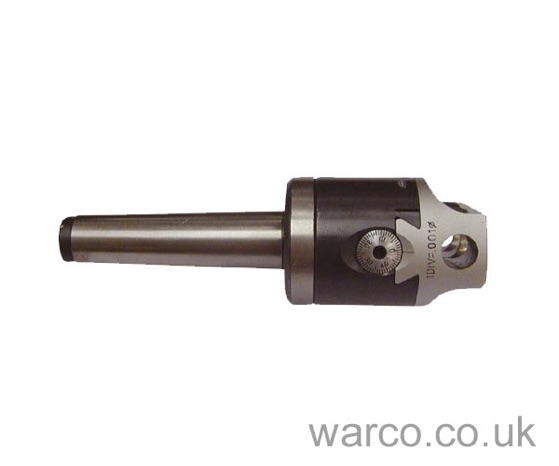

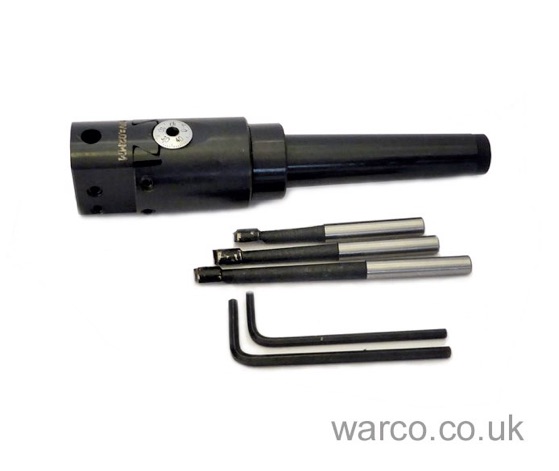

2MT Boring head is £58 inc VAT including carbide tipped boring bars.

Specification:

  1. •30mm diameter.

  2. •With two bores to accept vertical tool - one central / one offset to achieve maximum bore diameter.

  3. •Total length of boring head below 2MT arbor is 65mm.

  4. •Left and right horizontal bores for tool fitting.

  5. •Head can be offset 5mm either side.

  6. •Calibrated dial 1 division equals .02mm.

  7. •Supplied with three 3x carbide tipped boring bars.

  8. •Length of boring bars (excluding shank) - 30mm / 40mm / 50mm.


3MT Slitting saw arbor - multibore spring loaded head - is £15.50 in VAT.

Accommodates slitting saw bores: 1/2", 5/8", 3/4", 7/8" and 1"

An R8 version is also available.



2MT boring head, also in 3MT and R8 is £68 inc VAT.

  1. •Diameter - 2".

  2. •Will accept 1/2" tooling.

  3. •Maximum boring diameter excluding tool - 2.5".

  4. •Graduations - 0.001"

  5. •Tapped 3/8" Whit for drawbar.

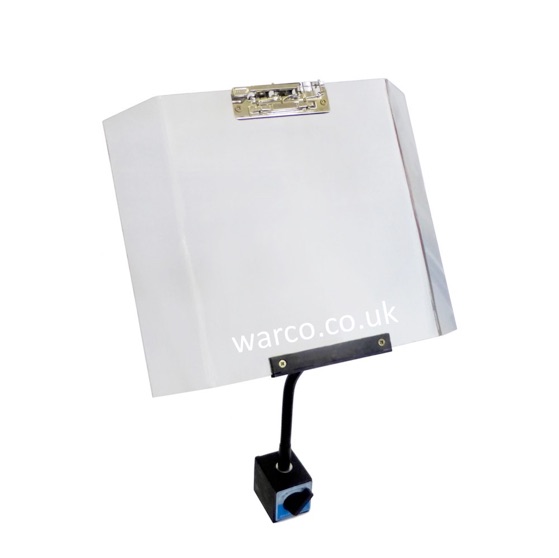

Magnetic base guard/safety shield is £24 inc VAT.

Screen size (WxH) - 300 x 270mm

Flexible arm length - 250mm

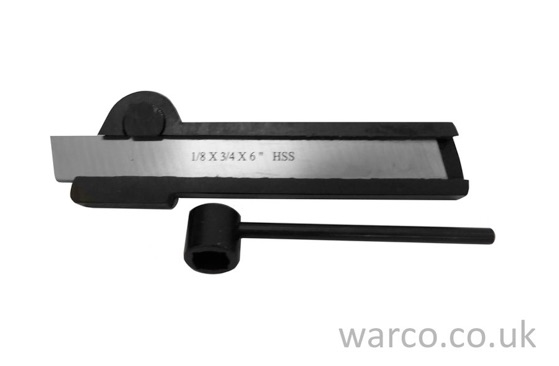

Parting off tool and HSS blade, 29mm height, is £22 inc VAT.

Blade size - 1/8" x 3/4" x 6"

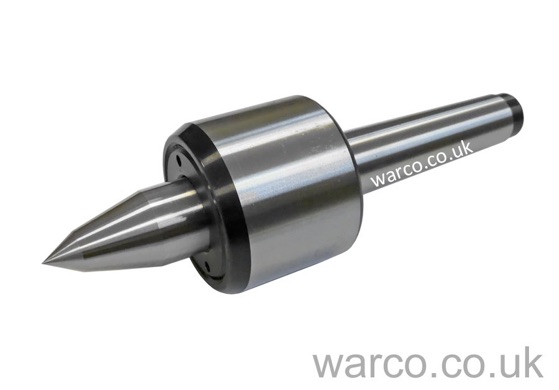

Long nose 2MT revolving centre is £28 inc VAT

Centre rotates on three precision bearings, sealed against coolant.

Body diameter - 42mm.

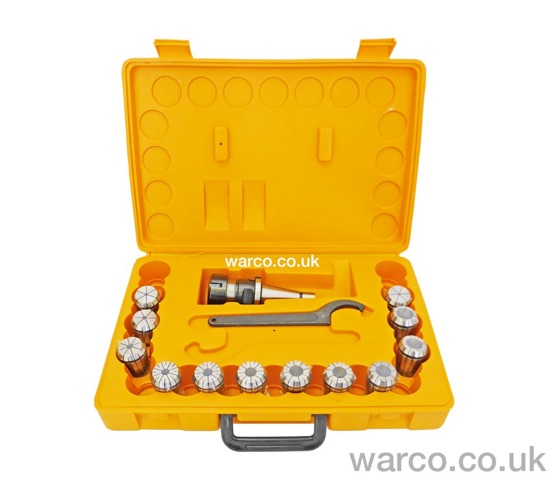

ER 32 collet chuck and collets set is £135 inc VAT.

ISO 40 size.

Set range - 3-20mm

Thread - 16mm

Set includes the following collet sizes:

3, 4, 5, 6, 8, 10, 12, 14, 15, 16, 18, 20mm

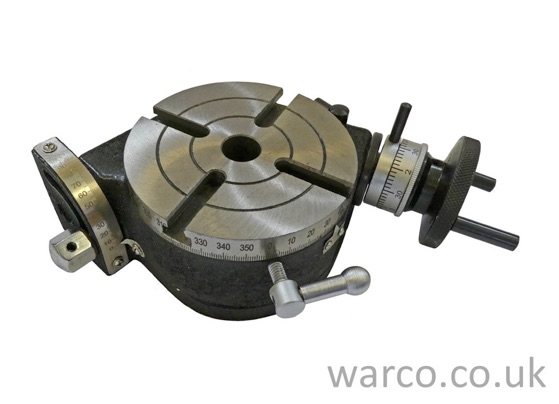

Price of 4” tilting rotary table is reduced to £66 inc VAT.

Specification:

Tilt calibrated 0 - 90°

Positive stops to locate to horizontal.

Disengageable hand wheel for free table rotation

Alloy steel worm

Cast iron gear.


Dimensions

Table diameter - 105mm

Base dimensions - 130 x 145mm

Tee slot width - 7.6mm

Height horizontal - 65mm

Centre height in verical position - 83mm

Centre bore - 2MT

Worm gear ratio - 1:90

Weight - 4.8kg

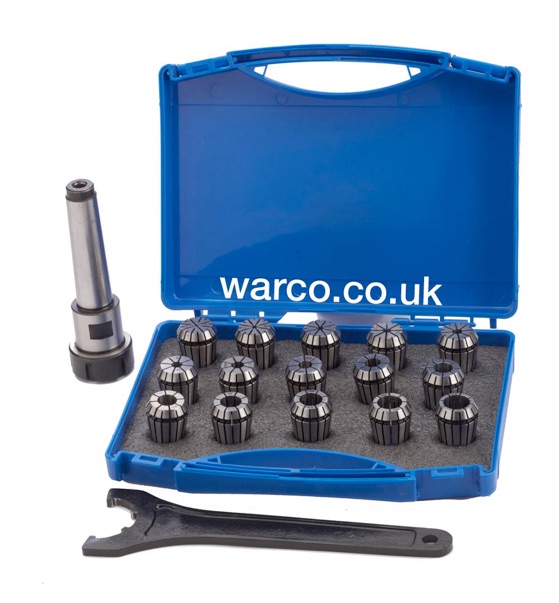

ER 25 collet chuck and collets set 3MT - Collets 1 - 16mm. £99 inc VAT.
