Jonathan Gittins

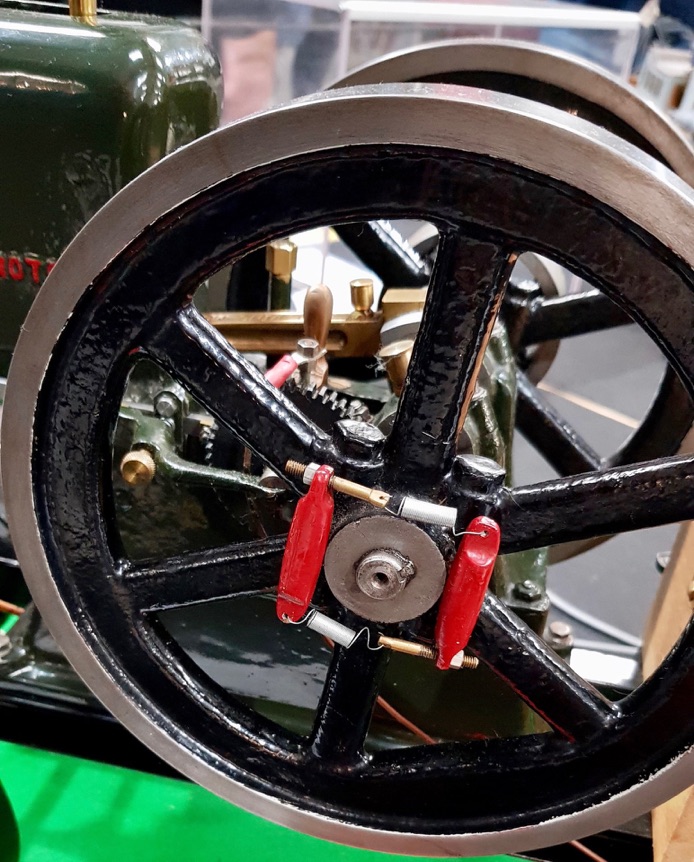

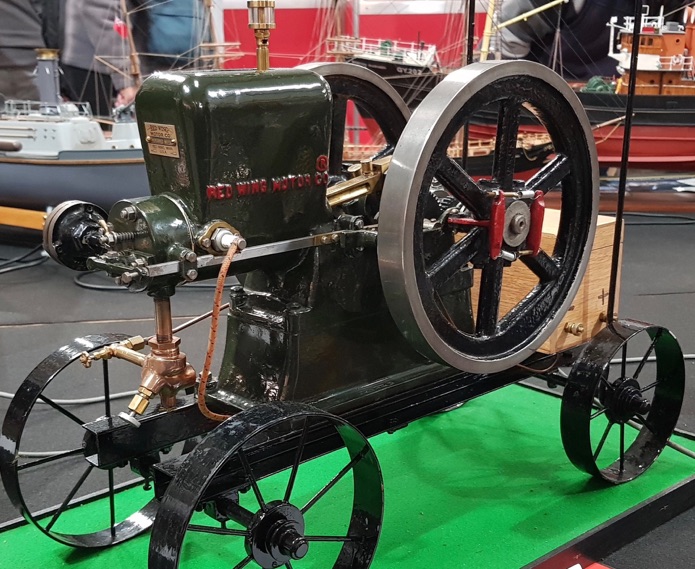

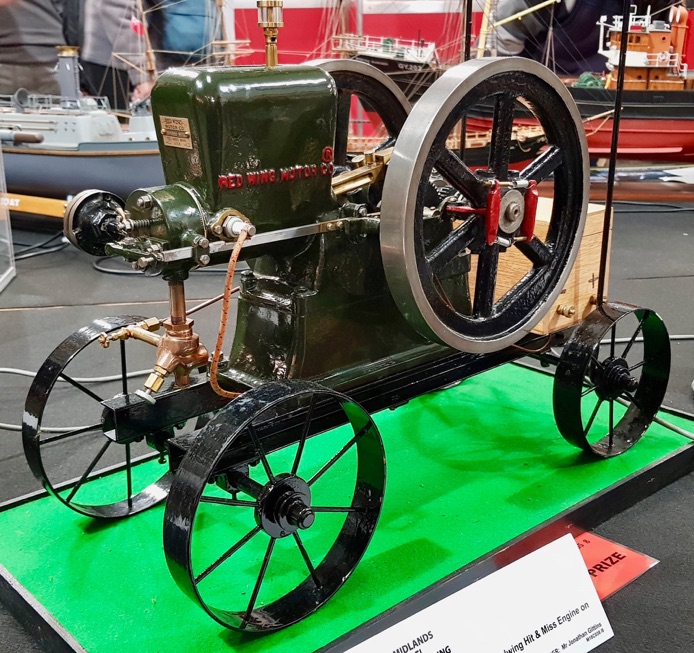

1:4 SCALE REDWING HIT & MISS ENGINE

The 5 HP Red Wing Motor was the inspiration for this fully functional quarter scale model shown by Jonathan Gittins at the 2018 Midlands Exhibition. It runs on regular gasolene and uses a buzz coil as the ignition source. The Redwing is available as nine bronze castings and 11 iron castings and small parts such as springs, timing gears, piston rings, spark plug, bearings, and other small parts needed to build the engine along with a complete set of working drawings.

  1. Bore 1-1/4″

  2. Stroke 2″

  3. Gasoline Engine

  4. 14-1/2″ engine length

  5. 9-1/2″ width

  6. 9″ engine height

  7. 8-1/4″ flywheel dia.
