KERR RHOMBIC DRIVE

HOT AIR ENGINE

By Julius de Waal

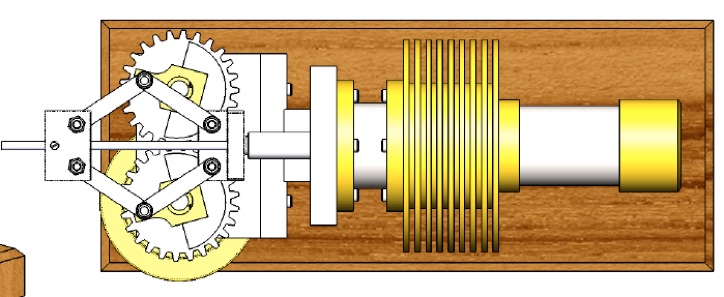

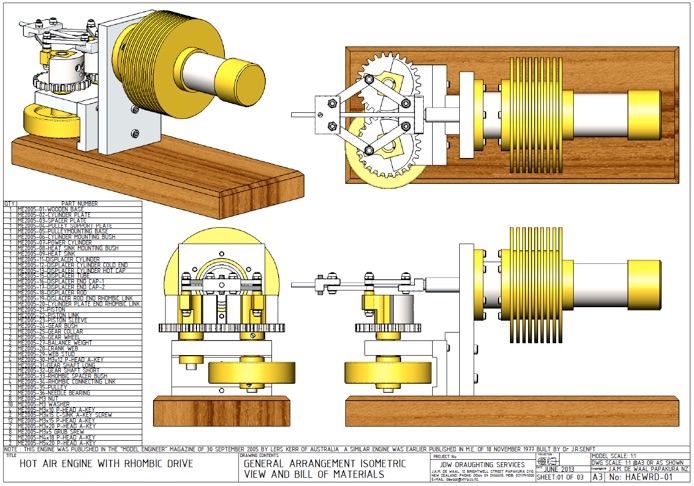

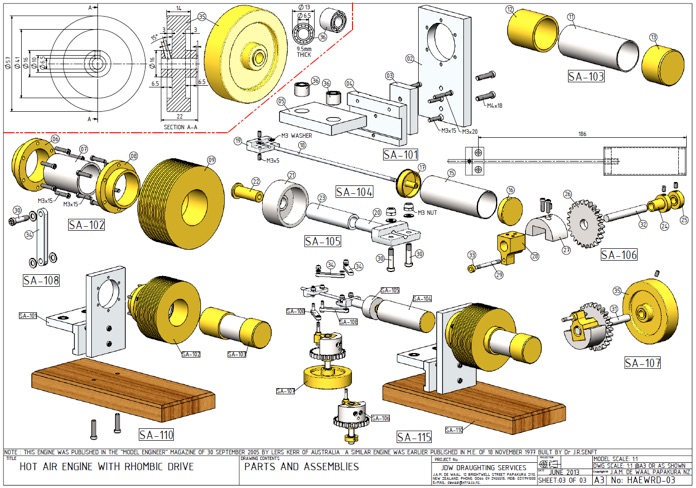

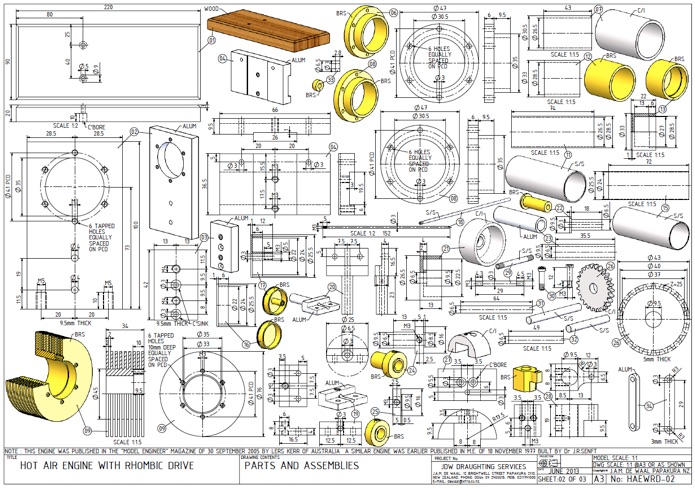

Julius’ drawings for the fascinating hot air engine with rhombic drive designed by Les Kerr.

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
