Part 3/3 by Julius de Waal

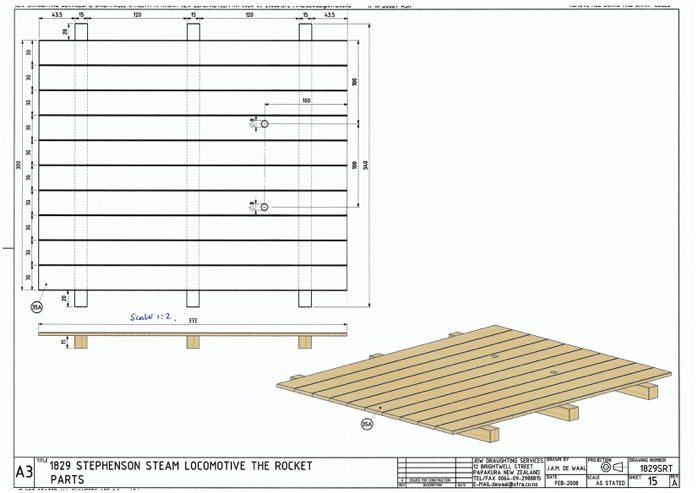

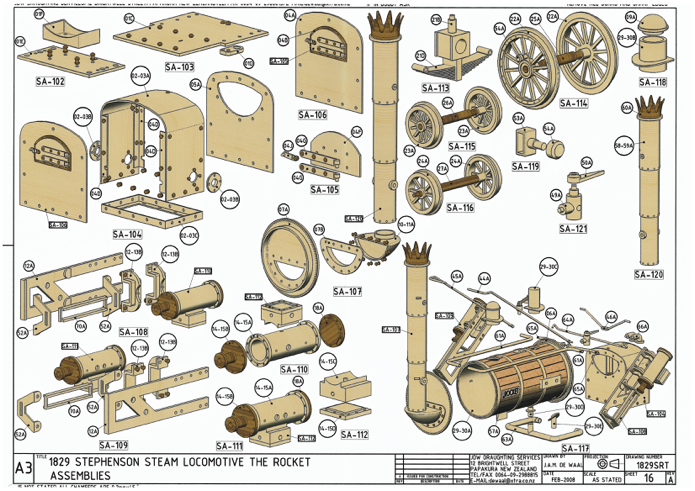

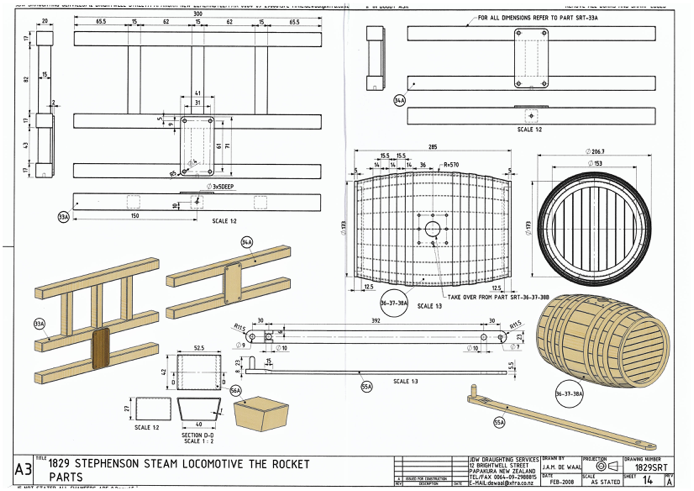

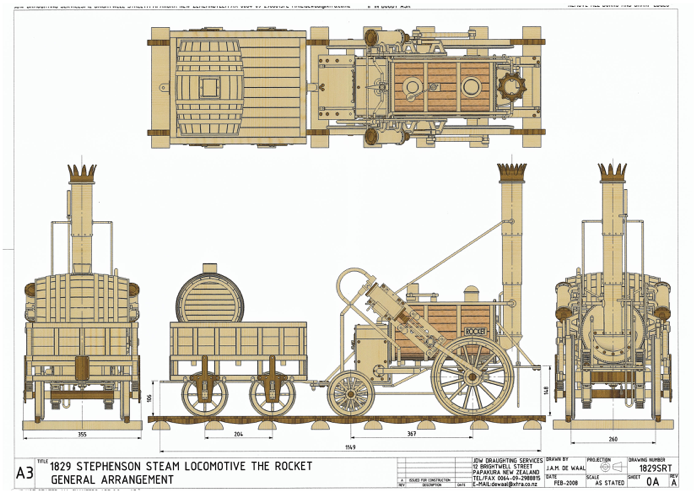

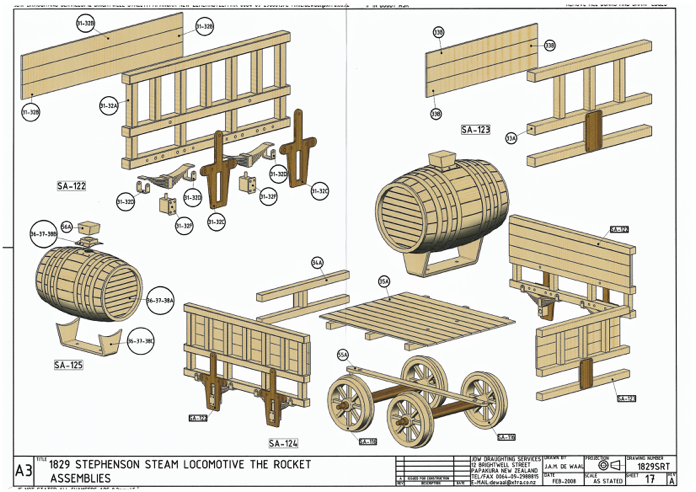

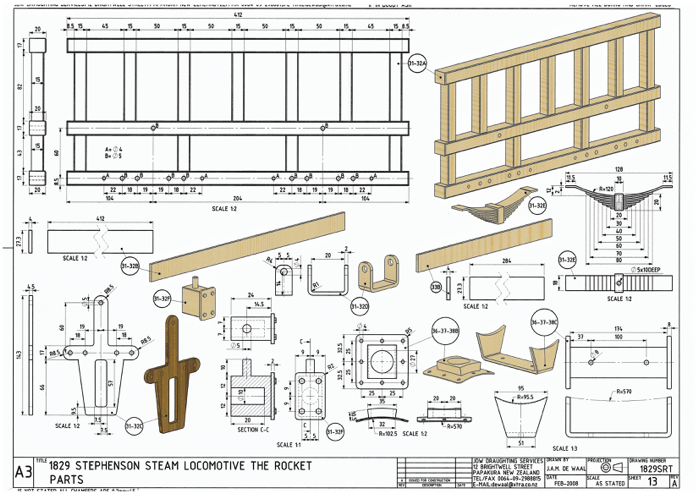

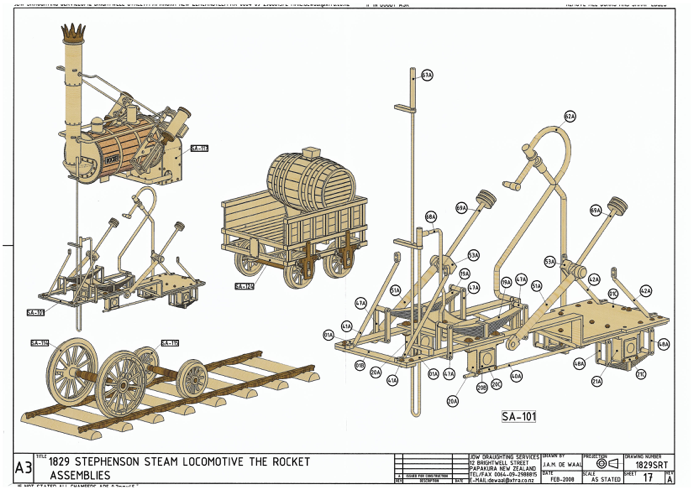

For those MEWS readers who enjoy working in wood, Julius has prepared a set of plans for the iconic Stephenson’s Rocket of 1829.

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
