SCHMID’S WATER PRESSURE ENGINE

By Julius de Waal

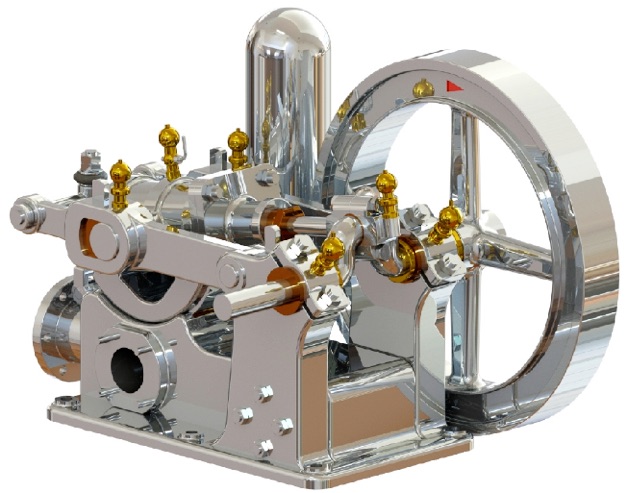

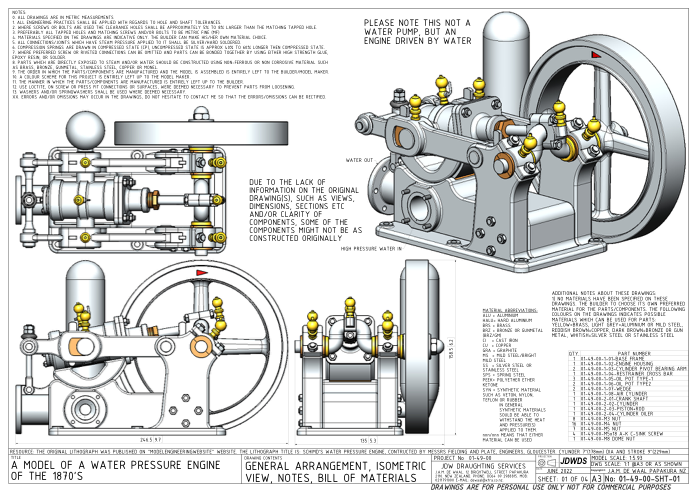

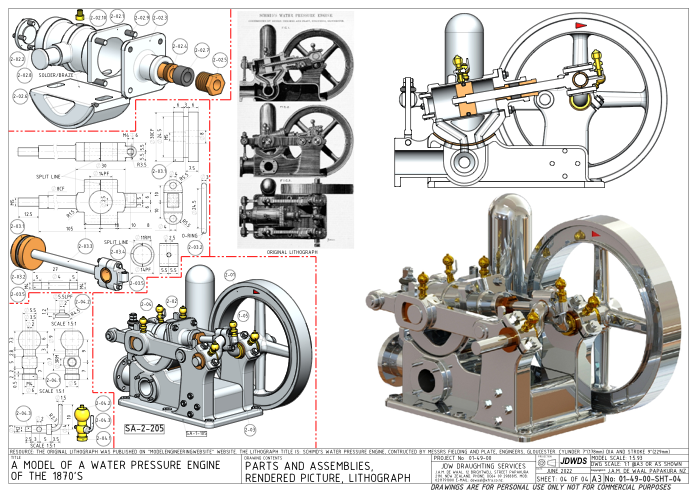

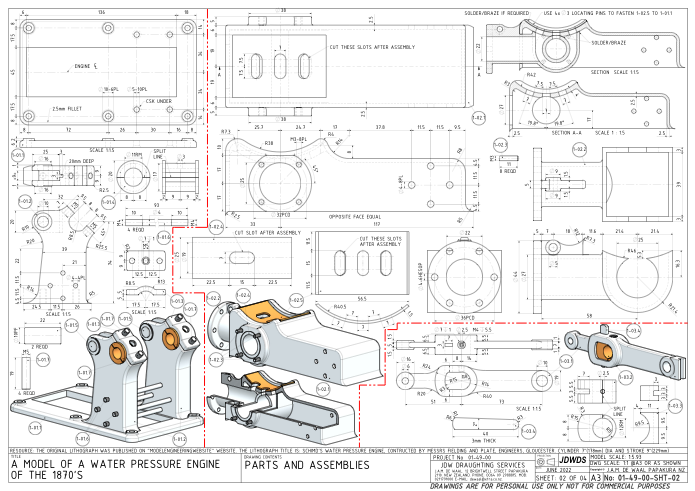

Julius’ drawings for Schmid’s water pressure engine - not a pump - from the 1870s described previously on modelengineeringwebsite.com.


Click on drawings to download.

For personal use only.


Although drawings reproduce well on this website, they are even better as saved downloads.

Please let the editor know if you are building one of these or other engines to Julius’ designs.
