SIMPLE ONE AND TWO CYLINDER ENGINES
By Julius de Waal

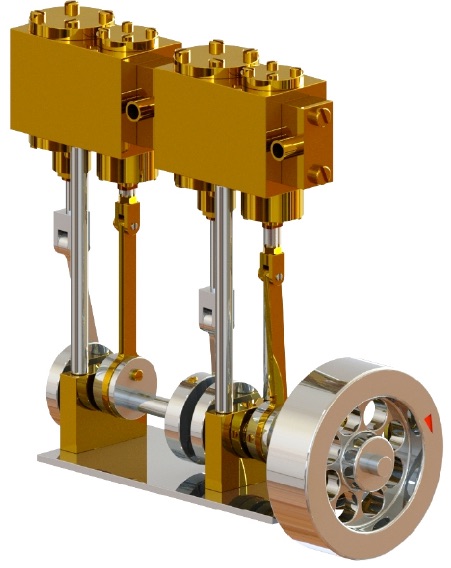

Julius draws up simple vertical steam engines which can be built by beginners with one or two cylinders.

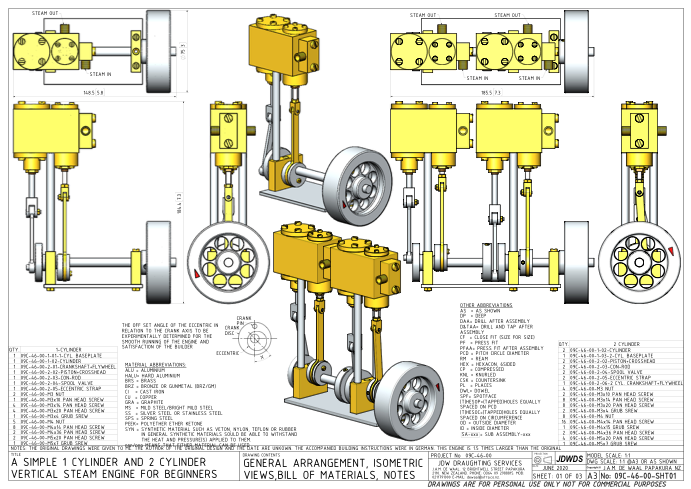

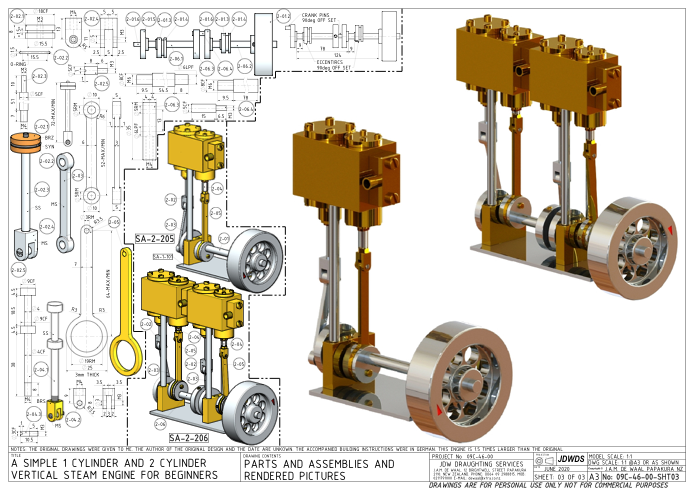

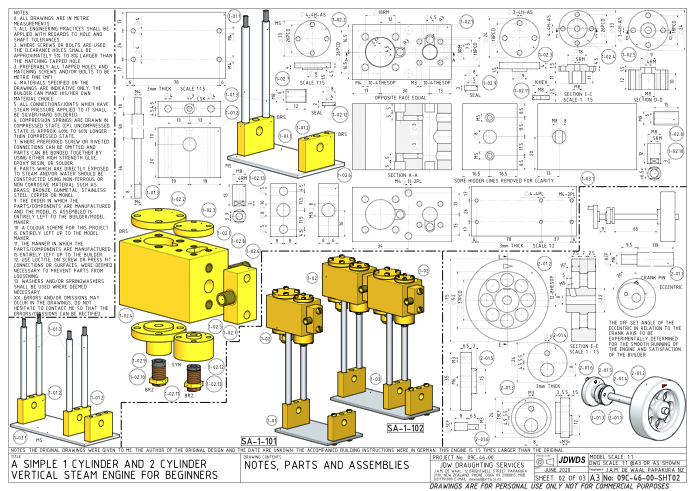

Click on drawings to download.
For personal use only.
Although drawings reproduce well on this website, they are even better as saved downloads.
