SIMPLE EXPERIMENTAL TRIPLE ENGINE

Part 1/2 by Julius de Waal

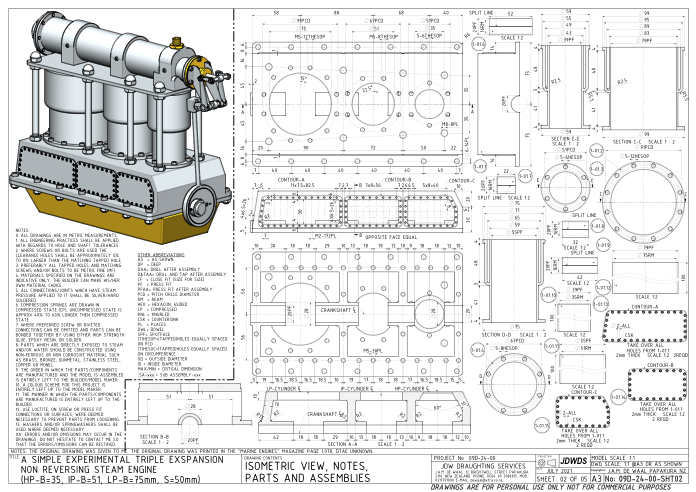

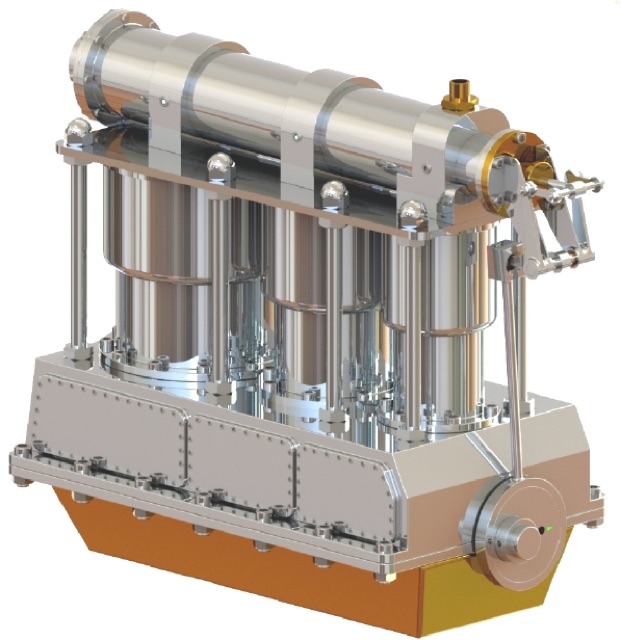

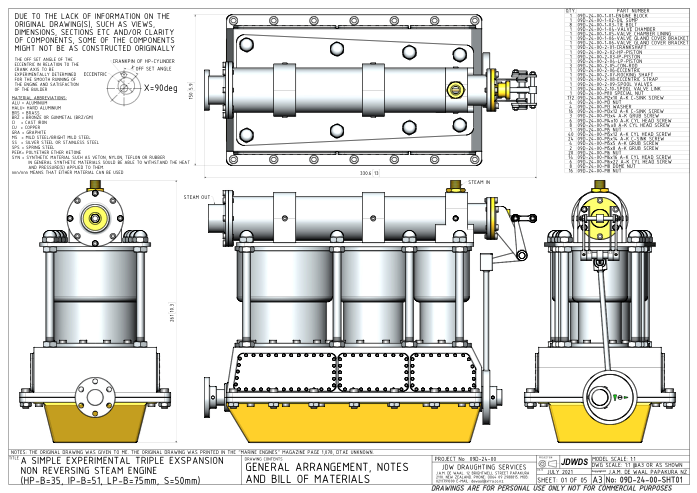

Julius’ drawings for a simple experimental triple expansion, non-reversing steam engine


Click on drawings to download.

For personal use only.

Part two here.


Although drawings reproduce well on this website, they are even better as saved downloads.


Please let the editor know if you are building one of these.
