SIMPLE HORIZONTAL STEAM MILL ENGINE
By Julius de Waal

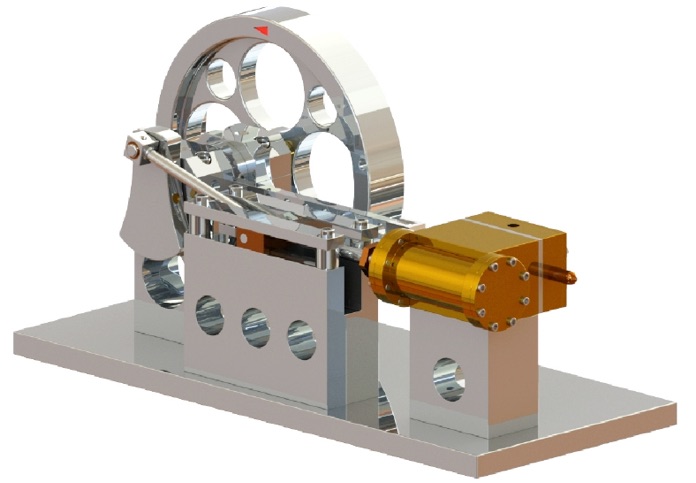

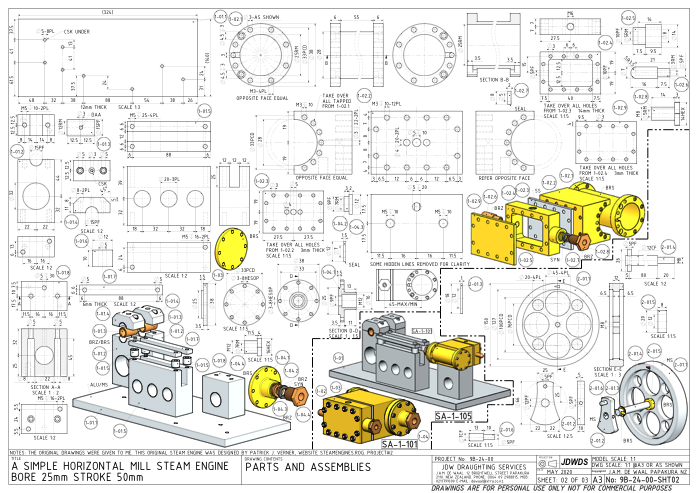

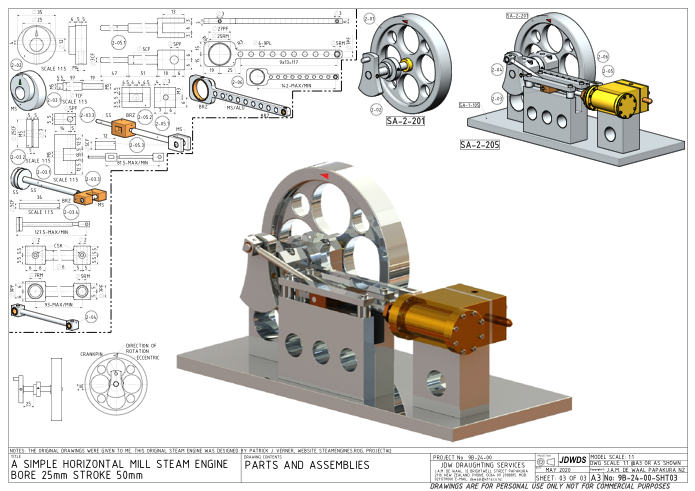

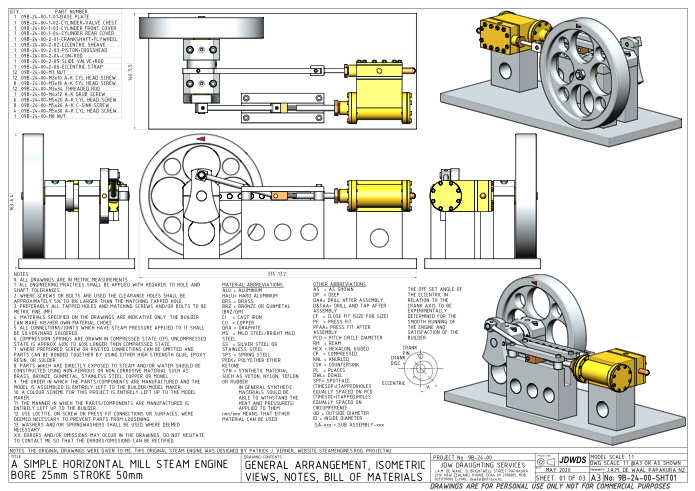

Julius’ drawings for an attractive, powerful but simple single cylinder horizontal steam mill engine.
Click on drawings to download.
For personal use only.
Although drawings reproduce well on this website, they are even better as useable saved downloads.
Please let the editor know if you are building one of these or other engines to Julius’ designs.
