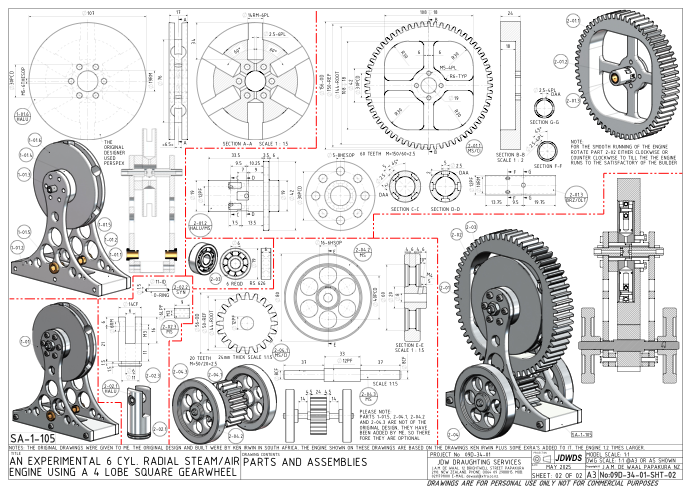

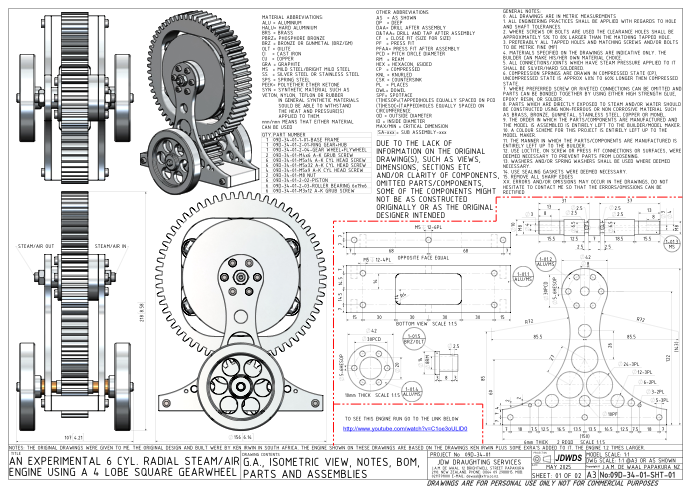

Julius’ metric drawings for a novel radial engine with  square gearwheel.

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are better as saved downloads.

As usual with Julius’ designs it is can be constructed without castings.

Please let the editor know if you are building one of these or other projects to Julius’ drawings.
