SWEET SIXTEEN TRACTION ENGINE

Part two by Julius de Waal

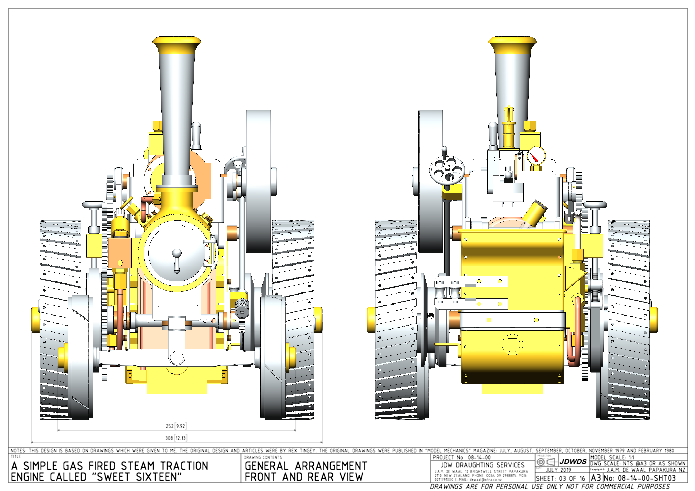

Julius’ drawings for a simple traction engine.

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.

Check first with your boiler inspector to ensure you work to an acceptable design.


Part one here Part three here
