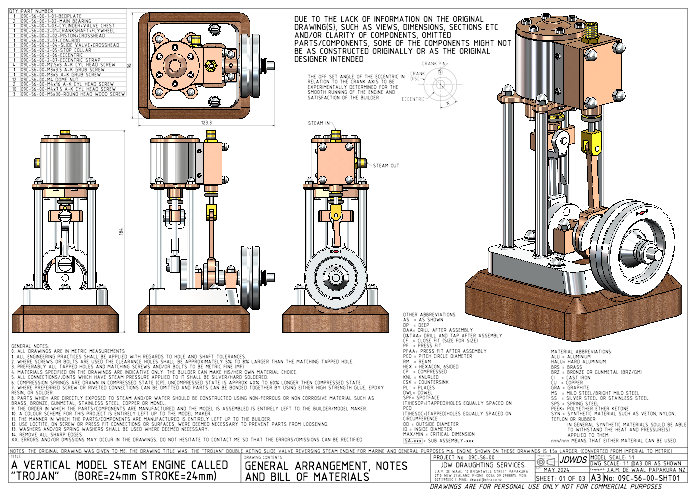

Julius’ drawings of a large version of the Trojan, slide valve, vertical steam engine made without castings..

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.

As usual with Julius’ designs it is meant for fabricated construction.

Please let the editor know if you are building one of these or other projects to Julius’ drawings.
