NEW MILLS FROM WARCO

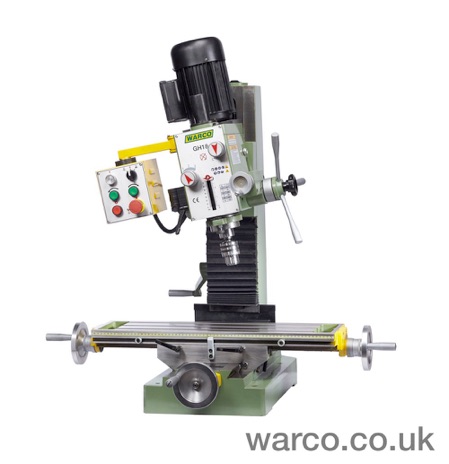

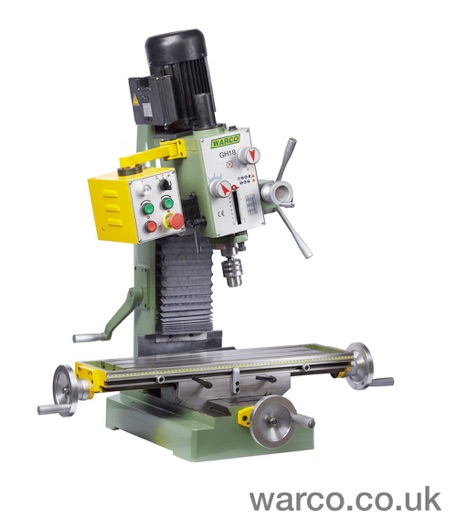

GH 18 Geared head machine

Warco has introduced a new gear head milling machine in response to customer demand for a compact machine with a geared head.

The GH 18 features:

  1. ‣Rigid construction with large section square column

  2. ‣Oil immersed steel tempered gears

  3. ‣Head elevates on dovetail slide ways allowing positive location over entire travel

  4. ‣Tapered gibs on all axes

  5. ‣Rack and pinion drill feed

  6. ‣Calibrated fine feed

  7. ‣Tilting head, calibrated 45º 0 45º

  8. ‣Positive quill depth stop

  9. ‣Forward and reverse

  10. ‣Powerful 1 hp motor

  11. ‣Table locks to X and Y travel

  12. ‣Supplied with 13mm drill chuck

  13. ‣700 x 190mm table

 Available in metric and imperial, priced £1365 inc VAT and mainland UK delivery.

More details here.



WM 16B Belt driven machine


The Surrey firm has also introduced a belt drive machine, the Warco WM 16B. With traditional belt drive system, this machine has all the updated benefits of the dovetail column associated with gear headstock mills. It has a Poly V-belt drive for positive smooth vibration free operation and a low speed belt setting from maximum torque in the low speed range.

Features include:

  1. ‣Variable speed

  2. ‣Brushless motor

  3. ‣Rack and pinion drilling action

  4. ‣Head elevates on two dovetail slideways

  5. ‣Rigid square column

  6. ‣Friction fine feed with digital metric/imperial depth gauge

  7. ‣Adjustable gibs to all axes

  8. ‣Table locks to X and Y axes

  9. ‣Head tilts 45º in either direction

  10. ‣Rev. counter with large easy to read digits

  11. ‣Supplied with 13mm drill chuck

  12. ‣Forward and reverse

  13. ‣Powerful 1kw motor

  14. ‣Two belt settings for maximum torque in the low speed range

  15. ‣ Table size 700 x 180mm

 Available in metric and imperial, priced £1250 inc VAT and mainland UK delivery.

More details here.
