5” GAUGE BR STANDARD CLASS 4 2-6-0 TENDER LOCO Part 3/4 by Doug Hewson

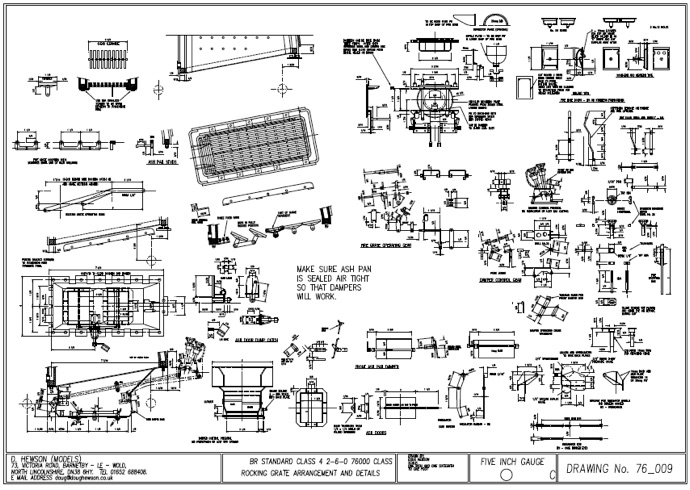

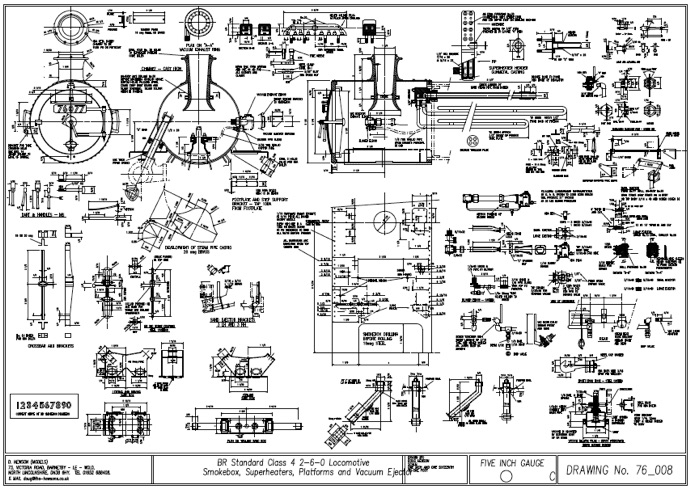

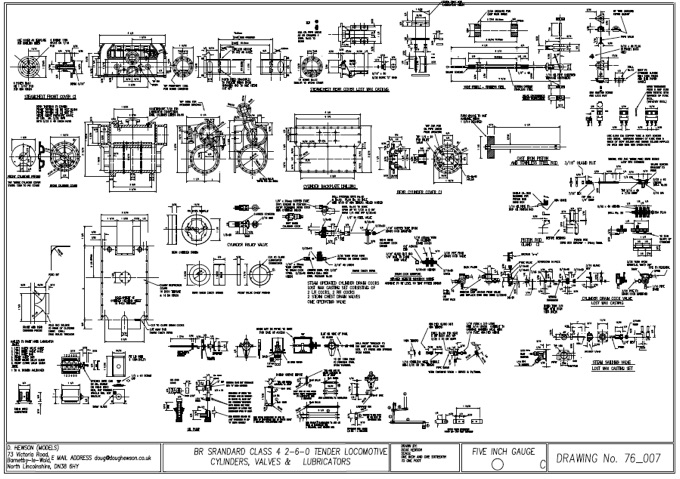

To view these drawings, download the pdfs, magnify, and frame the area required. For workshop use, send files to a plan printer for printing on paper in the appropriate size.


Part one here.  Part two  Part three  Part four.

Part 3/4 by Doug Hewson
