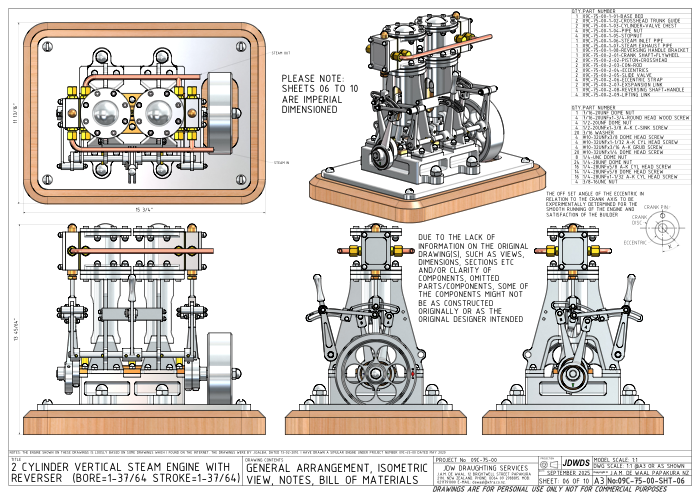

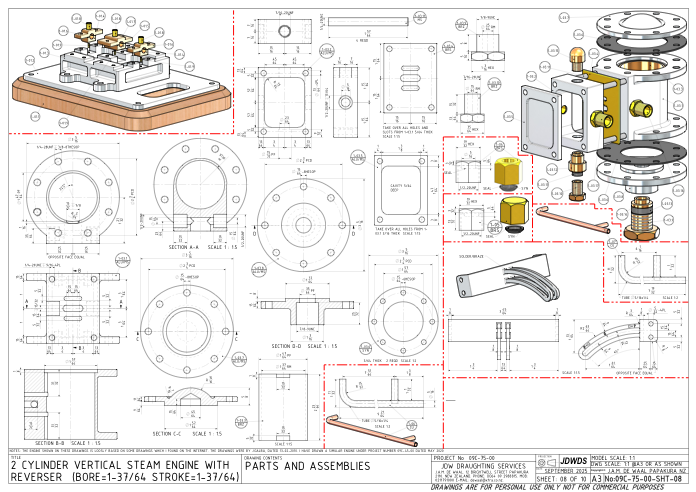

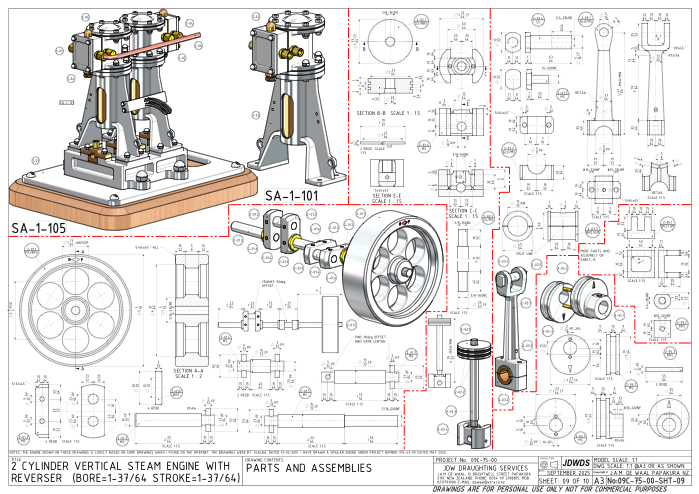

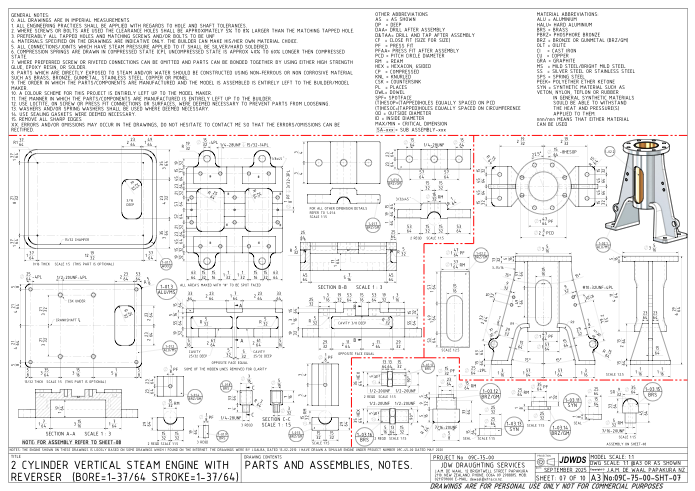

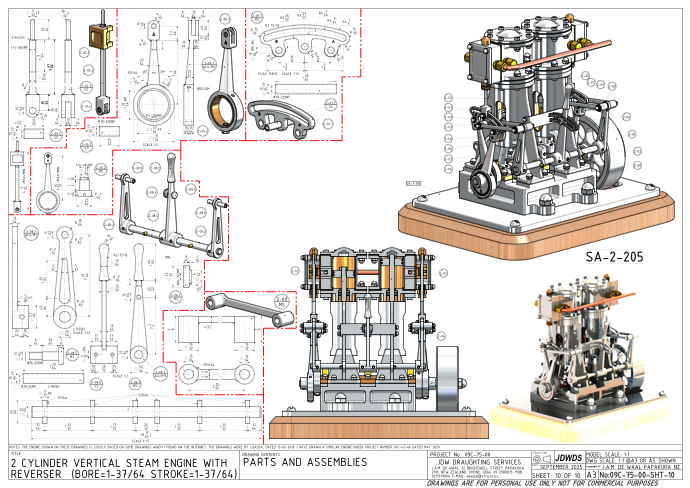

Julius’ imperial drawings for a large, powerful two cylinder vertical reversing steam engine.

Metric version here,

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are better as saved downloads.

As usual with Julius’ designs it can be constructed without castings.

Please let the editor know if you are building one of these or other projects to Julius’ drawings.
