CLYDESDALE ROLLING MILL ENGINE

By Julius de Waal

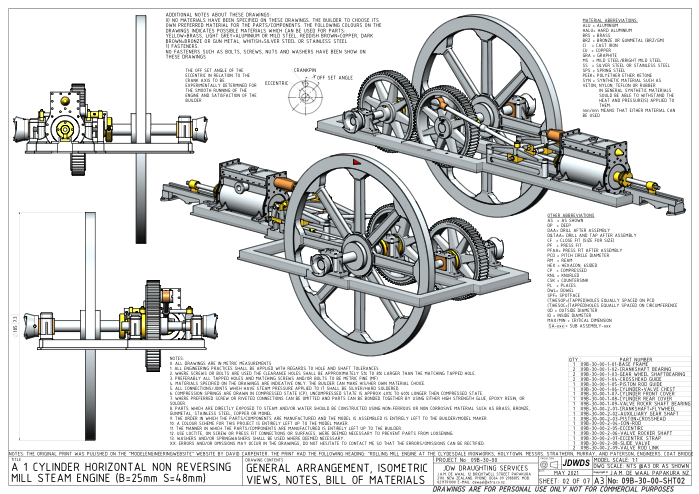

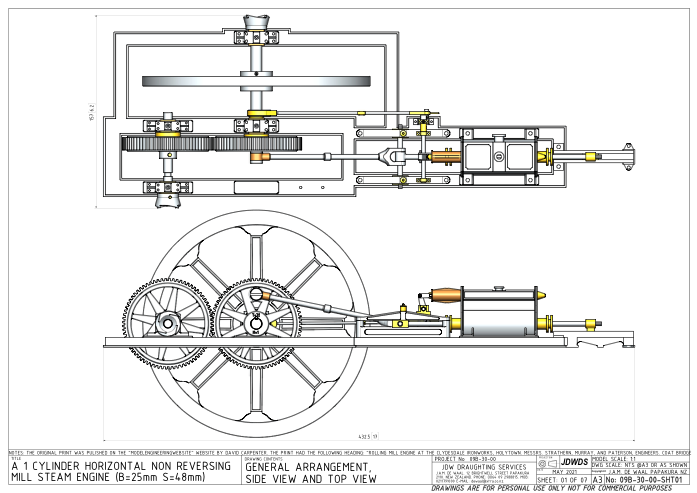

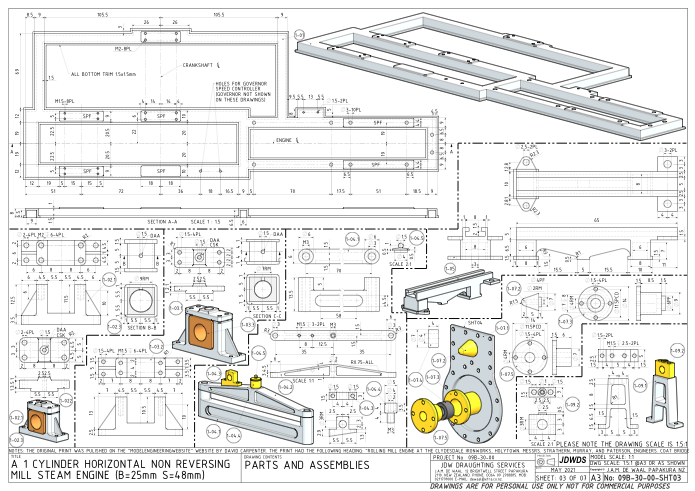

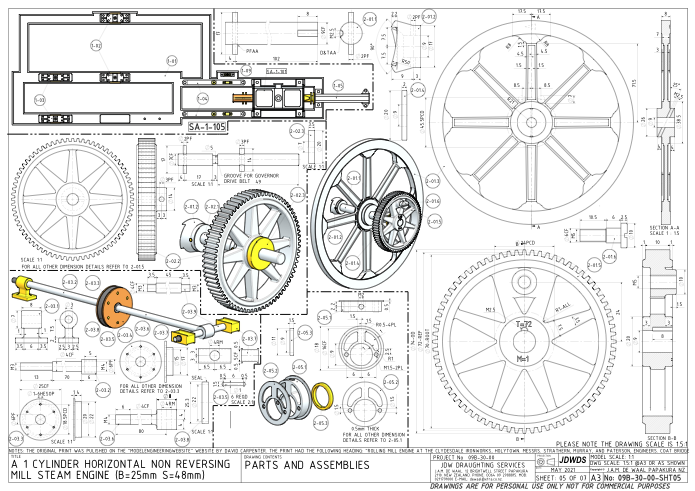

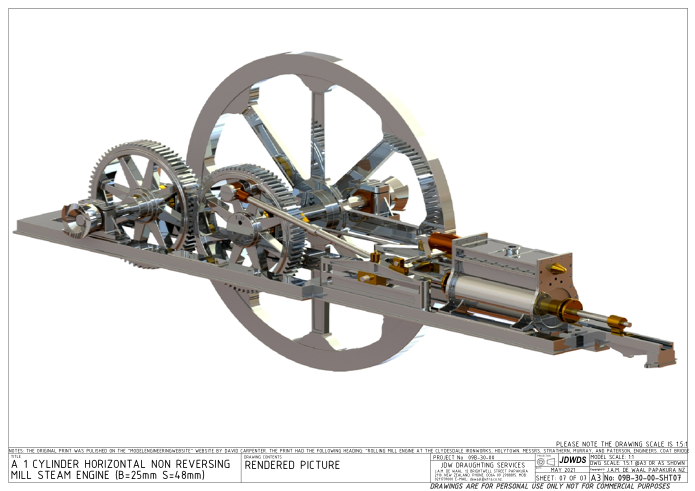

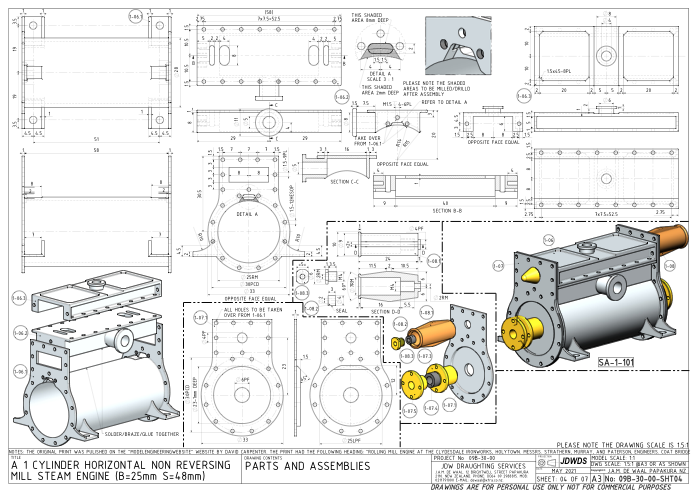

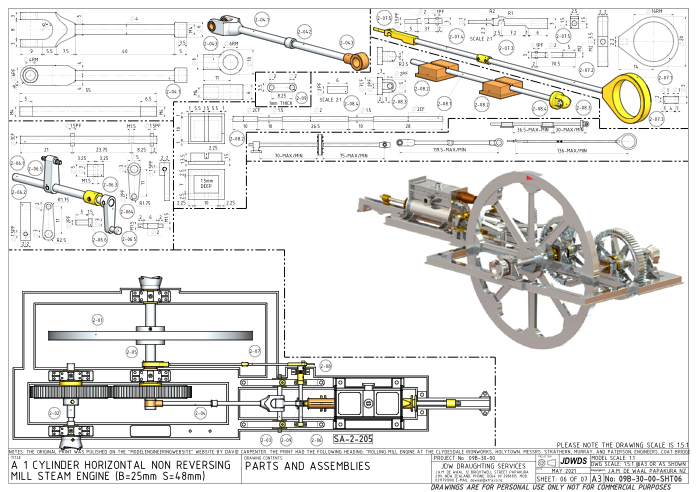

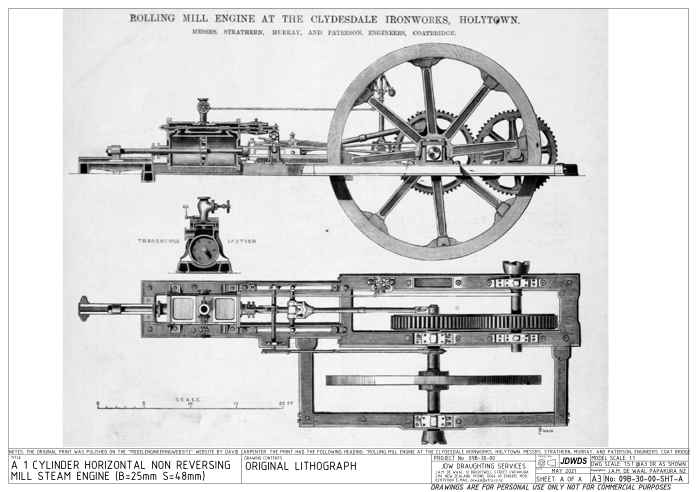

Julius’ drawings for a project to build a model of the Clydesdale rolling mill engine from the archive and featured in these pages.

Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.

Please contact the editor if you decide to build one of these.
