MINIATURE TWIN STEAM ENGINE

By Chris Putt

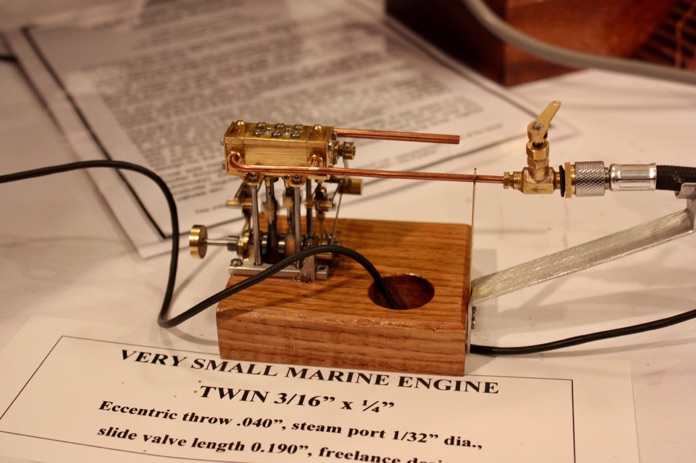

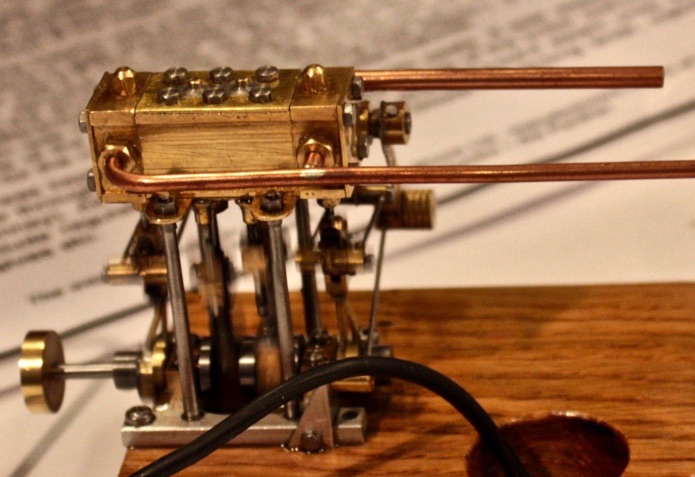

Miniature freelance design twin cylinder marine steam engine featuring working Stephenson’s reversing gear.

Cylinders are 3/16” dia x 1/4” stroke.

Eccentric throw 0.040”

Steam port 1/32” dia

Slide valve length 0.190”
