COMPOUND CONDENSING STEAM ENGINE

Part 2/2 by Julius de Waal

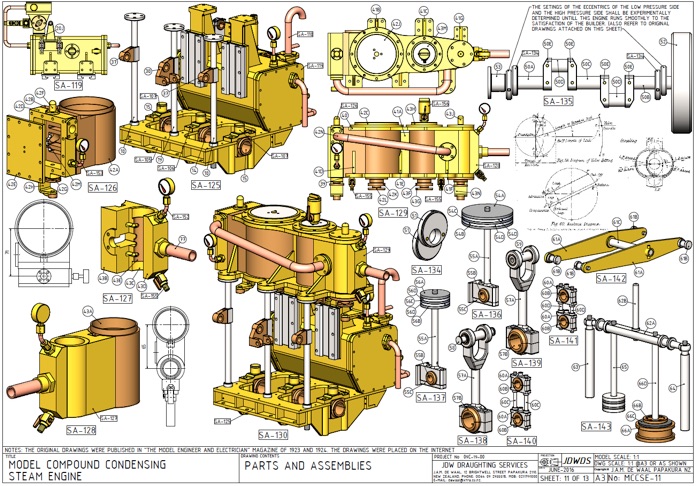

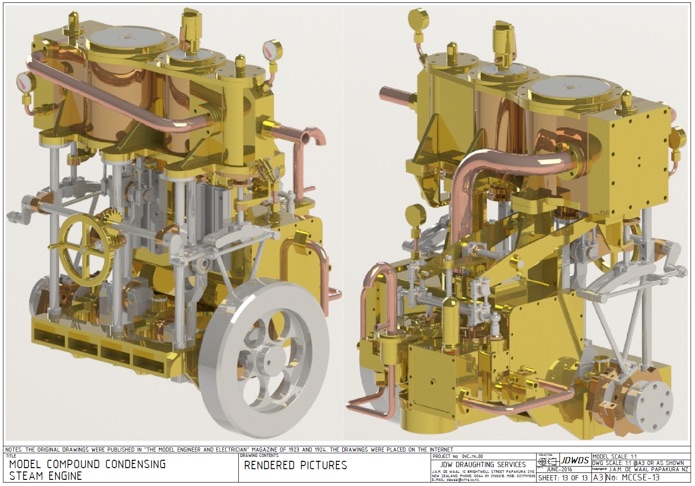

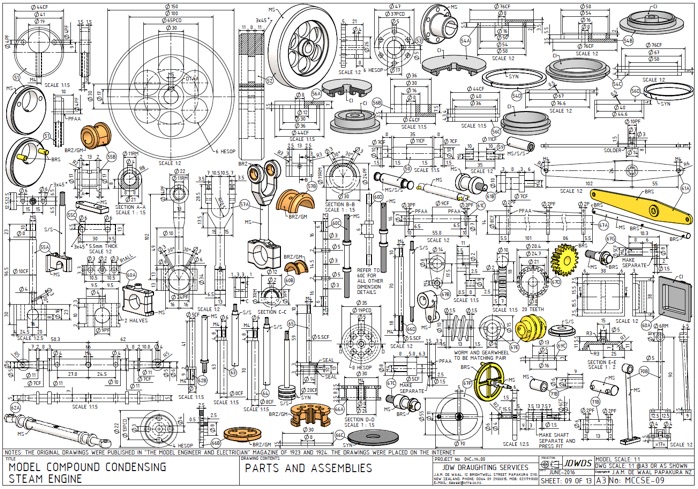

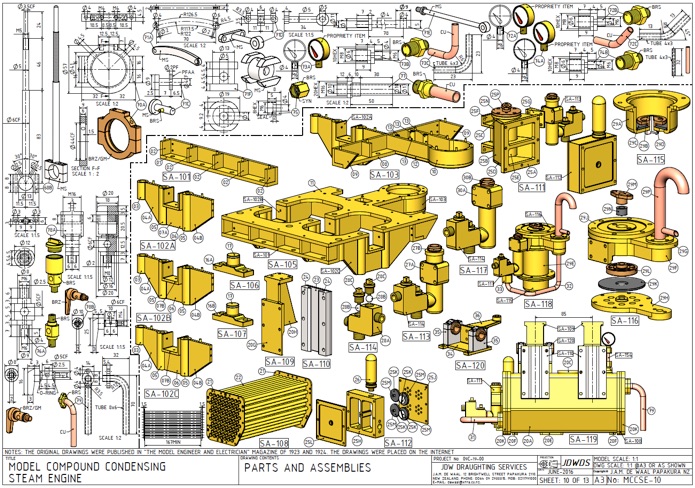

Here is the great video and a set of drawings for the compound condensing launch steam engine built by Rafel Ayensa, described here.


Click on drawings to download.

For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.

Part one here.
