EXPERIMENTAL DIRECT CONNECTED ENGINE

By Julius de Waal

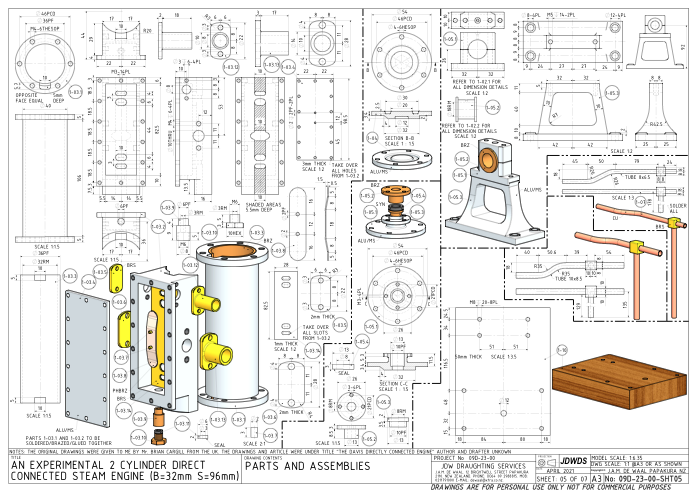

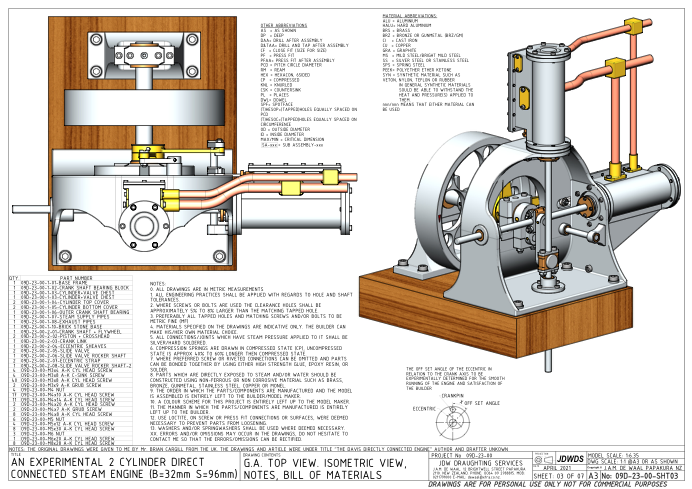

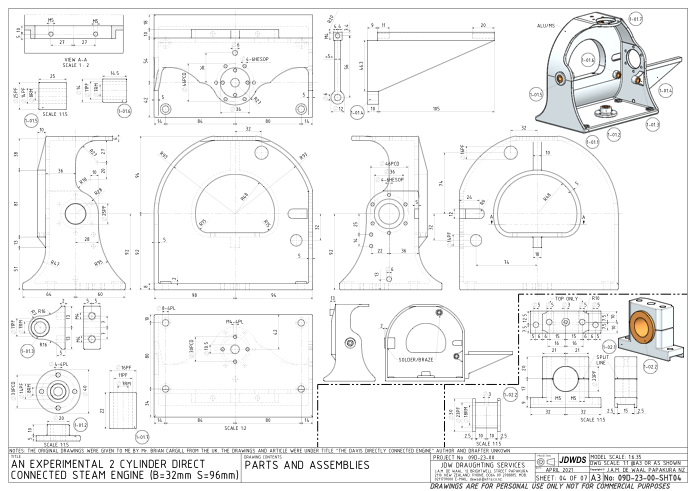

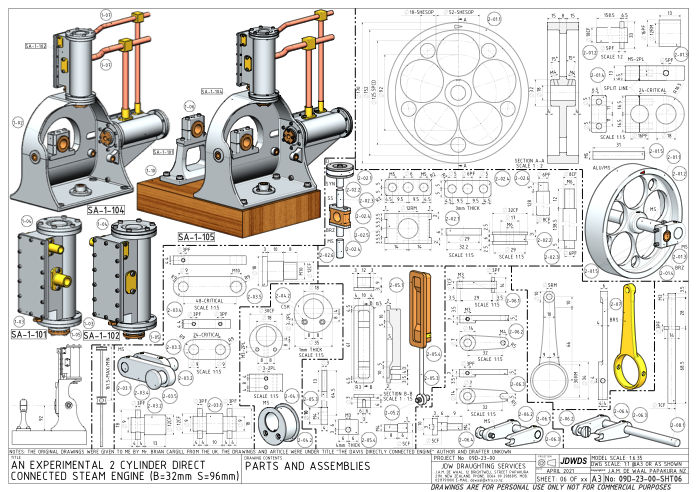

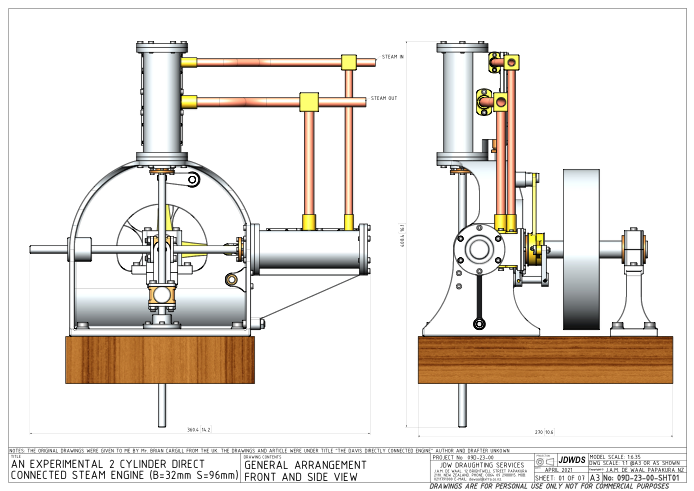

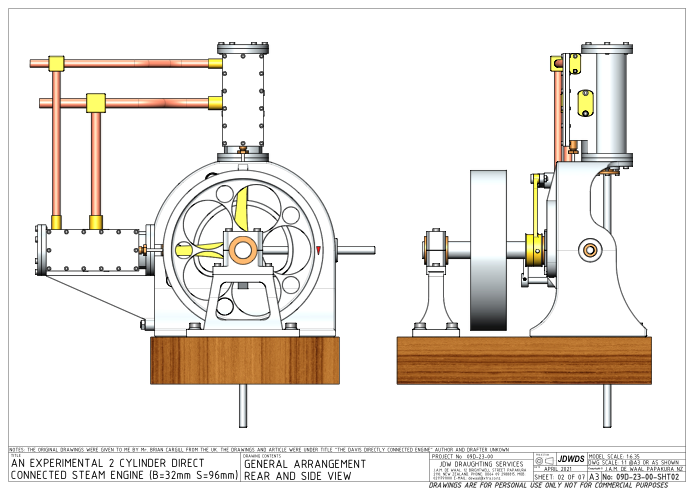

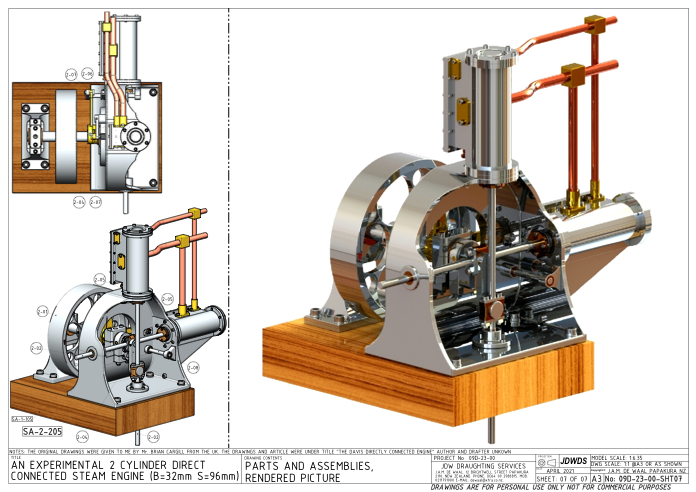

Julius’ drawings for an experimental two cylinder direct connected steam engine.


Click on drawings to download.

For personal use only.


Although drawings reproduce well on this website, they are even better as saved downloads.
