GAS-FIRED BOILER FOR MARINE OR GENERAL USE

By Julius de Waal

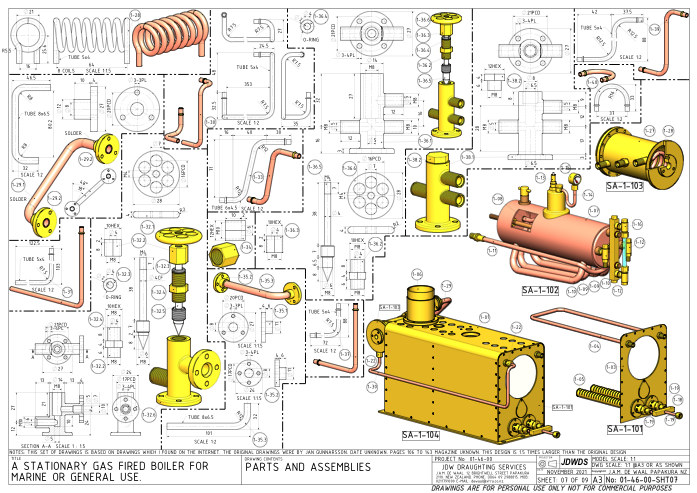

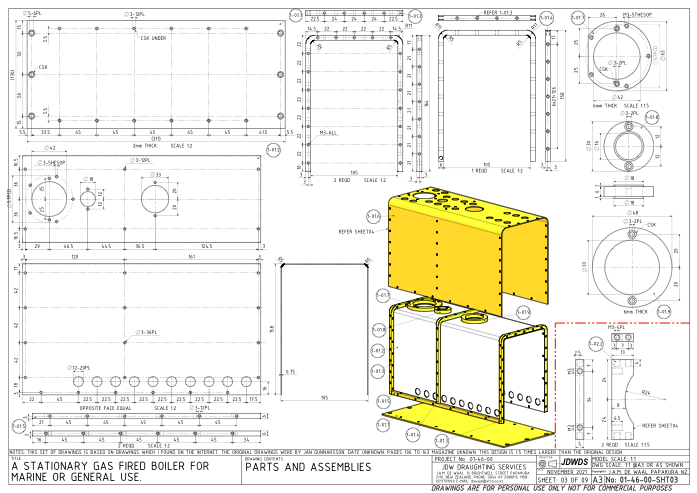

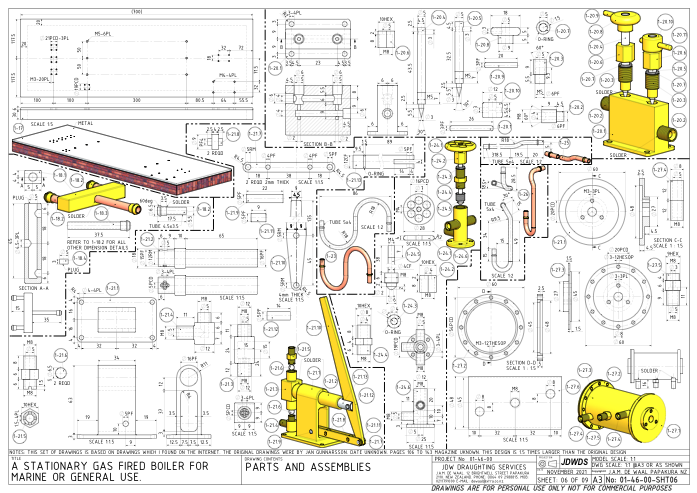

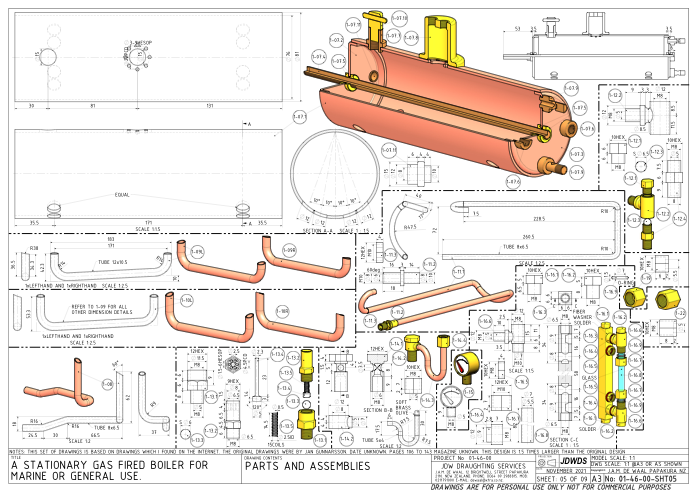

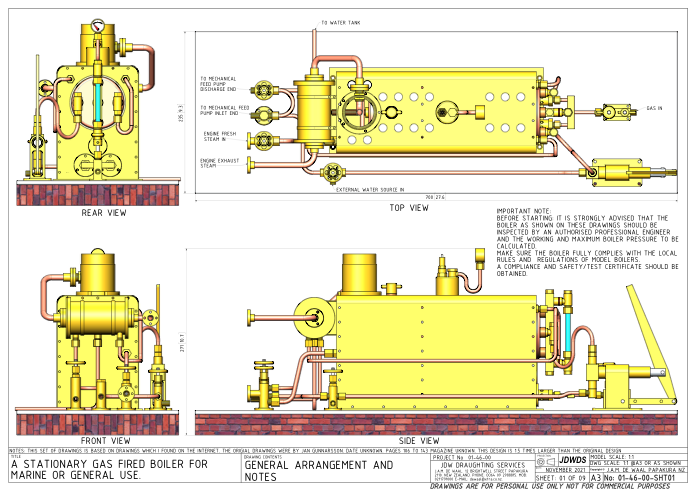

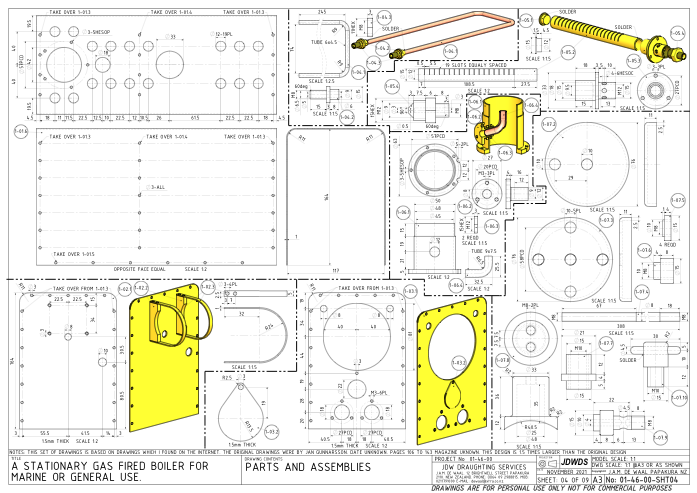

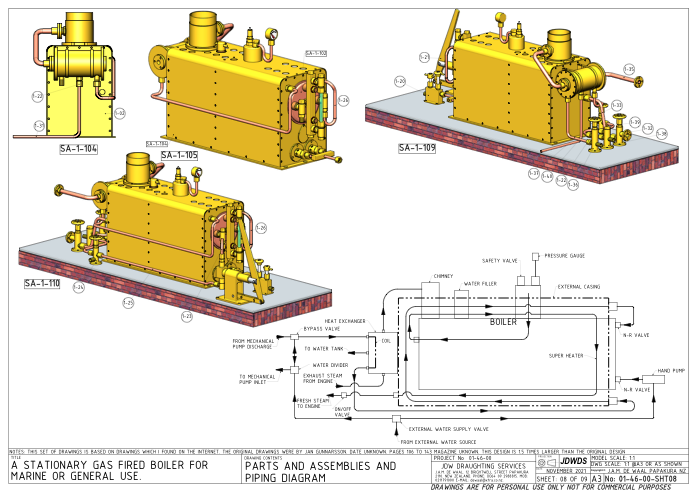

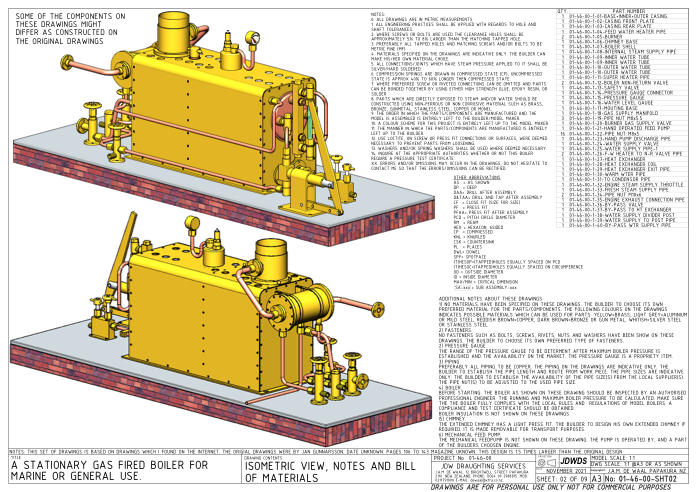

Julius’ drawings for a super multi-purpose boiler for a special project.


Click on drawings to download.

For personal use only.


Although drawings reproduce well on this website, they are even better as saved downloads.


Before starting work on a boiler, always check the design etc with a boiler inspector.


Please let the editor know if you are building one of these or other engines to Julius’ designs.
