SIMPLE SLIDE CRANK STEAM ENGINE

By Julius de Waal

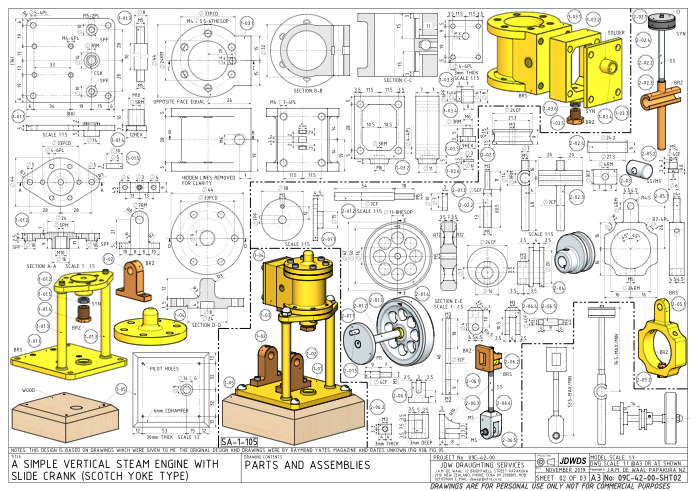

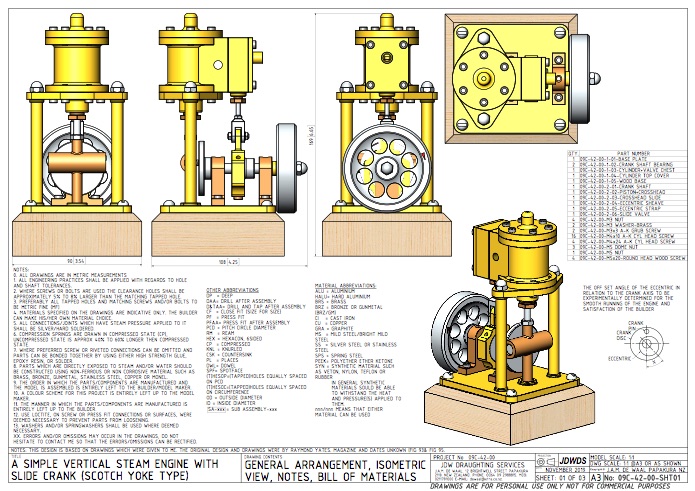

Julius’ drawings for a simple vertical steam engine with a Scotch yoke  type slide crank.


Click on drawings to download.

For personal use only.


Although drawings reproduce well on this website, they are even better as useable saved downloads.


Please let the editor know if you are building one of these or other engines to Julius’ designs.
