B HICK & SON

OSCILLATING ENGINE

By Julius de Waal

B. Hick and Son exhibited engineering models and machinery at The Great Exhibition, including a 6 HP crank overhead engine and a 2 HP high-pressure oscillating engine driving a Ryder forging machine. Both engines were in the Egyptian style. The company received a Council Medal award for its mill gearing, radial drill mandrils and portable forges.

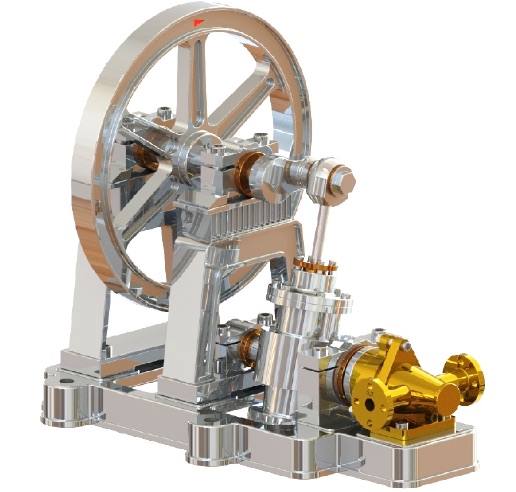

Julius revisits the model engine design in metric and to larger scale.

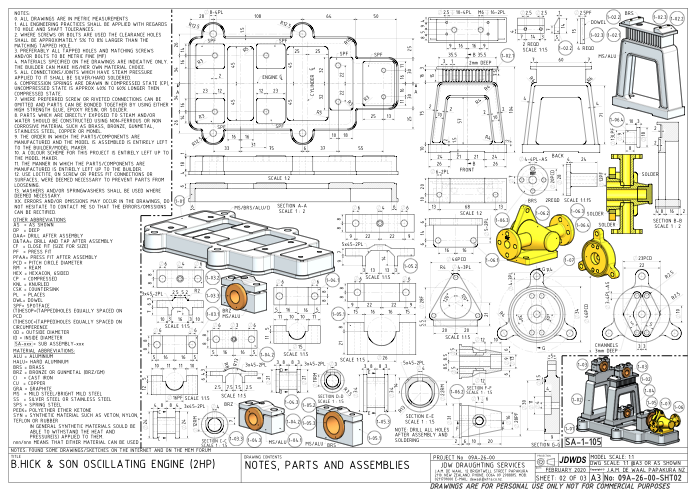

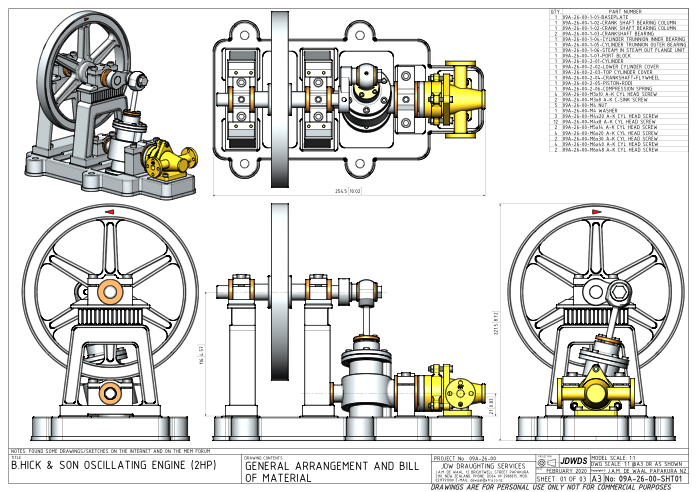

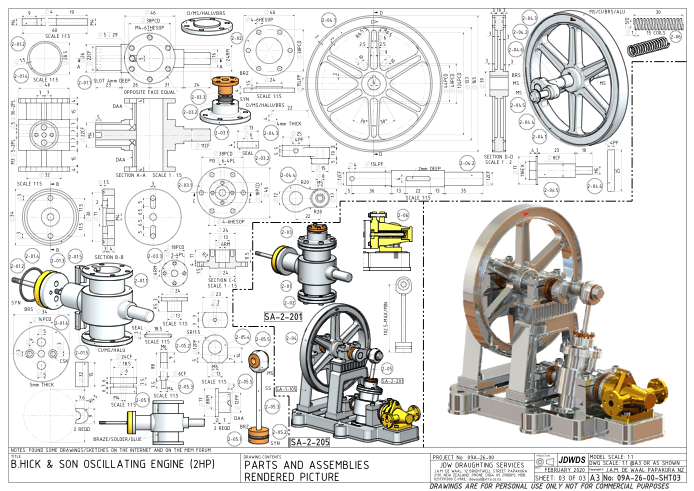

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
