B HICK & SON OVERHEAD CRANK STEAM ENGINE
Part 1/2 by Julius de Waal

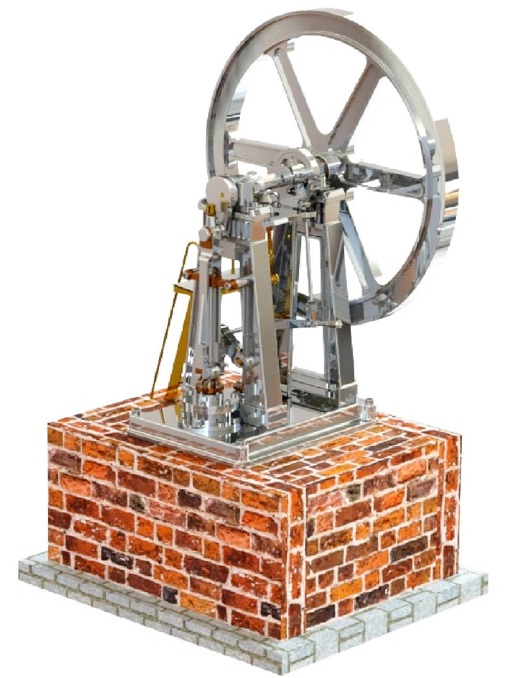

Latest from Julius is this neat overcrank engine which lends itself to a mainly fabricated construction, although the flywheel will be too large for many workshops with a suitable castings.

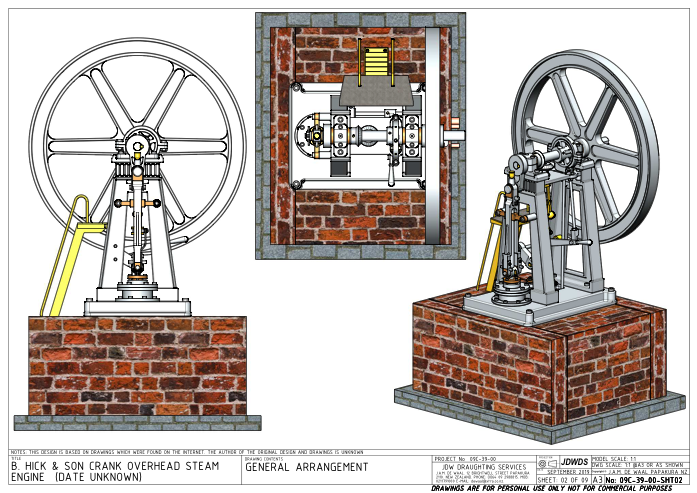

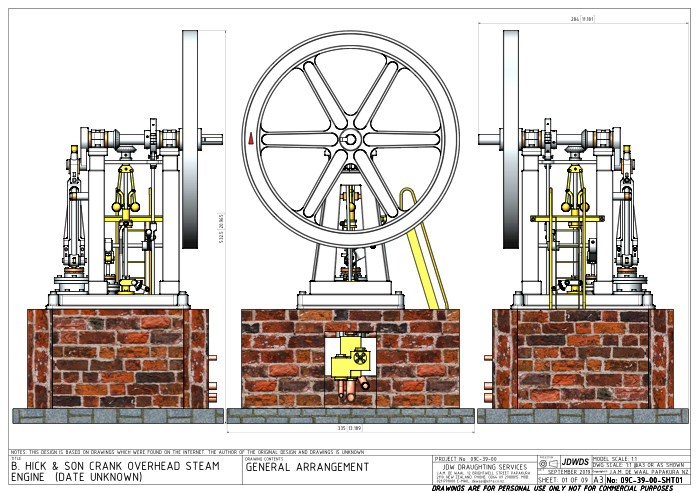

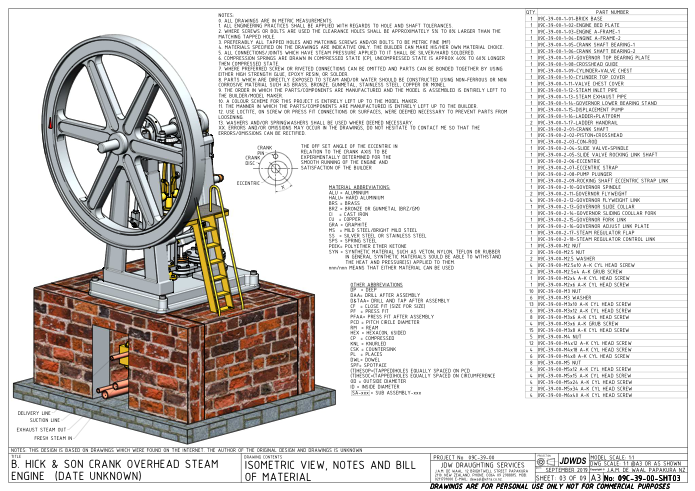

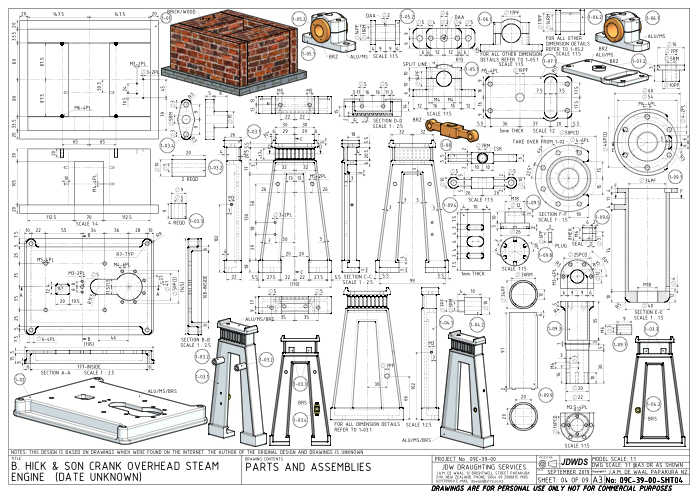

Click on drawings to download. For personal use only.
Although drawings reproduce well on this website, they are even better as saved downloads.
