STEAMPUNK FANTASY 3-D PRINTED IRON GIANT
By Julius de Waal

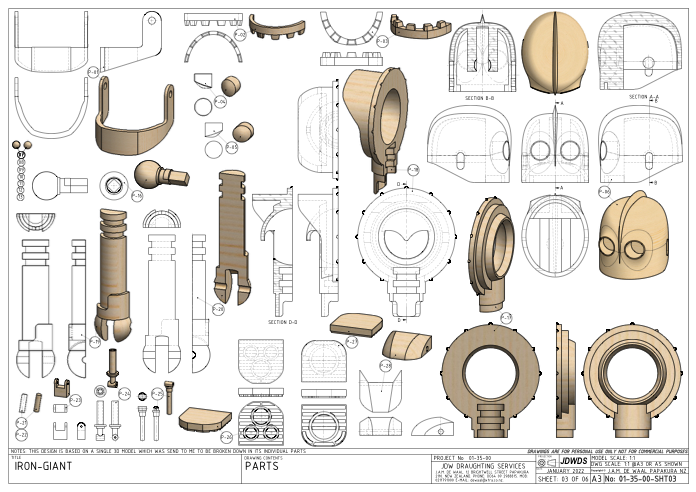

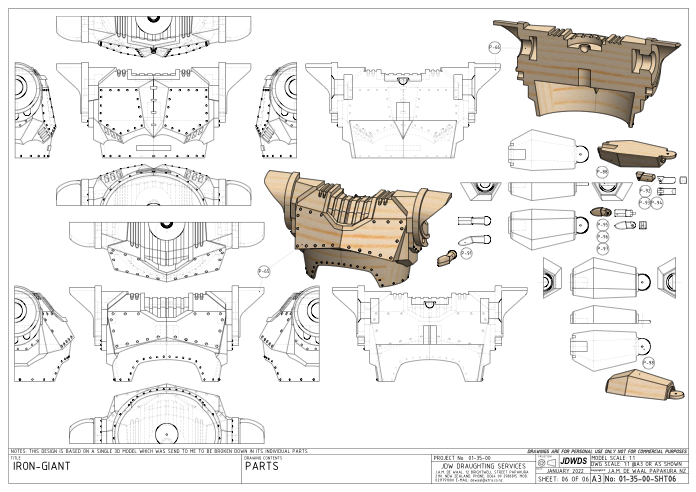

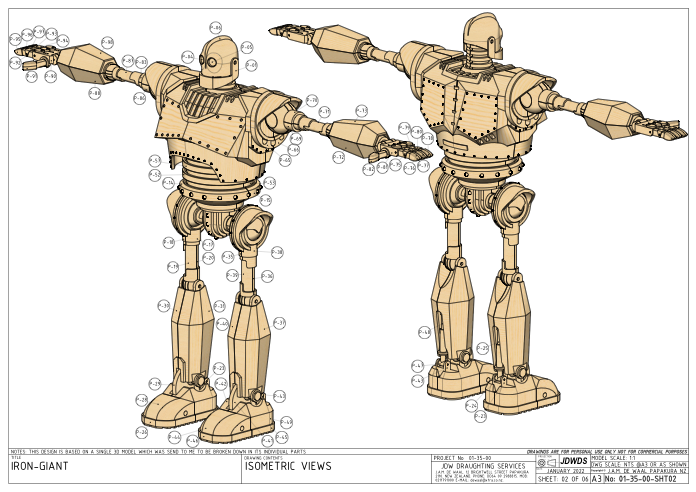

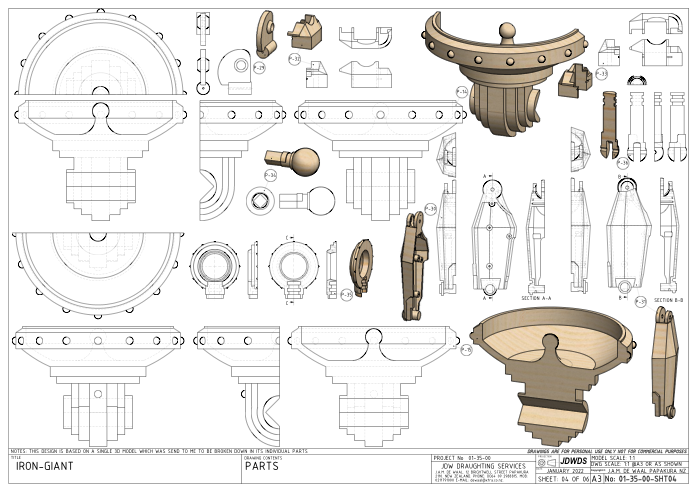

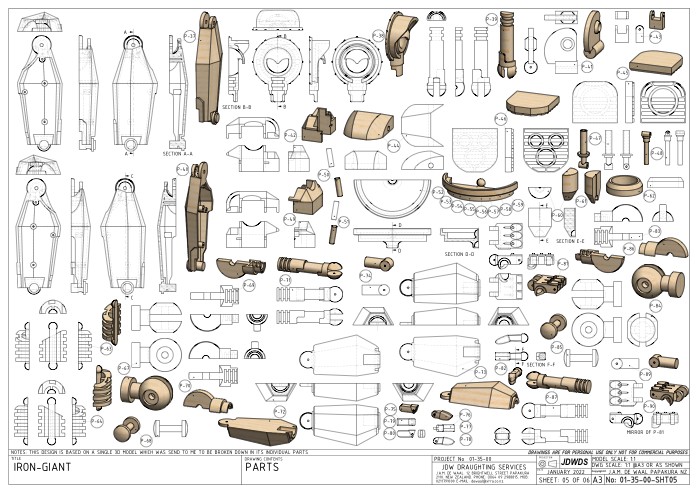

A rare project for MEWS in that the 2D drawings do not have any dimensions and it is a 3-D printing project rather than machining. The drawings are there to show the components for anyone who would like build the project using 3D printing.
Please ask if you would like different platforms (file extensions) for the 3D printing.
Click on drawings to download.
For personal use only.
Although drawings reproduce well on this website, they are even better as saved downloads.
Please let the editor know if you are building one of these or other projects to Julius’ designs.
