LBSCR STROUDLEY TERRIER IN 5” GAUGE
Part 6/6 by Julius de Waal
Julius’ metric drawings, After Martin Evans, for another great project: the Stroudley Terrier of the London Brighton & South Coast Railway. Imperial drawings and castings (which might be useful for a metric version) are available elsewhere, although Julius’ designs are all designed to be fabricated. Build instructions (imperial) were published in Model Engineer 1963-64.
Click on drawings to download.
For personal use only..
Although drawings reproduce well on this website, they are even better as saved downloads.
PART ONE HERE PART TWO PART THREE PART FOUR FIVE
Please let the editor know if you are building one of these or other projects to Julius’ drawings.

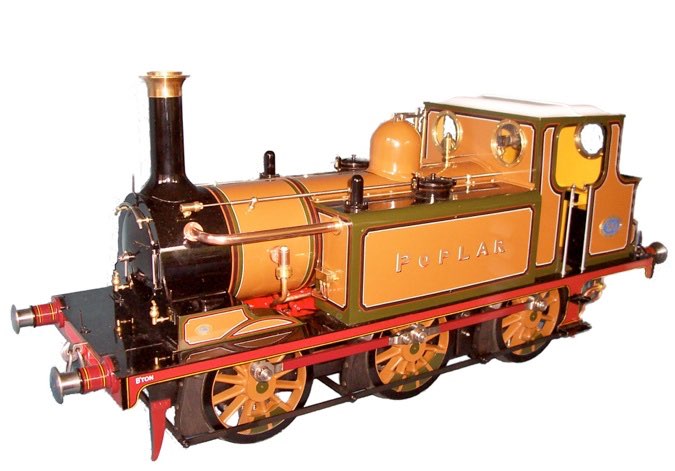

The photo above is of the fine Terrier built by the late Norman Barber.
